Industrial Φ16×60mm multi-wavelength laser diode module, available in 650nm Red / 520nm Green / 450nm Blue / 405nm Violet, with output power options from 1mW to 50mW (higher on request).

Built with a focus-adjustable collimating glass lens and APC constant current driver inside a black anodized aluminum housing. Ideal for industrial alignment, positioning, stage lighting, machine vision, and OEM integration requiring a standardized 16mm-diameter form factor.

Description

Point infrared 16mm 650nm external red modulation laser 520nm450nm405nm laser module with locking ring

Specifications

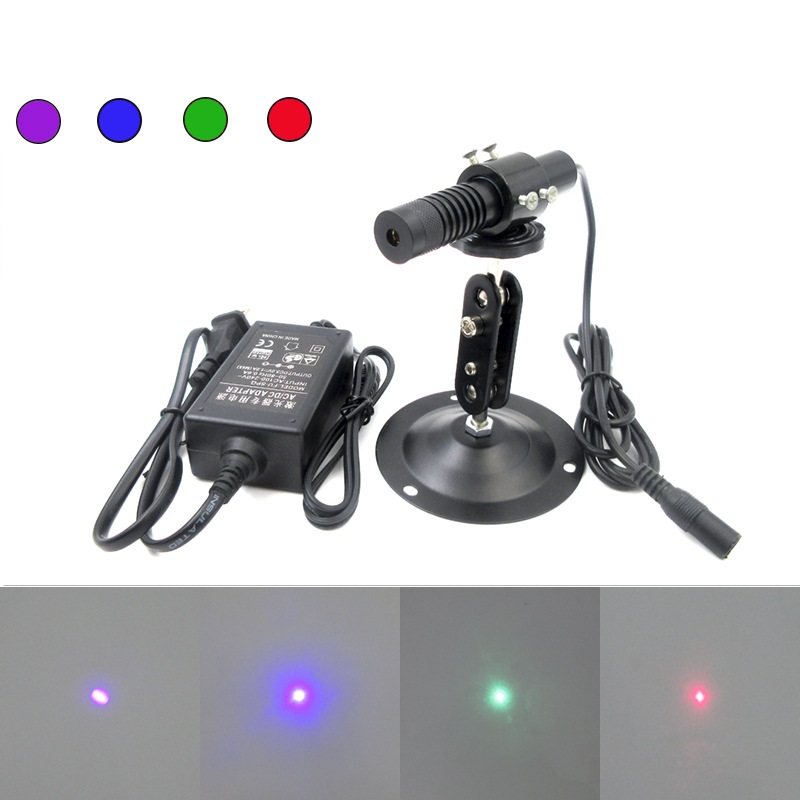

Wavelength Options:
- 650nm ±10nm (Red, most common)
- 520nm ±10nm (True Green Diode)
- 450nm ±10nm (True Blue Diode)
- 405nm ±10nm (Violet / Near-UV)
Output Power: 1mW / 5mW / 10mW / 30mW / 50mW (model dependent; Class II–IIIb)
Beam Pattern: Dot (default) — Line / Cross optional

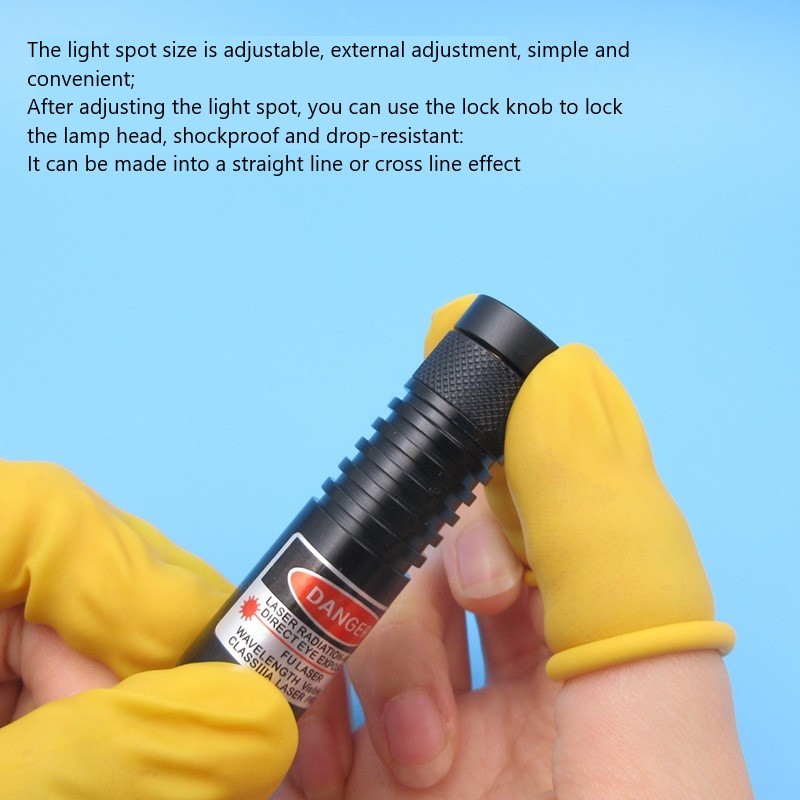

Lens: Multi-coated Optical Glass Collimating Lens (focus adjustable via front cap)
Operating Voltage: DC 3V–5V (typical 3.3V/5V; 12V optional with driver)
Operating Current: <30mA (low power) – <200mA (high power green/blue)
Spot / Line Width: Adjustable (≤1.0mm @ 1m typical)

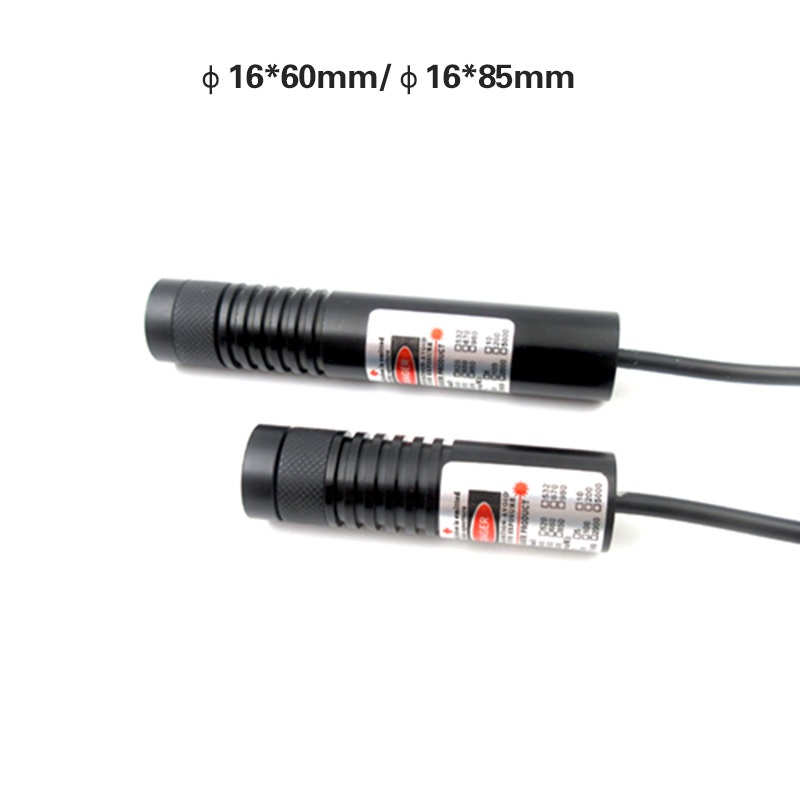

Housing: Φ16×60mm Black Anodized Aluminum (ESD & reverse polarity protected)
Lead Wire: Red(+)/Black(−) 100–150mm or JST connector (optional)
Working Temp.: -10°C to +50°C
Lifetime: >8,000 hrs
Custom Options: Power, pattern (dot/line/cross), fan angle, voltage, wire & connector, focus lock, potting (IP65)

Applications

Industrial machine alignment & positioning reference
Laser level, measuring tool & layout marking
Stage lighting / Special effect multi-color point source
Machine vision & optical experiment reference
DIY electronics, Arduino / Raspberry Pi projects
OEM integration in compact instruments & equipment
