Description

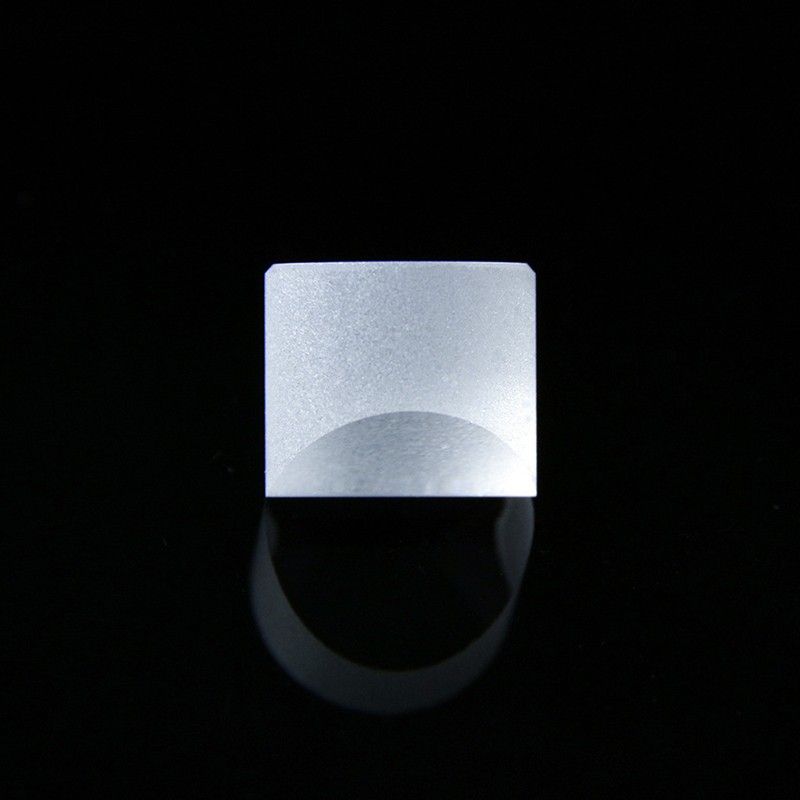

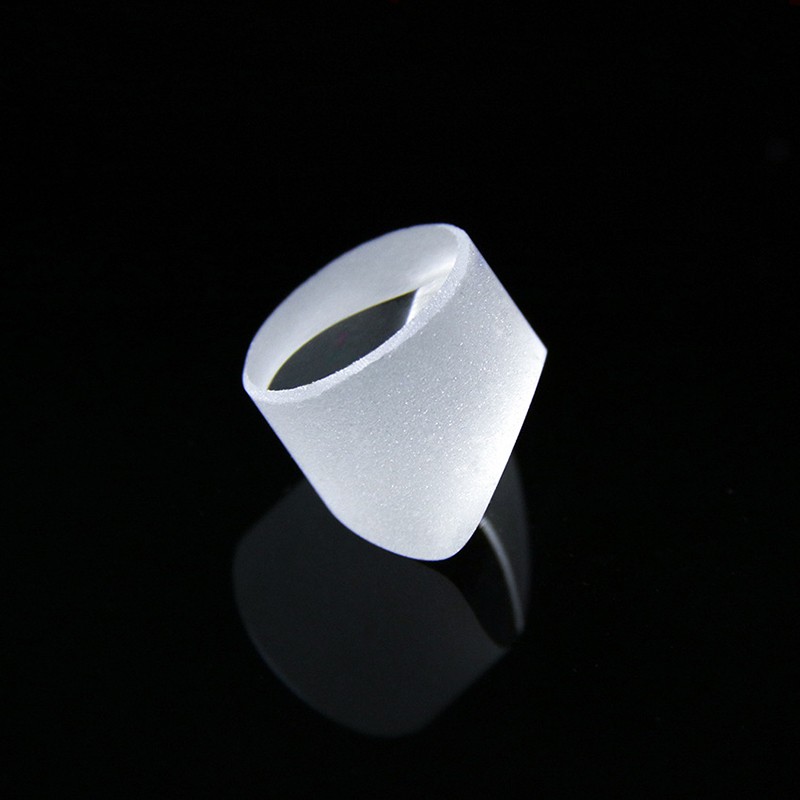

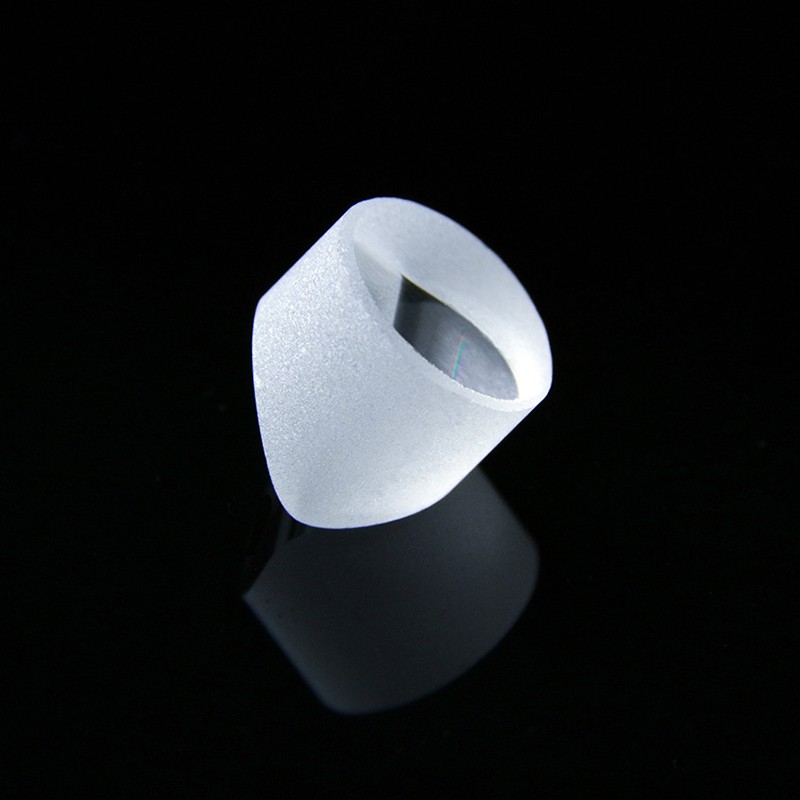

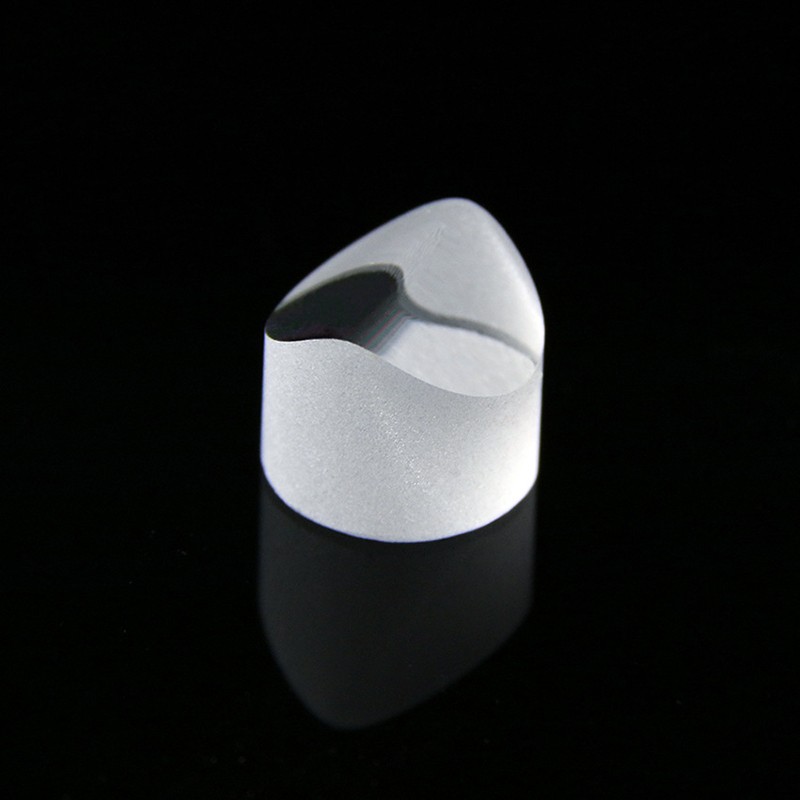

Custom Powell Prisms for High-Precision Laser Line Generation
Specifications
- Material: Optical Glass (BK7, LAK7/K9, or Customized Materials)
- Wavelength Range: 405nm – 1064nm (Customizable)
- Fan Angle: 5° – 120°
- Diameter: 5mm – 25mm
- Surface Quality: 60-40 Scratch-Dig or Better
- Surface Accuracy: λ/4 @ 632.8nm
- Coating Options: AR Coating, Broadband AR Coating, Custom Coatings
- Angle Tolerance: ±0.1° to ±0.5°
- Custom Designs Available
Features
- Generates highly uniform laser lines
- Excellent energy distribution across the entire line
- High optical transmission efficiency
- Compact and durable design
- Suitable for visible, UV, and infrared laser systems
- Custom fan angles and wavelengths available
Optical Coating Options
To improve transmission efficiency and ensure stable laser performance, Changchun Realpoo provides customized optical coatings for different wavelength applications.
Anti-Reflection (AR) Coating
Reduces surface reflection and improves laser transmission efficiency.
Broadband AR Coating
Suitable for multi-wavelength optical systems requiring wide spectral performance.
Custom Laser Coating
Optimized for specific laser wavelengths and high-performance applications.
Available coating wavelengths include:
- 405nm
- 450nm
- 520nm
- 635nm
- 650nm
- 808nm
- 980nm
- 1064nm
