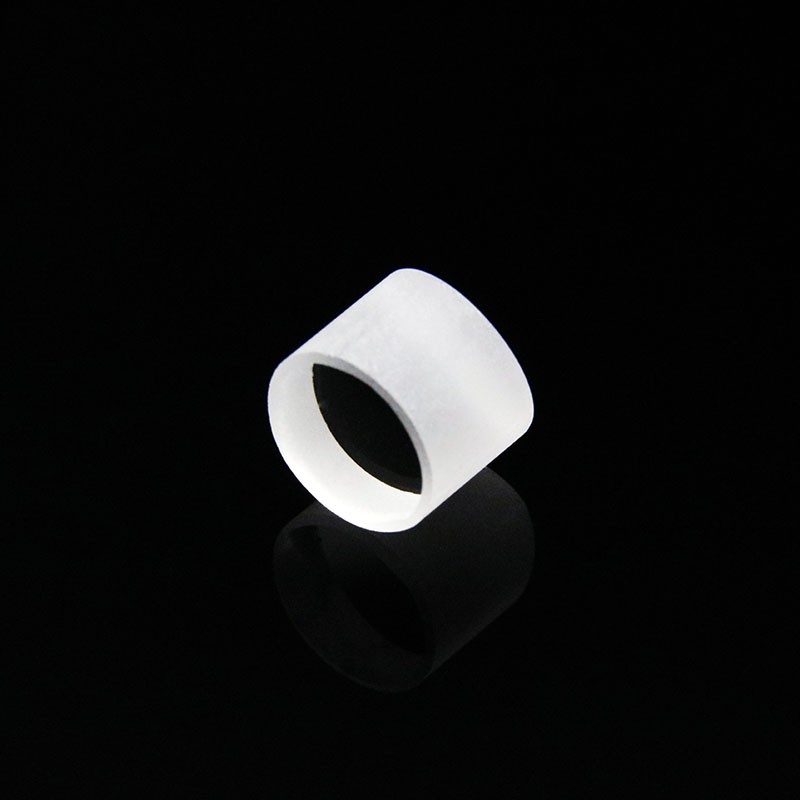

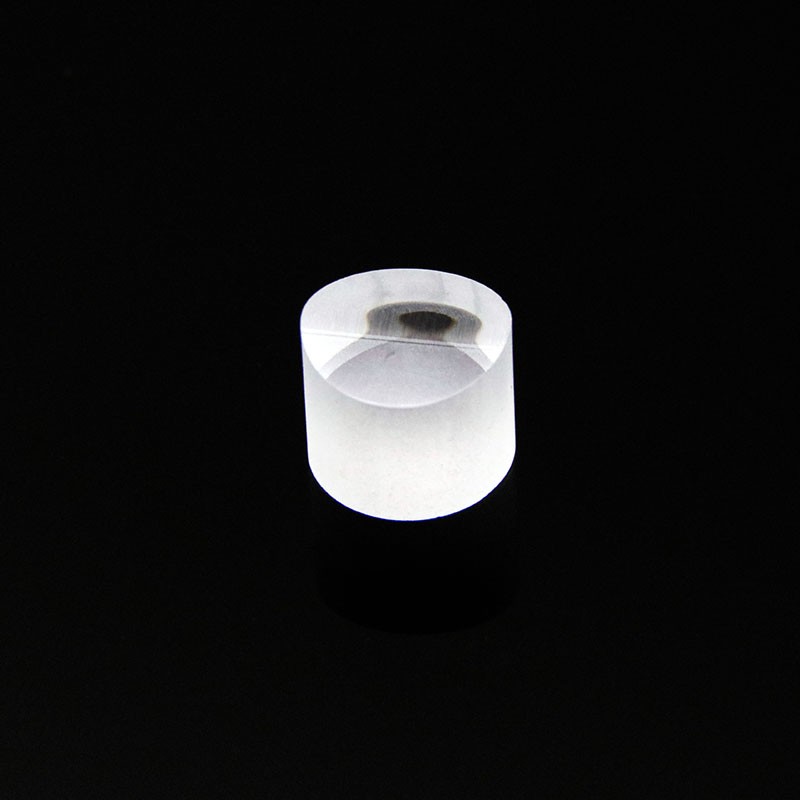

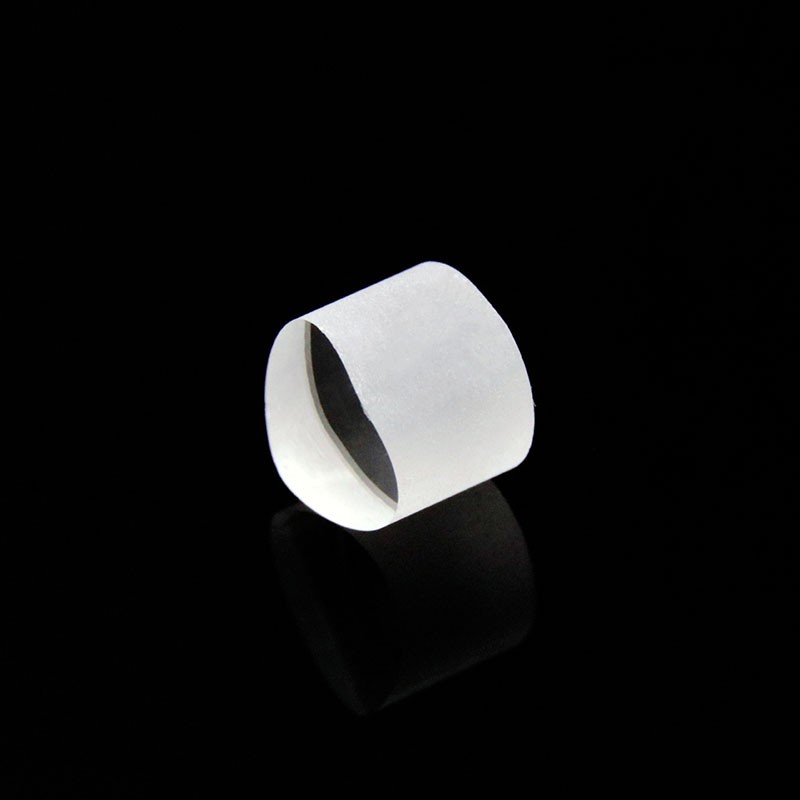

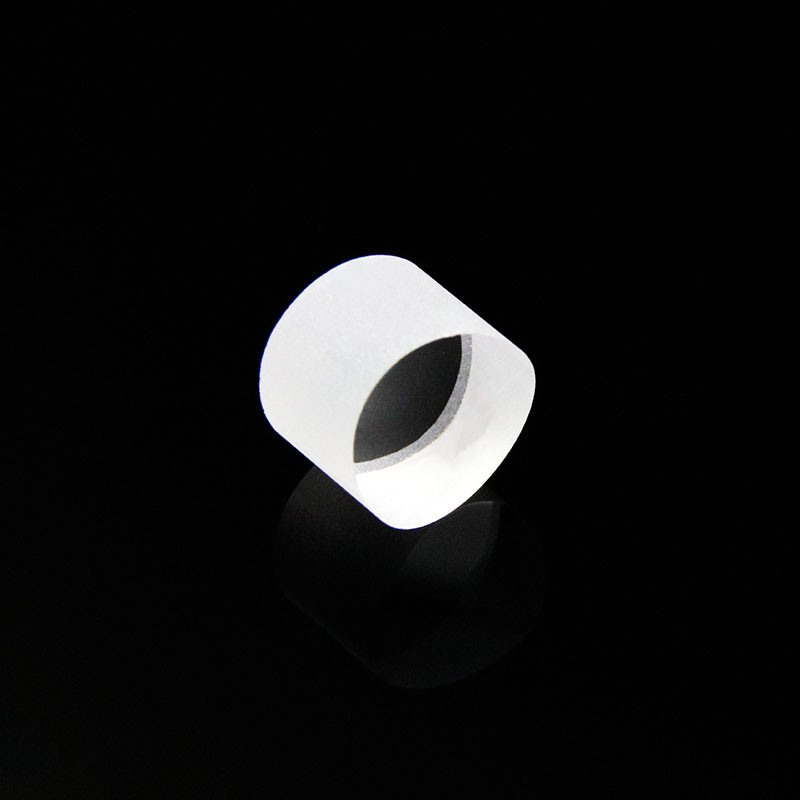

15 degrees 9mm diameter Powell prism Laser Alignment Lens

15 degrees 9mm diameter Powell prism Laser Alignment Lens

15 degree Powell prism

9mm glass optical prism

Machine Vision Optics

Laser Alignment Lens

Optical Powell prisms are essential beam-shaping components used in modern laser systems.

By redistributing laser energy evenly along a projected line, they create significantly better line uniformity than conventional cylindrical optics.

Manufactured with high-quality optical glass and precision polishing technology, our Powell prisms support applications including 3D imaging, laser triangulation, dimensional measurement, and automated production line inspection.

Description

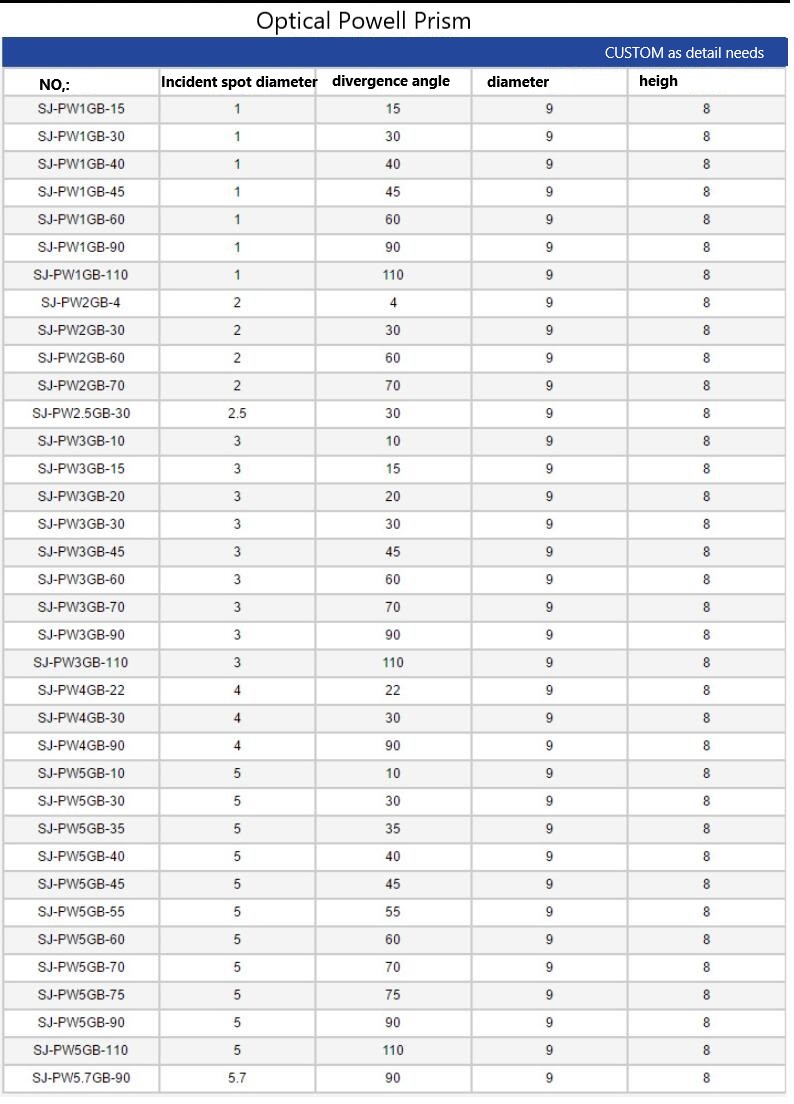

Fan Angle 15 degrees 9mm diameter Powell prism optical prism

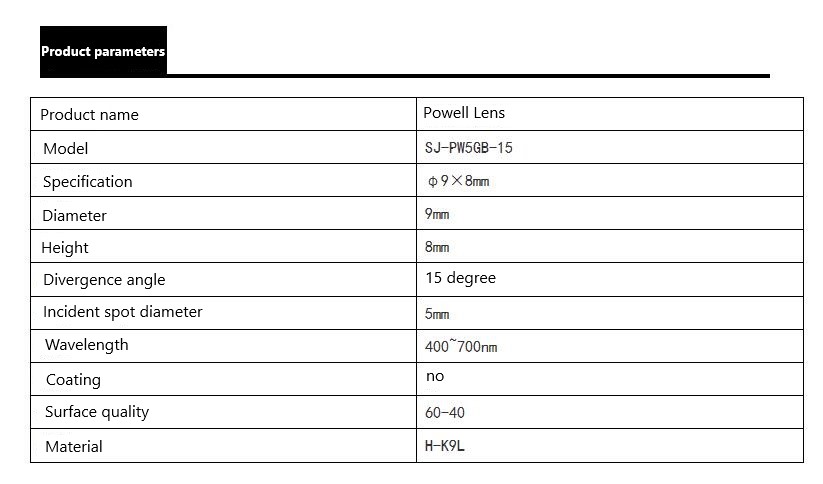

Specifications

Material: Optical Glass (BK7, Fused Silica, or Customized Materials)
Wavelength Range: 405nm – 1064nm (Customizable)
Fan Angle: 5° – 120°
Diameter: 5mm – 25mm
Surface Quality: 60-40 Scratch-Dig or Better
Surface Accuracy: λ/4 @ 632.8nm
Coating Options: AR Coating, Broadband AR Coating, Custom Coatings
Angle Tolerance: ±0.1° to ±0.5°
Custom Designs Available

Our custom optical Powell prisms are manufactured to meet demanding industrial and scientific requirements, providing stable performance, high precision, and excellent laser line uniformity for advanced optical systems.

Applications

Optical Powell prisms are widely used in:

Machine Vision Systems
3D Laser Scanning
Industrial Inspection Equipment
Laser Alignment and Positioning
Robotics and Automation
Medical Imaging Devices
Semiconductor Inspection
Laser Measurement Systems
Barcode and Logistics Scanning
Scientific Research Instruments

We are professional manufacture on the optical lenses &lasers for over 20 years experience.

With the advanteges,we offer optical products in the fileds of University laboratory, Industry, Scientific research,Medical treatment, Mechanical equipments, lasers and Construction industry and so on.

We can provide optical lenses, optical prisms, high-precision Powell prisms, right-angle prisms, laser lenses, filters, aspherical lenses, collimating lenses, optical glass lenses, optical reflectors, cylindrical lenses, laser modules, laser heads, optical glued lenses, optical rod mirrors, etc.

Looking forward to communicating whether we have the opportunity to cooperate. For the lens/laser products you need, I would like to quote our competitive price.

Please contact for any custom needs,
Contact:Rebecca Xu
