850nm narrow band filter optical filters

850nm narrow band filter optical filters

glass optical filter

custom optical filter

factory offer optical filter

850nm optical filter

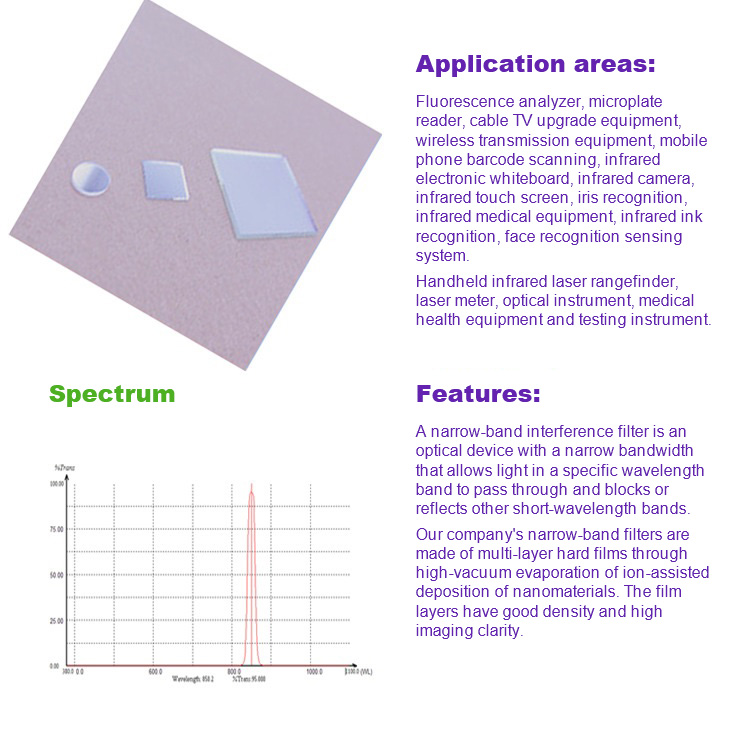

Precision narrow bandpass interference filter centered at 850 nm (near-infrared), designed to transmit a sharp 850 nm ± 5–25 nm band while blocking visible light (400–800 nm) and out-of-band NIR (860–1100 nm).

Hard-coated via ion-assisted deposition on optical glass (K9/BK7 or fused silica) with multi-cavity Fabry-Perot design for steep edges and deep blocking.

Ideal for IR LED/LD isolation, night vision surveillance, iris/facial recognition, machine vision NIR illumination, and biomedical oximetry sensors.

Available as stand-alone filter windows or integrated onto plano-convex / aspheric lenses.

Description

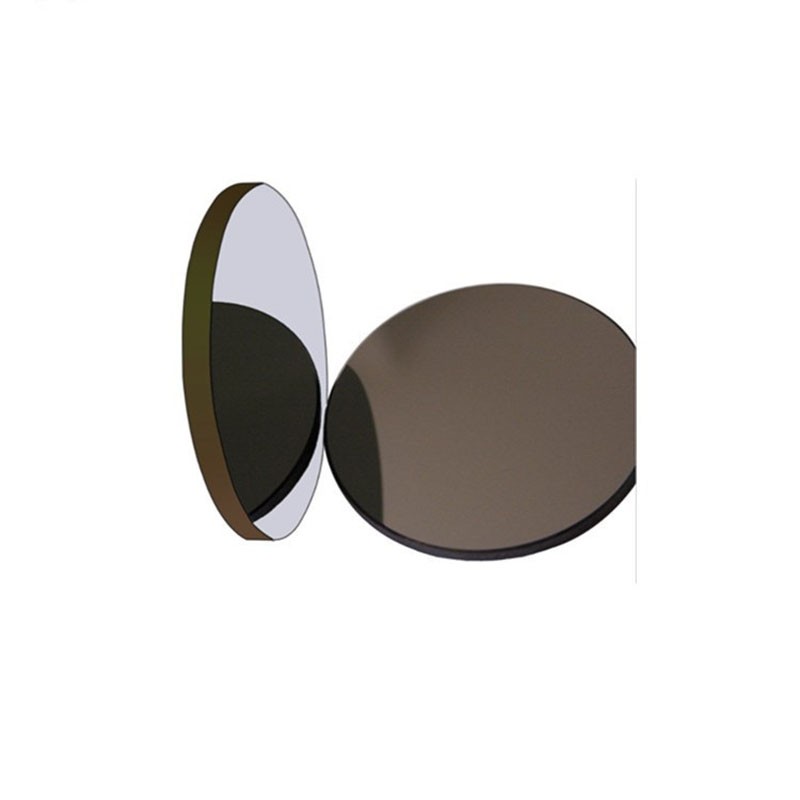

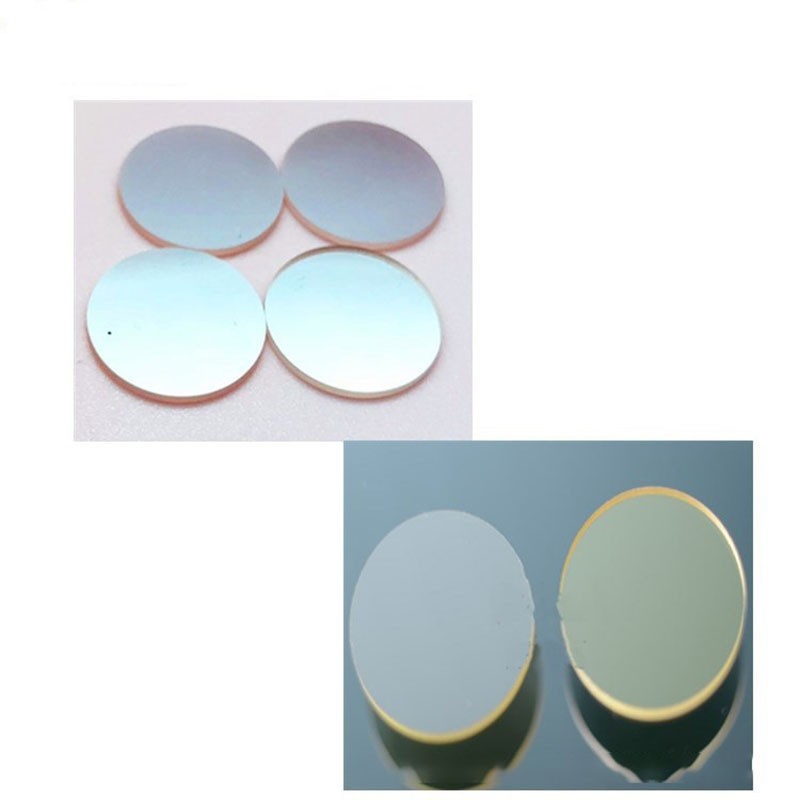

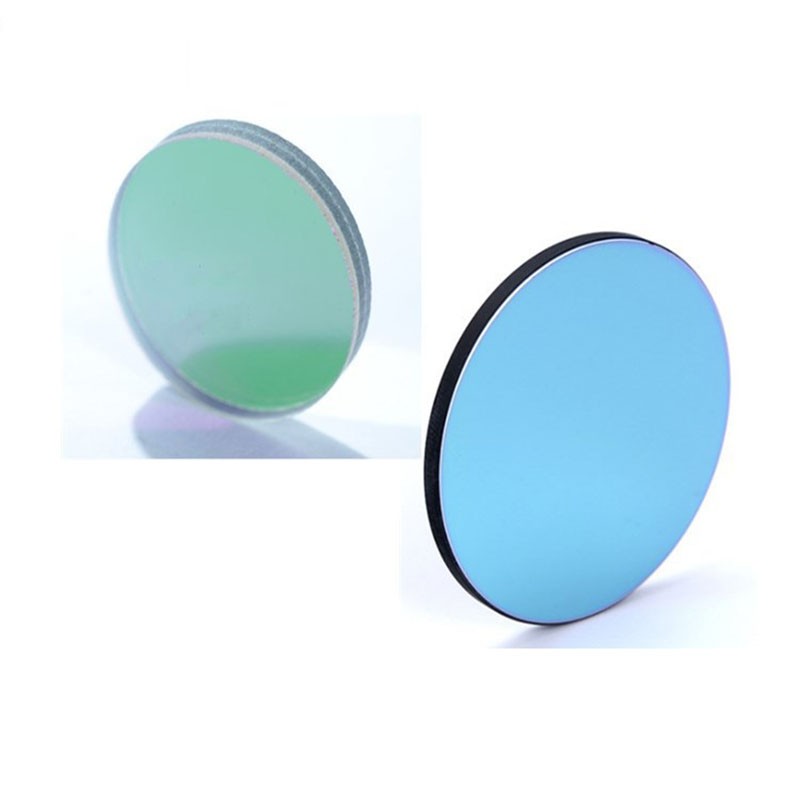

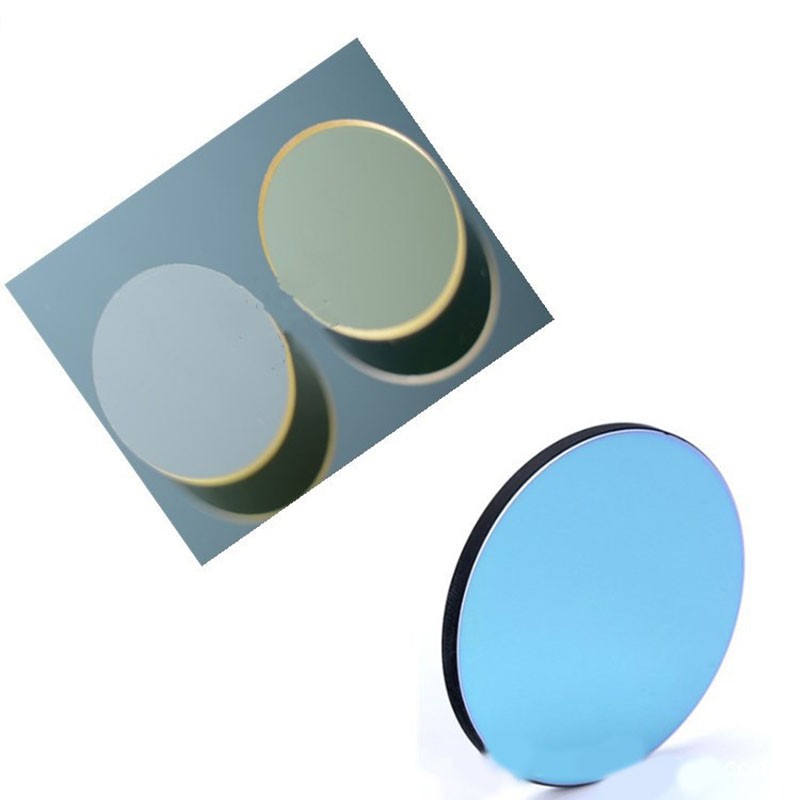

850nm narrow band filter circular infrared filter optical filters

Applications:

Night Vision Surveillance Cameras — Pass 850 nm IR illumination, block visible light for covert monitoring
Iris / Facial Recognition Systems — Isolate 850 nm NIR illumination for biometric capture
Machine Vision & Industrial Inspection — NIR channel extraction for object detection, measurement, and flaw detection
Biomedical Oximetry & Pulse Oximeters — 850 nm reference channel for blood oxygen saturation measurement
Fluorescence Imaging (NIR Dyes) — Emission filter for Cy5.5 / Alexa Fluor 790 / IRDye 800
LiDAR / Time-of-Flight Sensors — 850 nm bandpass for ambient light rejection in ToF cameras
Scientific & Analytical Instruments — NIR spectrophotometry, gas analysis, and environmental sensing

Factory custom optical filter,can cutom as your required,

please contact our sales manager

Contact: Rebecca Xu

EmailL: rebecca@supplieroptical.com

We are professional manufacture on the optical lenses &lasers for over 20 years experience.
With the advanteges,we offer optical products in the fileds of University laboratory, Industry, Scientific research,Medical treatment, Mechanical equipments, lasers and Construction industry and so on.
We can provide optical lenses, optical prisms, high-precision Powell prisms, right-angle prisms, laser lenses, filters, aspherical lenses, collimating lenses, optical glass lenses, optical reflectors, cylindrical lenses, laser modules, laser heads, optical glued lenses, optical rod mirrors, etc.
Looking forward to communicating whether we have the opportunity to cooperate. For the lens/laser products you need, I would like to quote our competitive price.

Please contact for any custom needs,
Contact:Rebecca Xu
