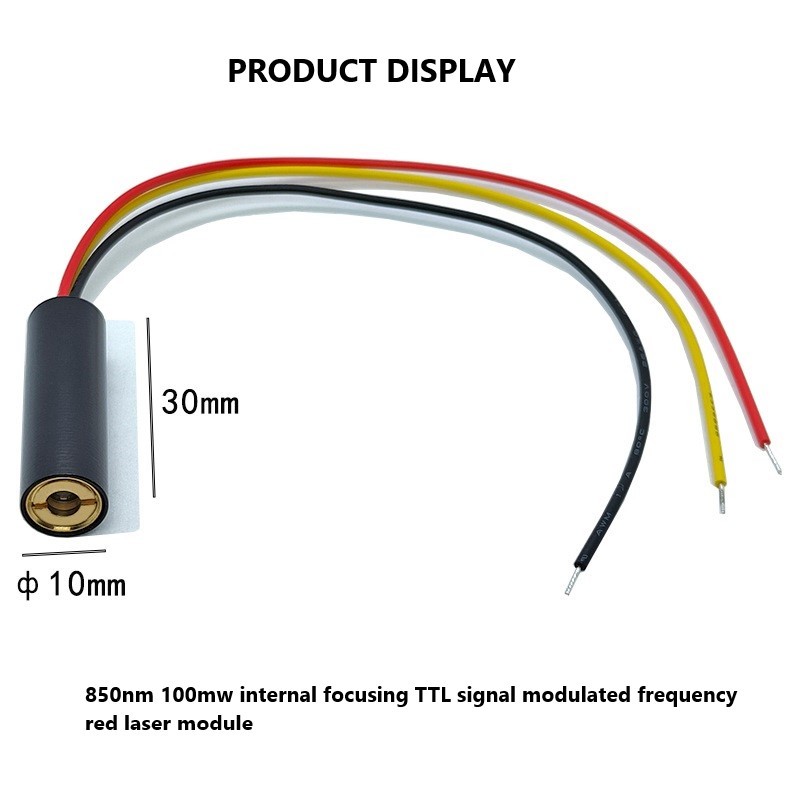

850nm 100mw red laser module 10*30mm laser module factory custom

  • 850nm 100mw red laser module
  • 10*30mm laser module
  • 850nm 100mw dot laser module

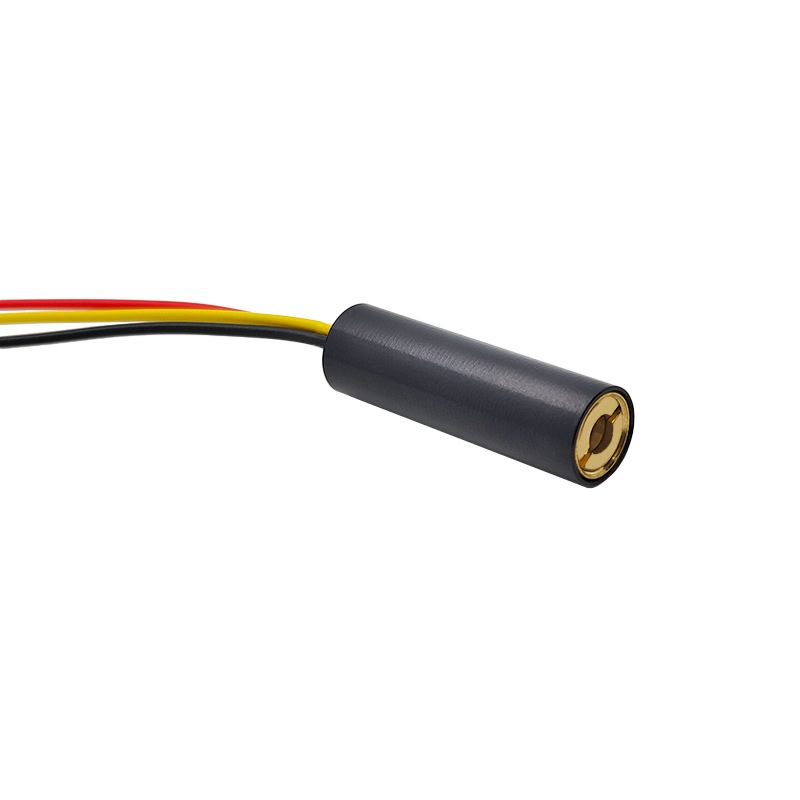

  • Compact Φ10×30mm near-infrared (IR) dot laser module with 850nm wavelength and 100mW output, featuring an adjustable focus collimating lens and built-in APC constant current driver.

    The 850nm IR beam is invisible to the naked eye—ideal for night vision illumination, CCTV IR sources, LDS/LiDAR systems, barcode scanning, machine vision alignment, and interactive touch frame applications.

    • Inquiry Send Email

    Description

    850nm 100mw internal focusing TTL signal modulated frequency 10*30mm red laser module

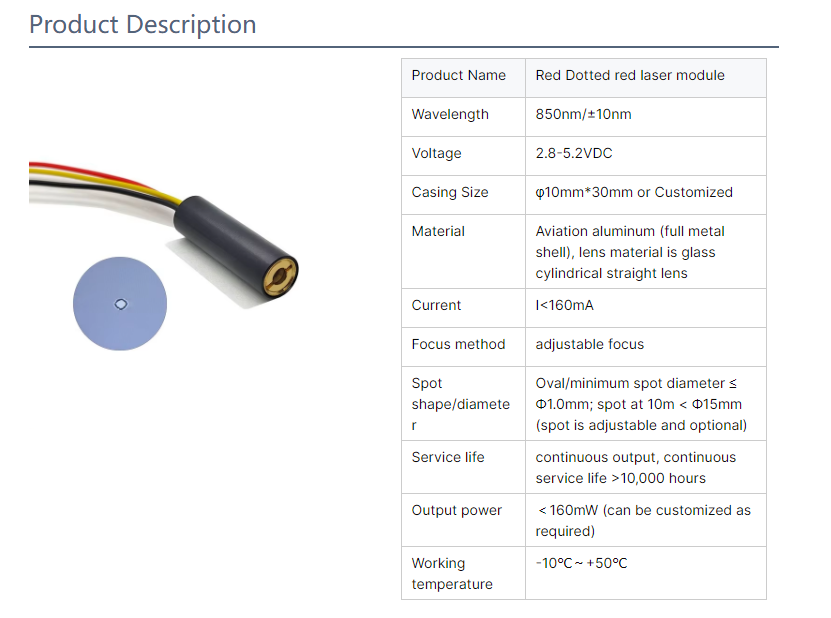

    Specifications

    Wavelength: 850nm ±10nm (Near-Infrared / Invisible)

    Output Power: 100mW (CW, Class 3B)

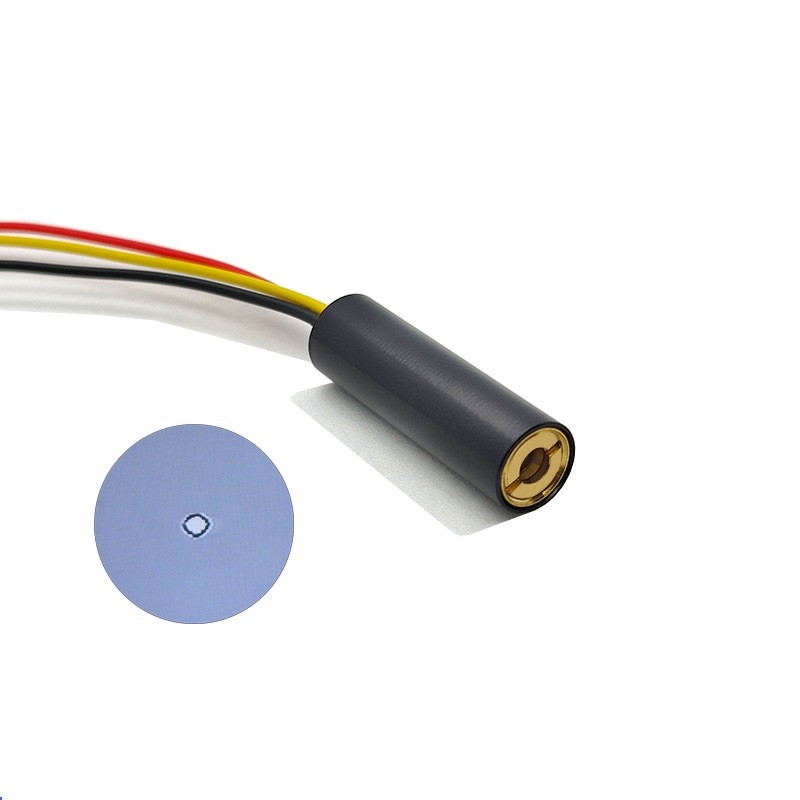

    Beam Pattern: Dot Spot (focus adjustable via front cap)

    Lens: Coated Glass or PMMA Collimating Lens (user focusable)

    Operating Voltage: DC 2.8V–5V (typical 3V/5V; 12V optional with driver)

    Operating Current: <200mA

    Spot Size: Adjustable (collimated dot, tunable by focus ring)

    Housing: Φ10×30mm Black Anodized Brass/Aluminum (ESD & reverse polarity protected)

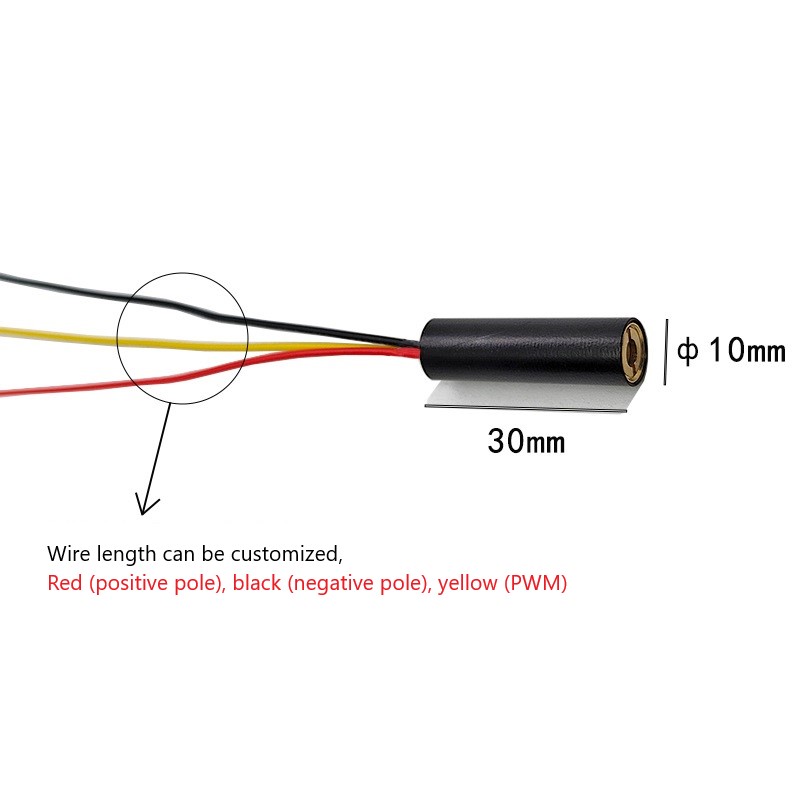

    Lead Wire: Red(+)/Black(-) 100–150mm or JST connector (optional)

    Working Temp.: -10°C to +50°C

    Storage Temp.: -40°C to +80°C

    Lifetime: >8,000 hrs
