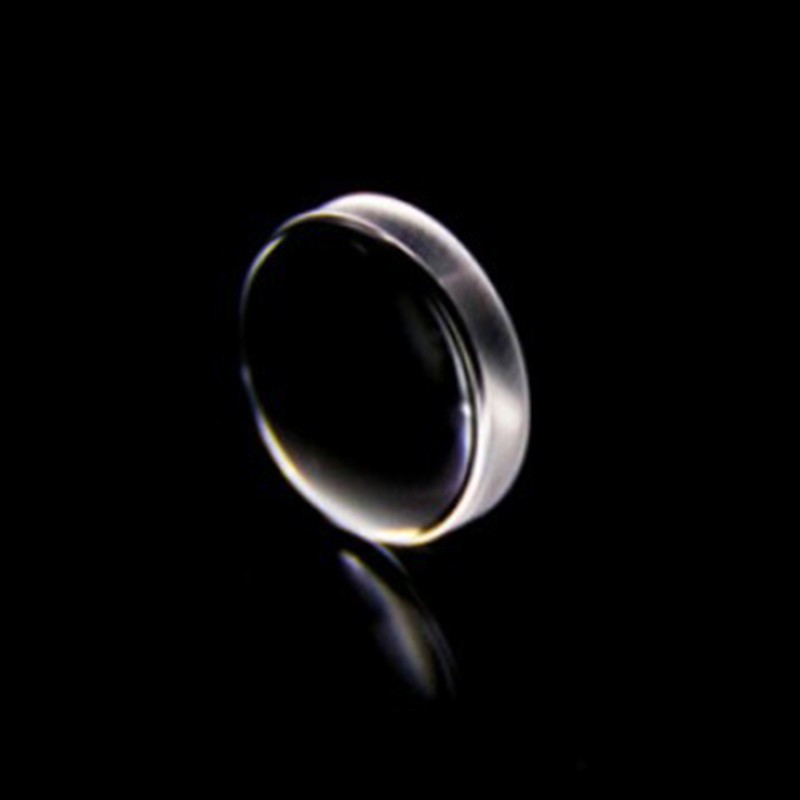

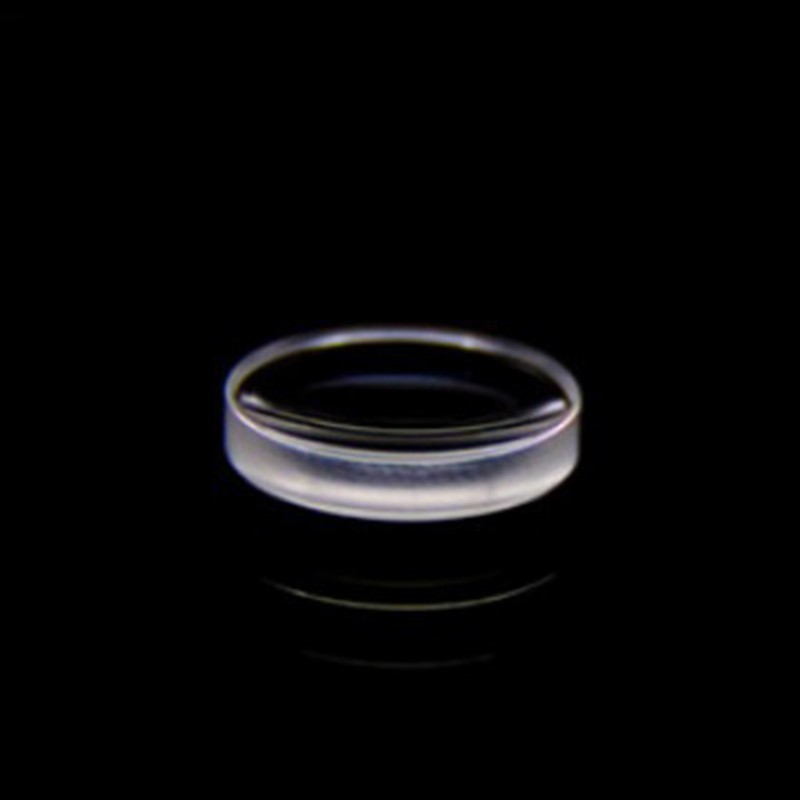

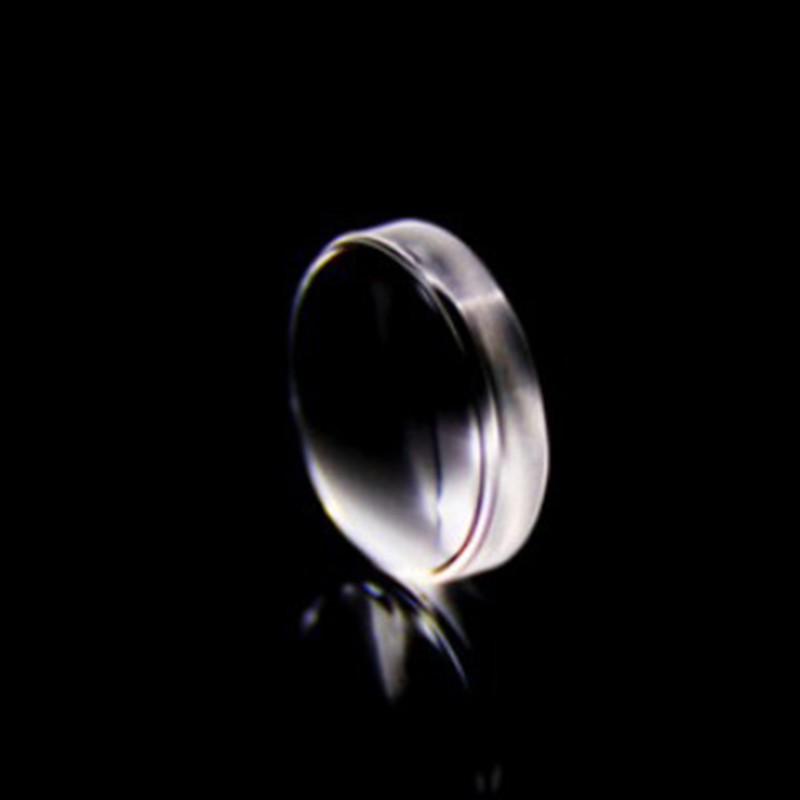

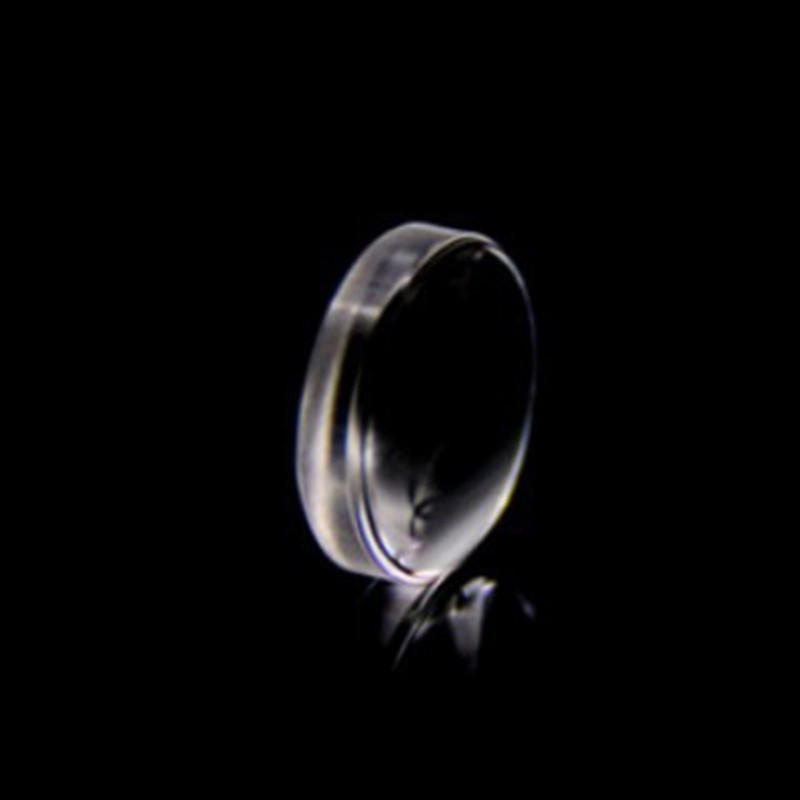

D10mm 16.7mm Focal Length 976nm Aspheric Glass Lens

D10mm 16.7mm Focal Length 976nm Aspheric Glass Lens

Optical Aspherical Lens

976nm Aspheric Glass Lens

optical aspheric lens

factory offer optical aspheric lens

High-precision molded or polished optical glass aspherical singlet lens with 10mm clear aperture and 16.7mm effective focal length, specifically optimized for 976nm wavelength applications such as fiber laser pump sources, diode laser collimation, and free-space NIR coupling.

The aspheric profile eliminates spherical aberration and delivers a smaller focused spot with higher coupling efficiency than spherical lenses.

Anti-reflection coated at 976nm (V-coat, R<0.25%) or optional BBAR 900–1100nm.

Ideal for compact NIR laser modules, pump combiners, and OEM photonics assemblies.

Description

D10mm 16.7mm Focal Length 976nm Aspheric Glass Lens Optical Aspherical Lens OEM Metal Reflector Optical Silver Coated 0.5 10mm

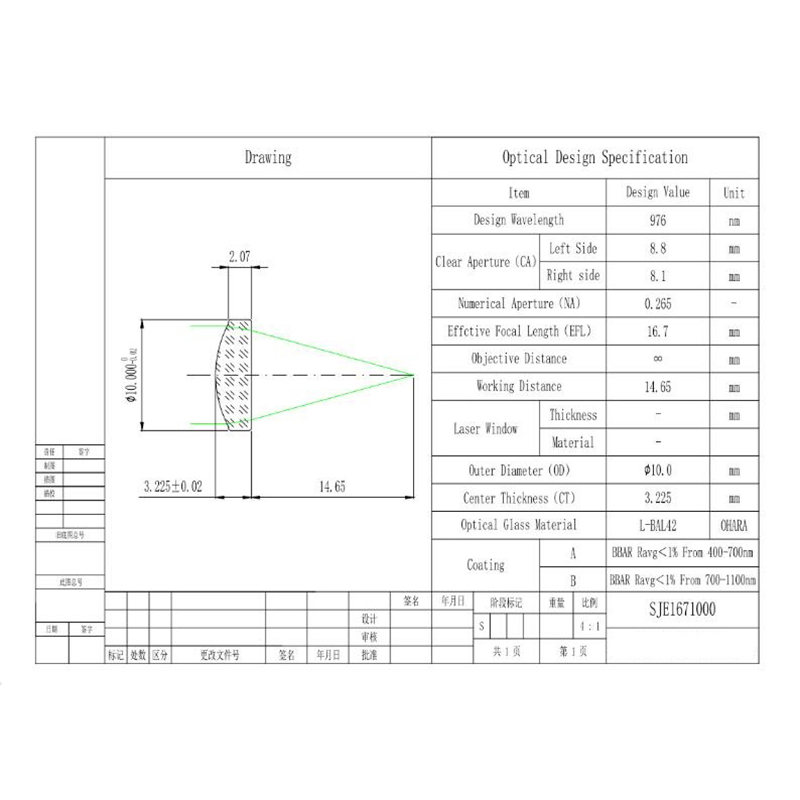

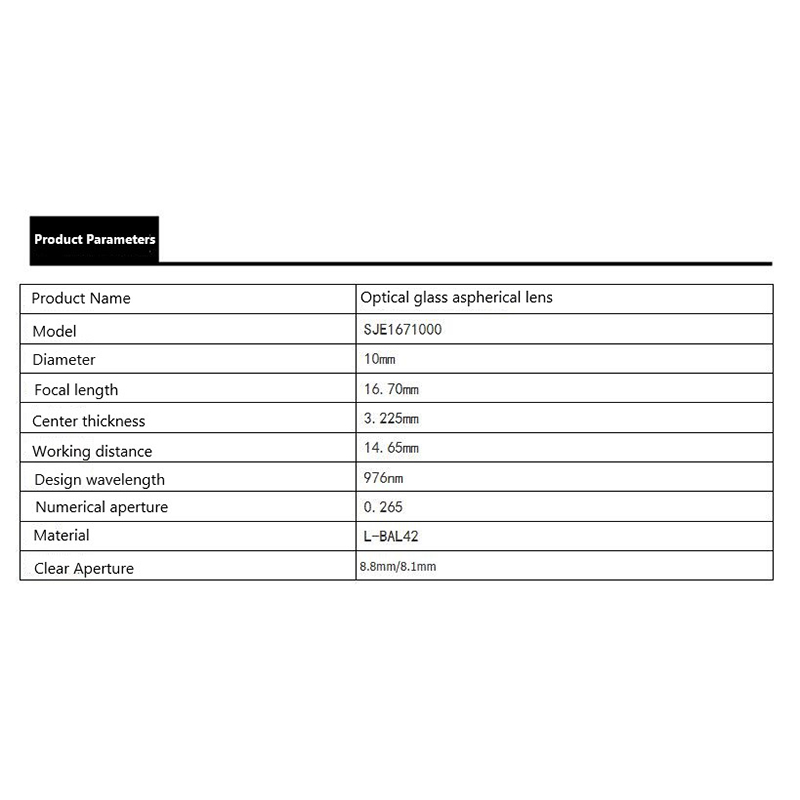

Specifications:

Lens Type: Optical Glass Aspherical Singlet Lens (Molded / Ground & Polished)

Material: N-BK7 / H-LaK / N-SF Series (NIR-optimized glass available) / Custom

Diameter (Clear Aperture): 10mm (Ø10mm)

Effective Focal Length (EFL): 16.7mm (Custom 10–200mm available)

Back Focal Length (BFL): Specified per design (typically ~14–16mm)

Numerical Aperture (NA): ~0.28–0.33 (depends on beam clearance)

Center Thickness: 2.0mm – 5.0mm (design dependent)

Dimension Tolerance: ±0.02mm / ±0.05mm

Center Thickness Tolerance: ±0.02mm

Surface Figure (Base Sphere): λ/4 @ 632.8nm

Surface Roughness (RMS): <20nm (Molded) / <5nm (Polished)

Surface Quality (Scratch-Dig): 60-40 / 40-20 / 20-10

Clear Aperture: ≥90% of Ø10mm

Edge Treatment: Ground / Edge Blackened (Optional) / Bevel 0.1mm × 45°

Aspheric Coefficients: Optimized for 976nm NIR band (available on request)

Coating Options:

V-Coating @ 976nm (R<0.25% per surface) ← Standard
Broadband AR 900–1100nm / 800–1100nm (Ravg<0.5%)
Dual-Wavelength AR 915/976nm or 976/1064nm (Optional)
Uncoated (Available)

Operating Wavelength: Optimized for 976nm (Typical Fiber Laser Pump Wavelength)

Transmission: >99% per surface with V-Coat

Operating Temperature: -40°C to +85°C

We are professional manufacture on the optical lenses &lasers for over 20 years experience.
With the advanteges,we offer optical products in the fileds of University laboratory, Industry, Scientific research,Medical treatment, Mechanical equipments, lasers and Construction industry and so on.

We can provide optical lenses, optical prisms, high-precision Powell prisms, right-angle prisms, laser lenses, filters, aspherical lenses, collimating lenses, optical glass lenses, optical reflectors, cylindrical lenses, laser modules, laser heads, optical glued lenses, optical rod mirrors, etc.

Looking forward to communicating whether we have the opportunity to cooperate. For the lens/laser products you need, I would like to quote our competitive price.

Please contact for any custom needs,
Contact:Rebecca Xu
