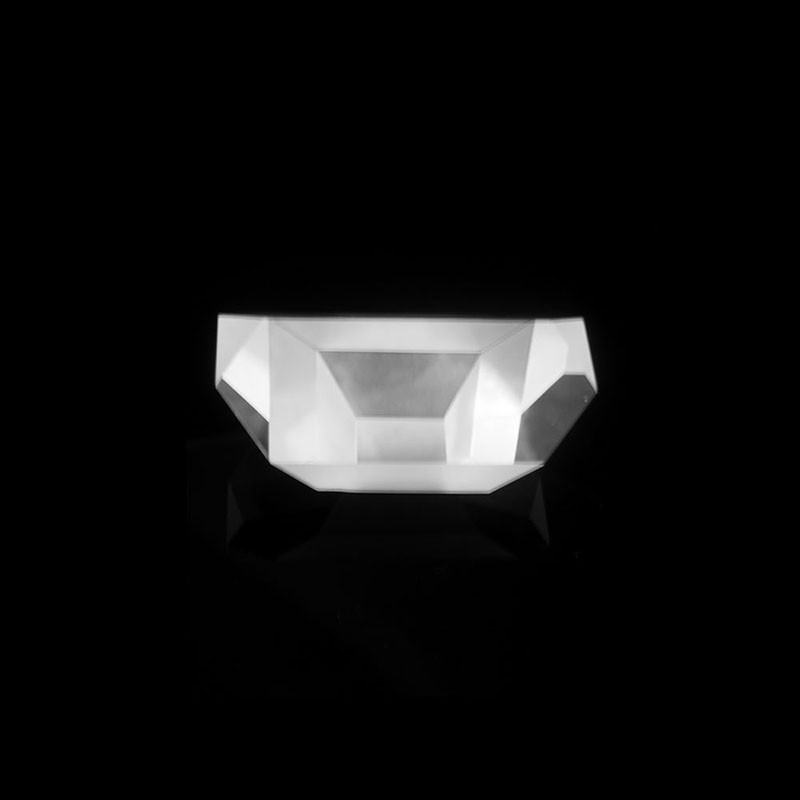

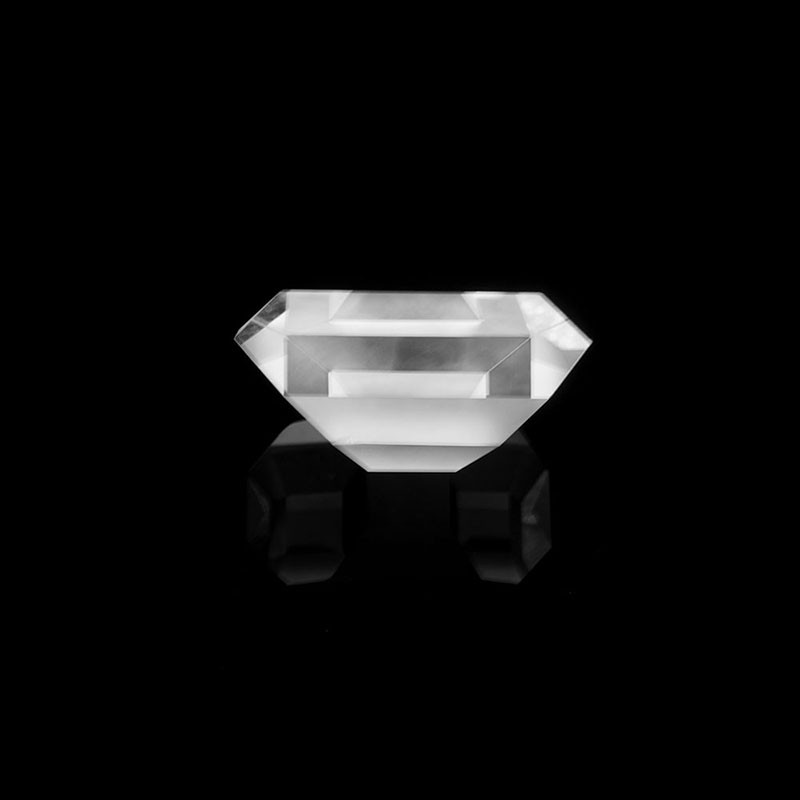

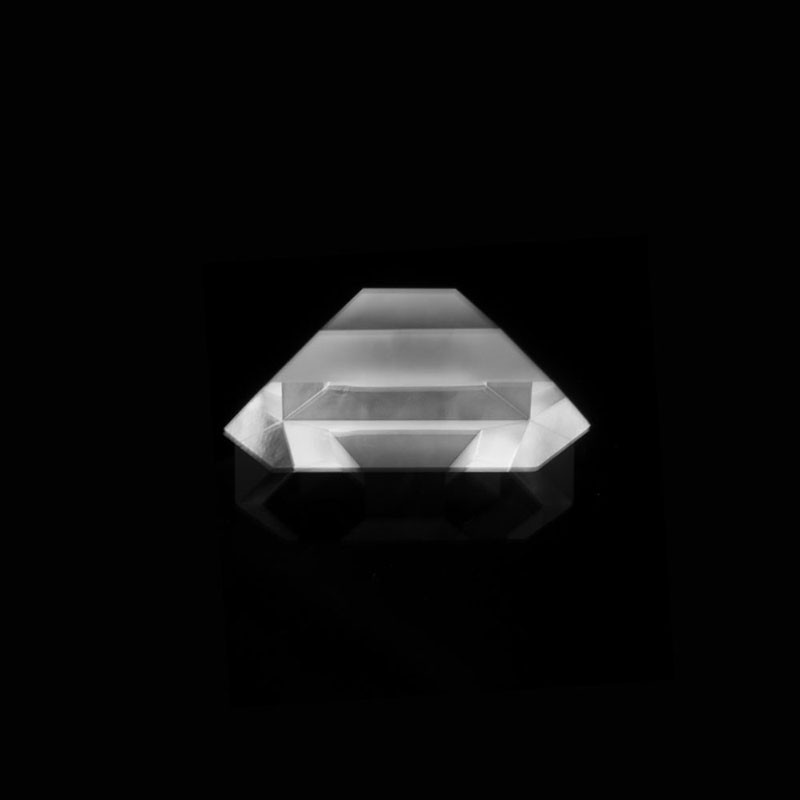

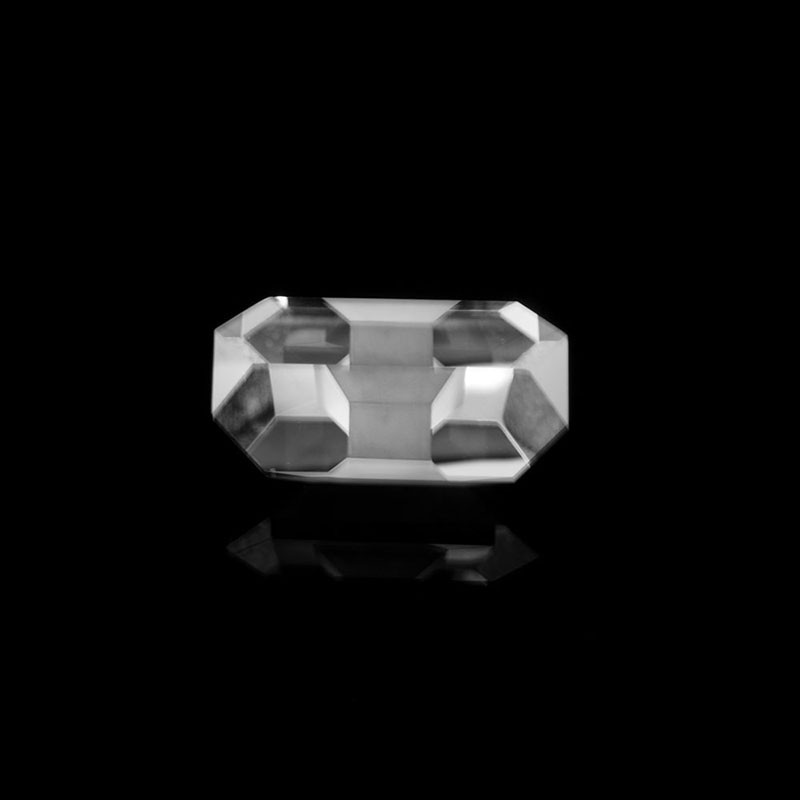

Description
Features
- Fixed 90° beam deviation, no image flipping & mirror reversal, outputs upright normal image
- Ultra-precise 90° roof angle; tolerance＜4 arcsec to avoid double ghost images
- Total internal reflection, high reflectivity, low stray light & clear imaging
- Compact integrated structure, shorter optical path than Porro prism systems
- Made of BK7 optical glass/fused silica, with high-transmittance AR multi-coating
- Low wavefront distortion, stable angle accuracy, long service life
Typical Parameters
- Material: N-BK7, Fused Silica
- Working wavelength: 400–1100nm
- Surface quality: 60/40, 40/20
- Flatness: λ/4 @632.8nm
- Roof angle tolerance: ≤4 arcsec
- Coating: Broadband AR anti-reflection coating
- Dimension: Customizable clear aperture & size
