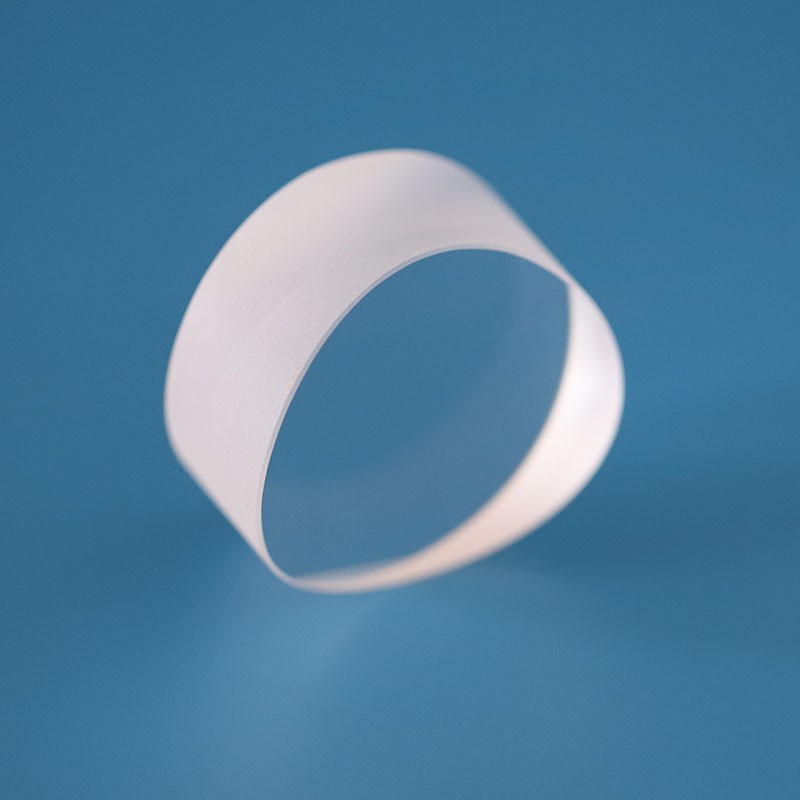

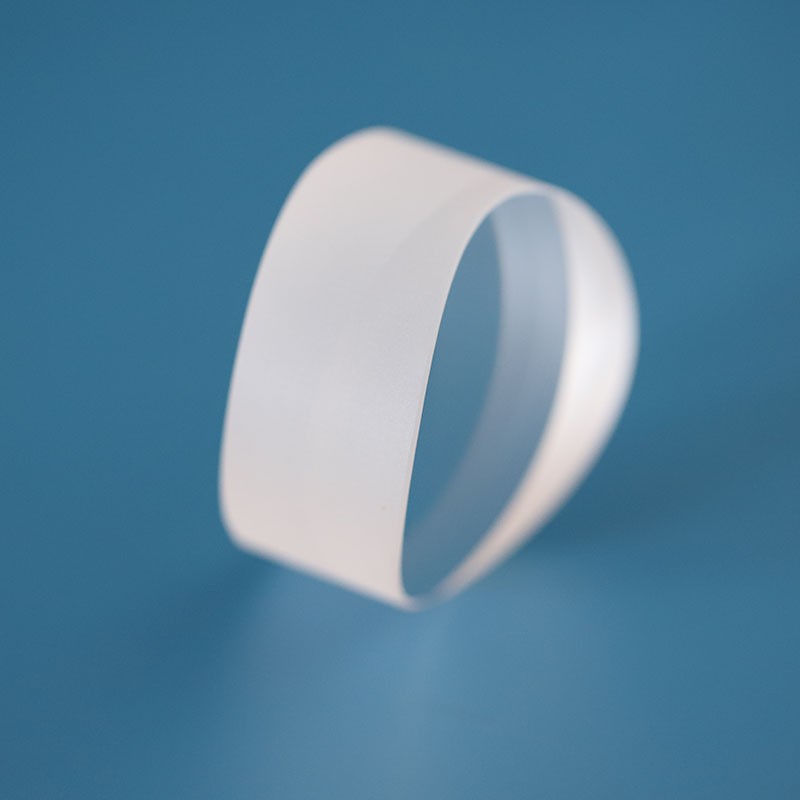

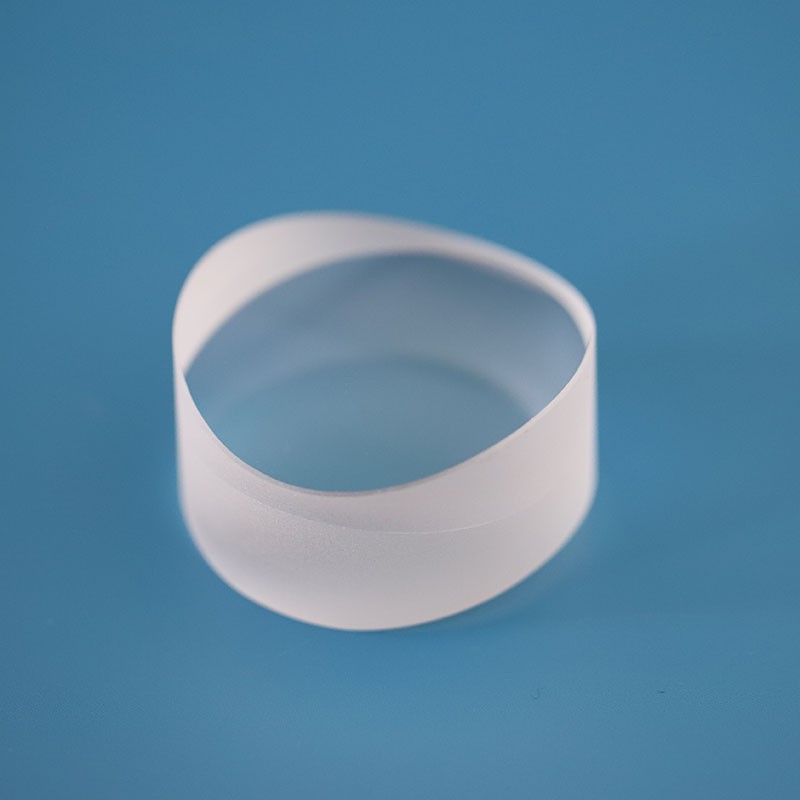

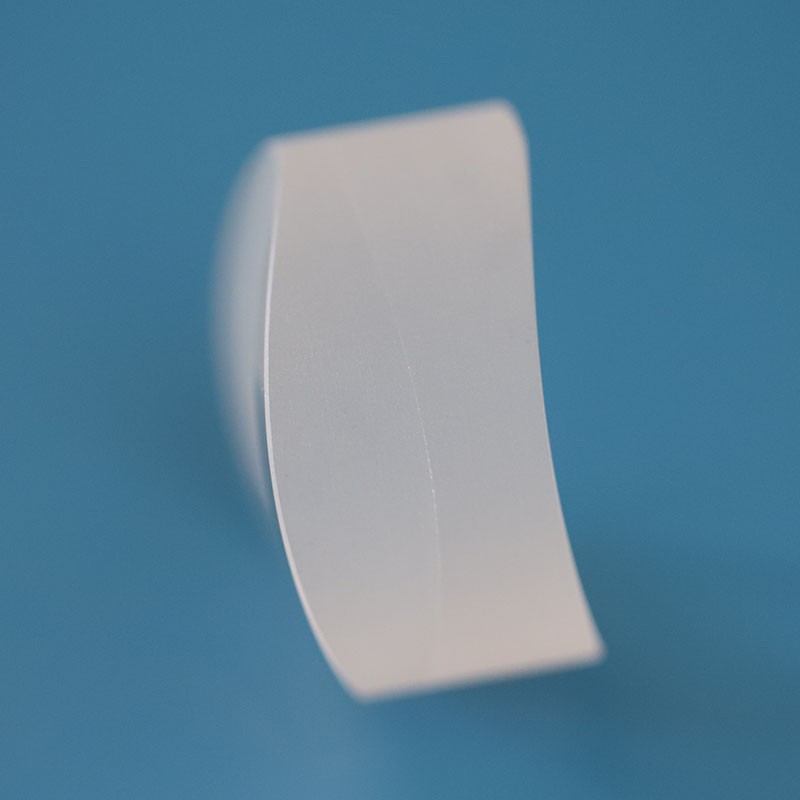

Factory-direct precision optical cylindrical lens fabricated from N-BK7 or K9 optical glass, available in plano-convex, plano-concave, and round rod (cylindrical rod lens) configurations.

Cylindrical lenses focus or diffuse light in only one dimension—converging or diverging the beam in the tangential plane while leaving the orthogonal (sagittal) plane unaltered—making them ideal for converting circular laser beams into line images, correcting astigmatism, and shaping diode laser outputs.

Surfaces are fine polished to laser-grade quality, with optional AR coating at common laser wavelengths. Custom radii, lengths, round rod diameters, and edge treatments available for OEM laser and imaging modules.

Description

Factory offer Optical BK7 Round Cylindrical Lens Cylindrical Lens glass triplet lens

Specifications:

Material: N-BK7 (nd=1.5168, νd=64.2) / K9 (H-K9L) / B270 / Fused Silica (UV Grade) / Custom

Lens Type: Cylindrical Lens – Plano-Convex / Plano-Concave / Rod (Round) Cylindrical Lens

Configuration:

Rectangular Cylindrical Lens (Length × Height, e.g. 10×5mm, 20×10mm)
Round Cylindrical / Rod Lens (Diameter: 1mm – 30mm; Length: 3mm – 100mm+)

Effective Focal Length (Tangential Plane): 10mm – 500mm (custom per radius)

Radius of Curvature (Tangential): Specified per focal length design

Dimension Tolerance: ±0.05mm / ±0.1mm

Center Thickness Tolerance: ±0.1mm

Length / Width Tolerance: ±0.1mm

Surface Flatness (Plano Face): λ/4 @ 632.8nm

Surface Quality (Scratch-Dig): 60-40 / 40-20 / 20-10 (Laser Grade)

Power (Tangential): As specified; Sagittal Power = 0

Centration (Rod Lens): <3 arc min typical

Edge Treatment: Ground / Fine Polished / Beveled 0.1–0.3mm × 45°

Coating Options:

Uncoated
MgF₂ AR @ 550nm
Broadband AR 400–700nm (Ravg<0.5%)
V-Coating @ 405nm / 532nm / 635nm / 650nm / 808nm / 1064nm / Custom

Operating Wavelength: 350nm – 2000nm (BK7 Substrate)

Operating Temperature: -40°C to +80°C

We are professional manufacture on the optical lenses &lasers for over 20 years experience.
With the advanteges,we offer optical products in the fileds of University laboratory, Industry, Scientific research,Medical treatment, Mechanical equipments, lasers and Construction industry and so on.
We can provide optical lenses, optical prisms, high-precision Powell prisms, right-angle prisms, laser lenses, filters, aspherical lenses, collimating lenses, optical glass lenses, optical reflectors, cylindrical lenses, laser modules, laser heads, optical glued lenses, optical rod mirrors, etc.
Looking forward to communicating whether we have the opportunity to cooperate. For the lens/laser products you need, I would like to quote our competitive price.
Please contact for any custom needs,

Contact:Rebecca Xu
Email: rebecca@realpoo.cn
