UV Narrow Bandpass Filter — Center λ 360nm, FWHM 10nm/20nm, OD4+ Blocking, for Surveillance Camera & UV Detection

UV Narrow Bandpass Filter — Center λ 360nm, FWHM 10nm/20nm, OD4+ Blocking, for Surveillance Camera & UV Detection

glass optical filter

custom optical filter

factory offer optical filter

360nm optical filter

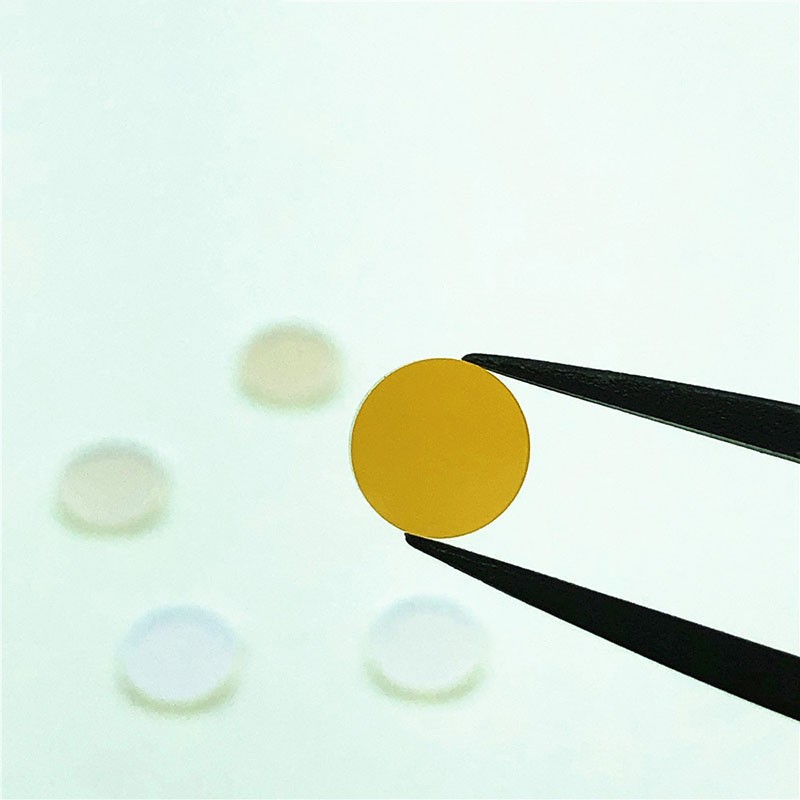

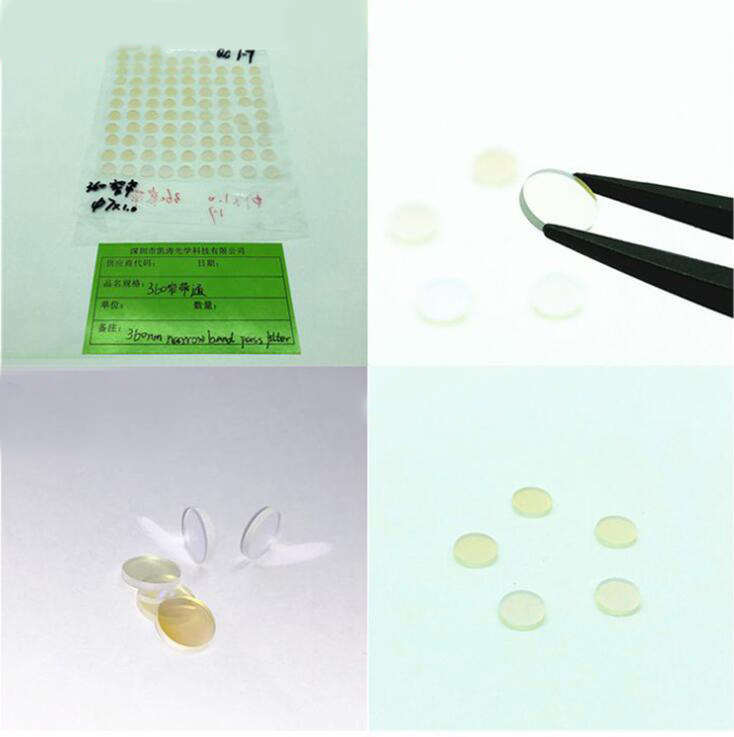

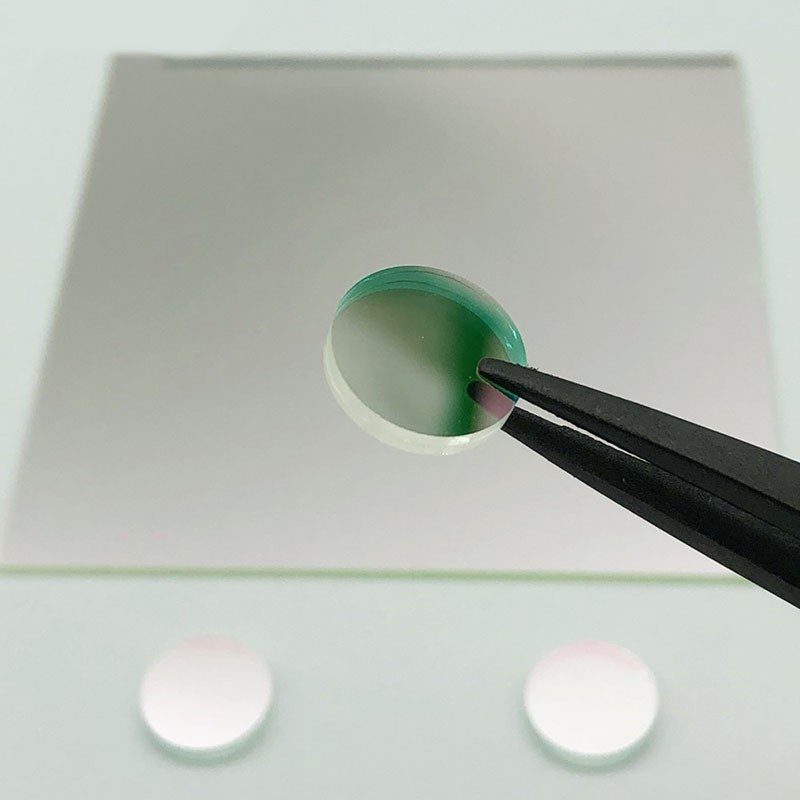

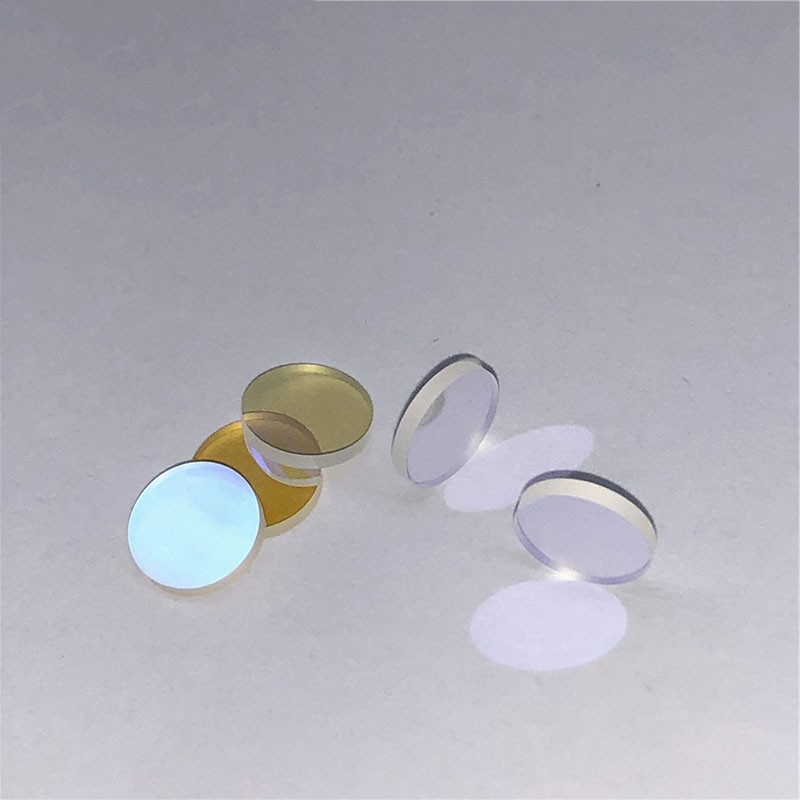

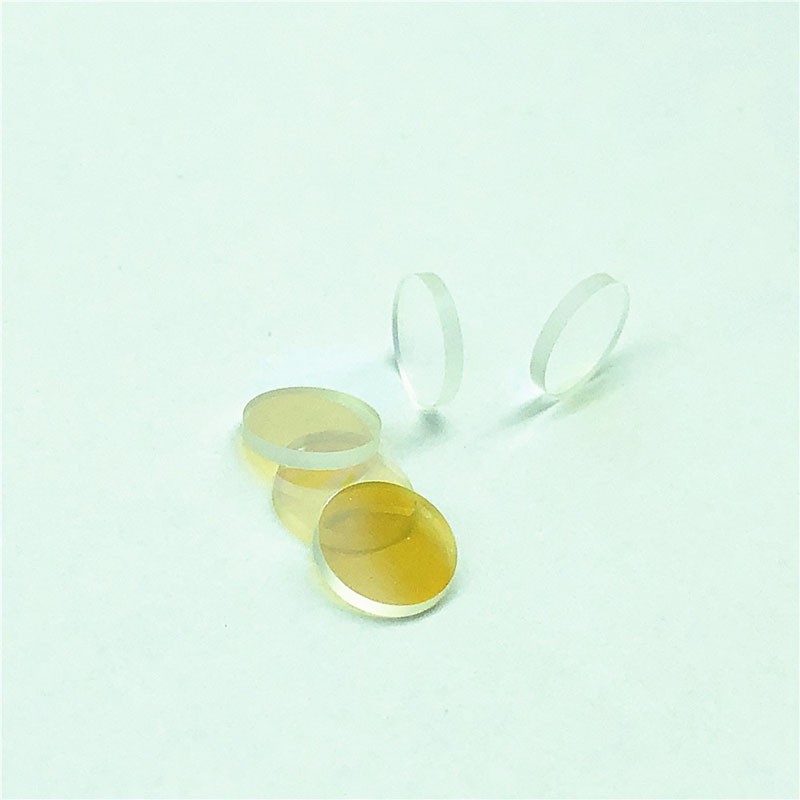

Precision UV narrow bandpass filter centered at 360 nm, combining UV-grade color glass substrate (UG-series or equivalent) with hard dielectric interference coating to isolate the 360 nm near-ultraviolet band while blocking visible and NIR wavelengths. Designed for UV-enhanced surveillance cameras, forensic UV imaging, UV lamp monitoring, and sunlight/ambient rejection in UV-sensitive detection systems. Available as plano-plano filter window or mounted in aluminum/plastic retaining ring for C-mount / CS-mount / custom camera housings. Substrate: UV Fused Silica (JGS1) preferred for <370 nm transmission.

Description

360nm narrow band filter color filter surveillance camera uv ultraviolet optical filter

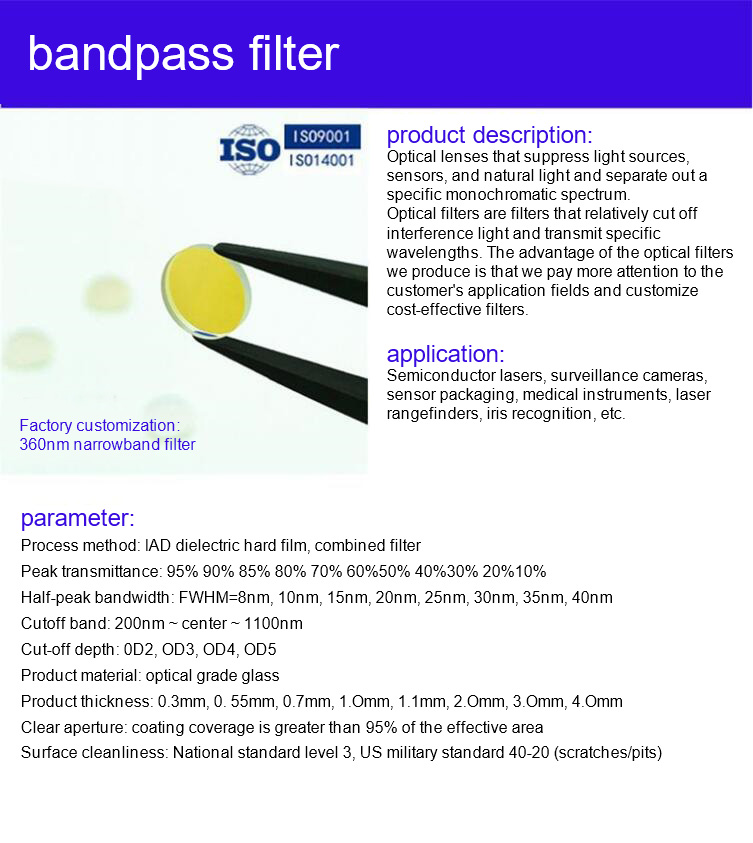

Specifications:

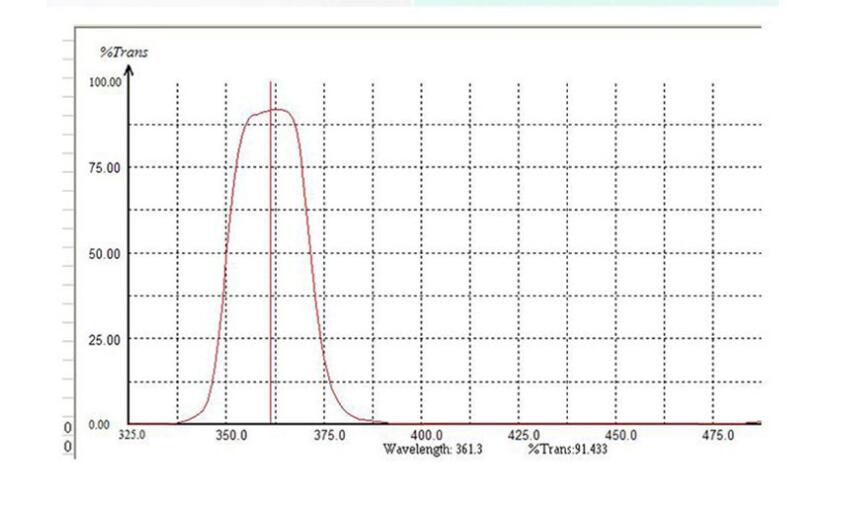

Center Wavelength (CWL): 360 nm ± 2 nm (340 / 365 nm also available)
Half Bandwidth (FWHM): 10 nm / 20 nm / 30 nm (custom 5–50 nm)
Peak Transmittance (Tpeak): ≥ 25%–45% (UG-glass + coating; >50% possible all-dielectric on FS no color glass)
Blocking Range: 400–1100 nm (visible + NIR); optional 200–400 nm out-of-band block
Blocking Level (Cut-off Depth): ≥ OD4 (0.01%); OD5–OD6 optional
Substrate Material: UV Fused Silica (JGS1) — standard; Schott UG-11 / UG-5 color glass available for added UV cutoff
Substrate Form: Plano-Plano Filter Window / Cemented to cover glass / Integrated on UV lens
Substrate Dimensions: Ø12.7 / Ø25.4 / Ø30 / Ø50 mm (custom rectangular also available)
Substrate Thickness: 1.0 / 2.0 / 3.0 mm
Surface Quality: 60-40 / 40-20 Scratch-Dig
Surface Flatness: λ/4 @ 632.8 nm (windows)
Parallelism: ≤ 1 arcmin
Incidence Angle: 0° ± 5° (AOI-tuned design on request)
Coating Durability: Meets MIL-C-675C(humidity, adhesion, wipe resistance)

Factory custom optical filter,can cutom as your required,

please contact our sales manager
