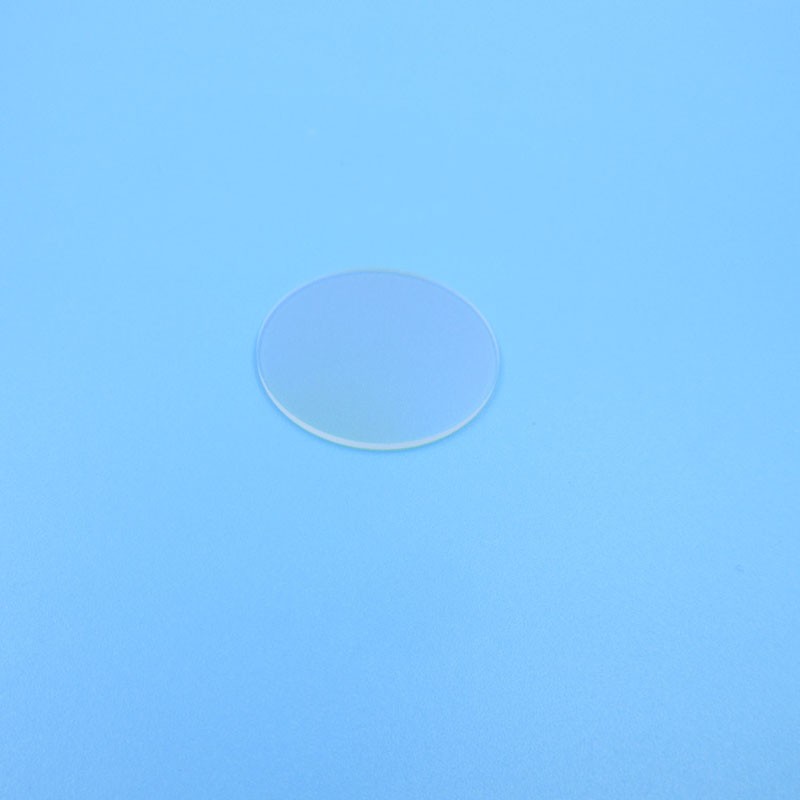

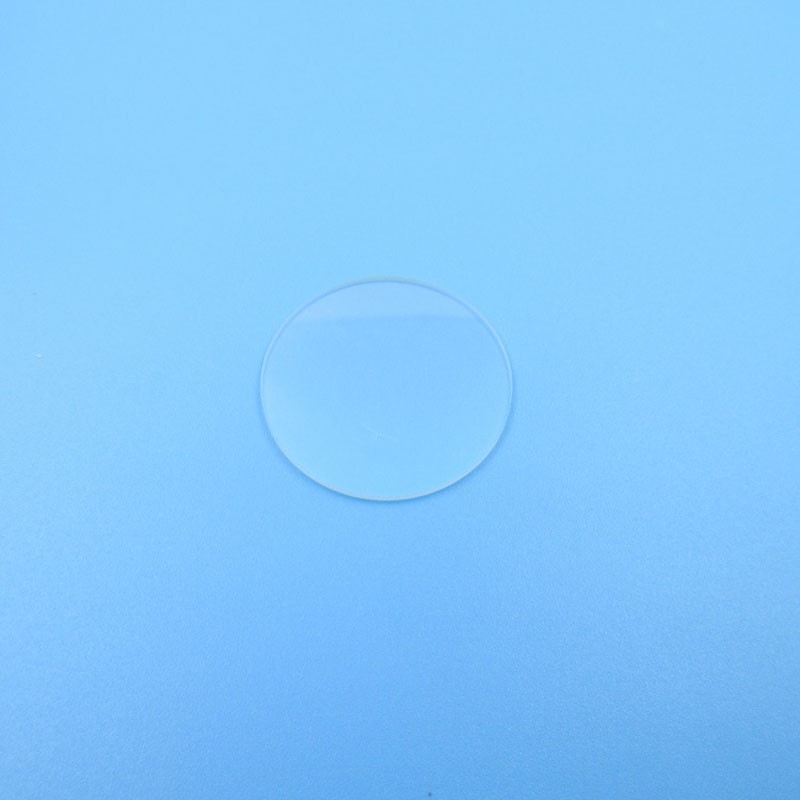

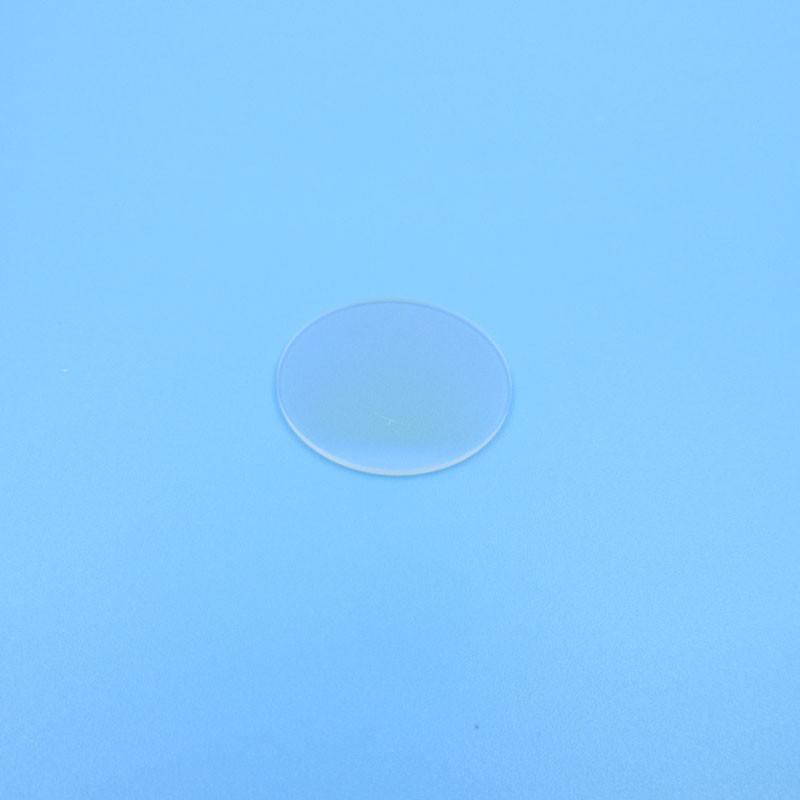

500nm-1100nm filter 30*1.1mm optical filter

500nm-1100nm filter 30*1.1mm optical filter

glass optical filter

custom optical filter

factory offer optical filter

500-1100nm optical filter

Precision long wave pass interference filter designed to transmit wavelengths from approximately 500 nm through 1100 nm (visible yellow-green to NIR) while blocking shorter wavelengths below 500 nm (UV to green).

Fabricated on a 1.1 mm thick optical glass substrate (BK7/K9 or fused silica) with hard dielectric multilayer coating via ion-assisted deposition.

Ideal for fluorescence emission filtering, machine vision spectral separation, biomedical analyzers, and NIR imaging systems where clean separation between visible shortwave and longwave/NIR bands is required. Available in custom dimensions and cut-on wavelengths.

Description

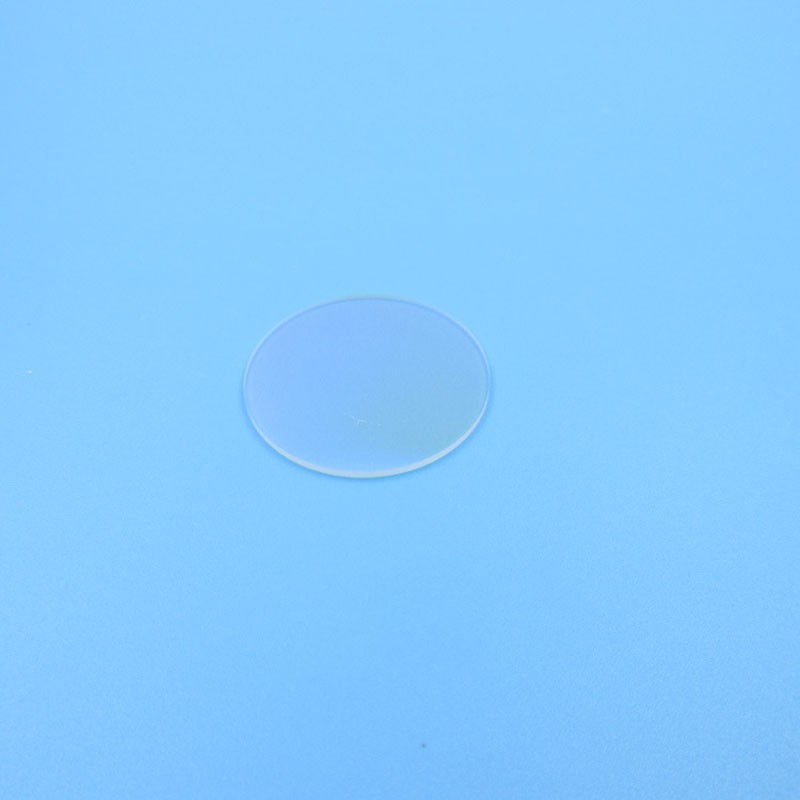

**45degree incident 500nm-1100nm filter 30*1.1mm optical filter**

Specifications

Filter Type: Long Wave Pass (LWP) / Cut-on Filter

Cut-on Wavelength (50% T point): 500 nm ± 5 nm (480 / 495 / 510 / 550 nm on request)

Transmission Band: 510–1100 nm (extends to 1700 nm on fused silica)

Average Transmission (Tavg): ≥ 90%–93% (510–1100 nm)

Blocking Band: 200/350–490 nm

Blocking Level: ≤ 0.1% (OD3) standard; OD4–OD6 optional

Substrate Material: N-BK7 (K9) / UV Fused Silica (JGS1)

Dimensions: 30 mm × 1.1 mm (custom size available)

Size Tolerance: ±0.1 mm (diameter/length); ±0.05 mm (thickness)

Surface Quality: 60-40 / 40-20 Scratch-Dig

Surface Flatness: λ/4 @ 632.8 nm

Parallelism: ≤ 1 arcmin (standard); ≤ 10 arcsec (precision)

Incidence Angle: 0° ± 5°

Coating Durability: Meets MIL-C-675C (humidity, adhesion, solvent resistance)

Edge Treatment: Ground / beveled; optional edge blackening

Factory custom optical filter,can cutom as your required,

please contact our sales manager
