12X40mm green laser module adjustable focus 520nm 1mW laser module

  • adjustable focus 520nm laser module
  • 520nm 1mW laser module customized
  • 12X40mm green laser module

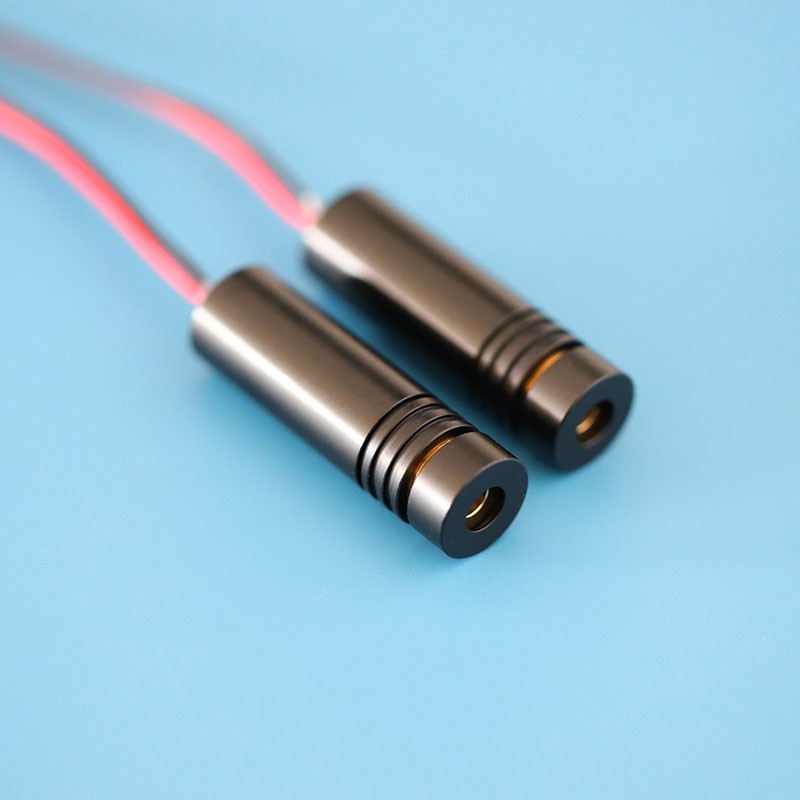

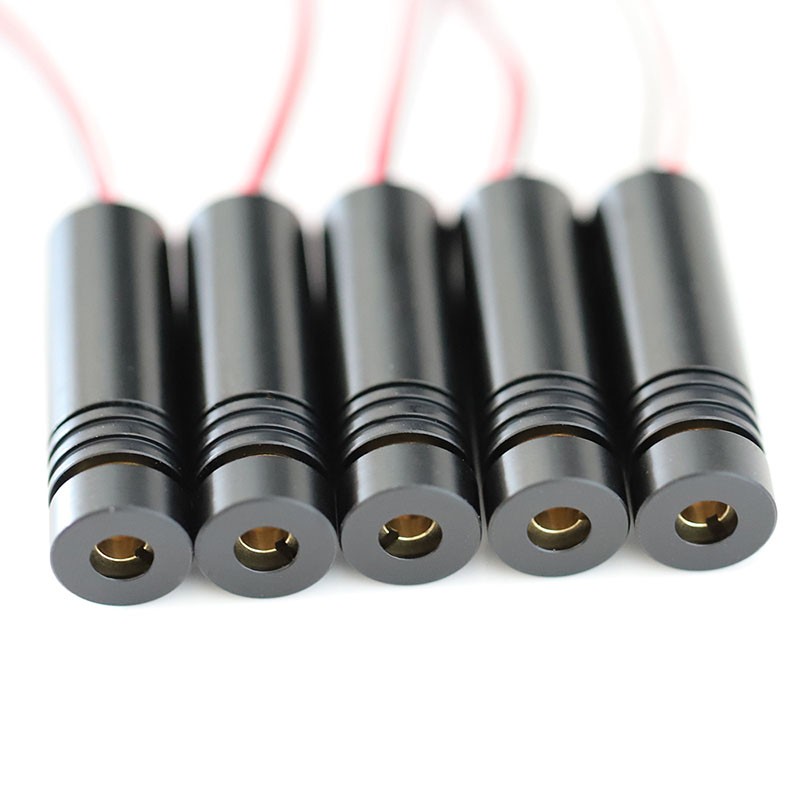

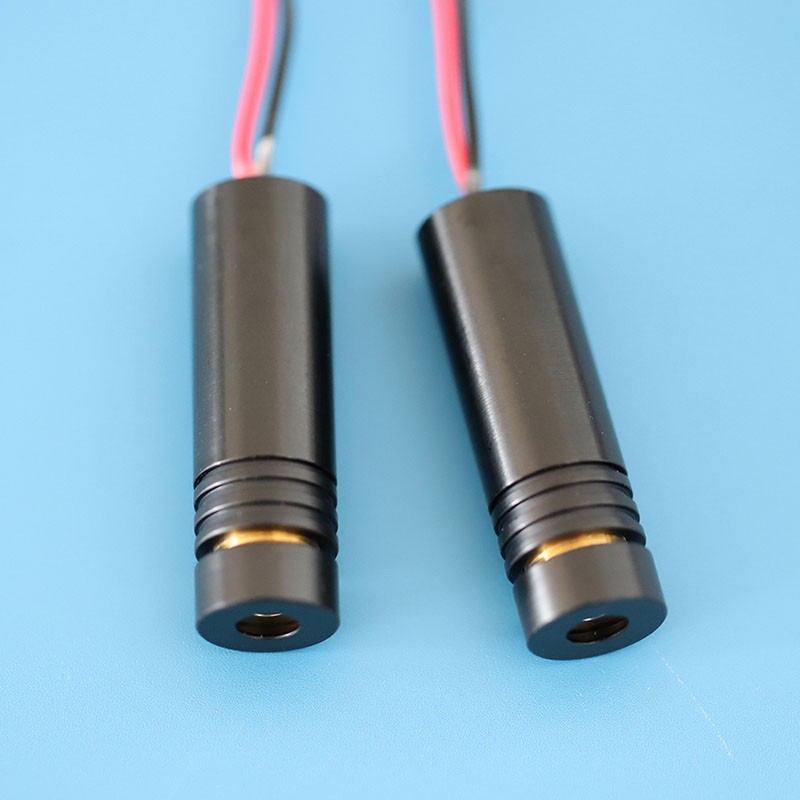

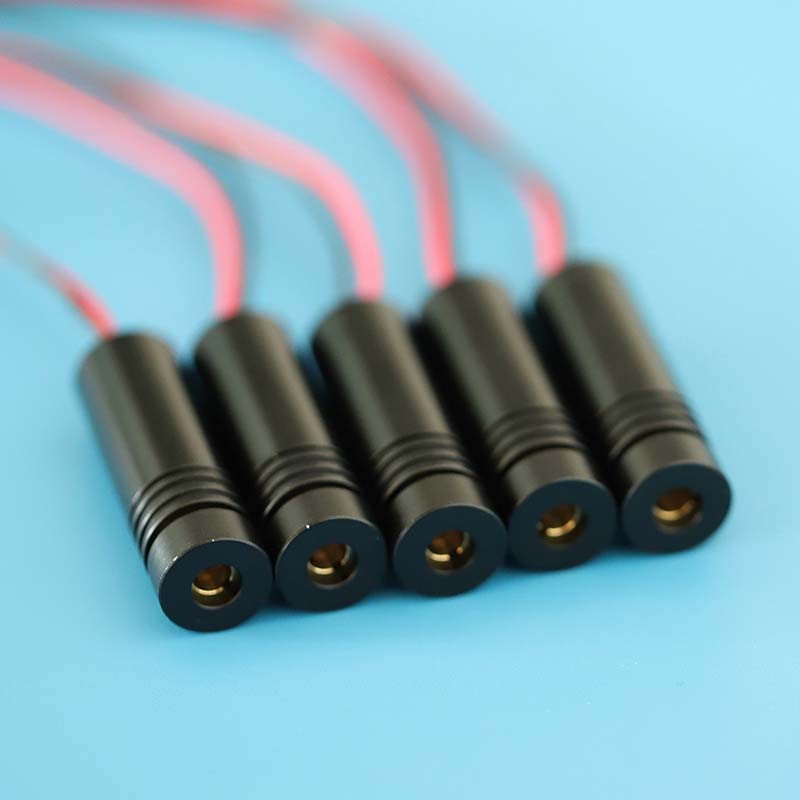

  • Compact Φ12×40mm true green laser diode module with 520nm wavelength and ≤1mW output (Class II), featuring an adjustable focus collimating glass lens and built-in APC constant current driver.

    Unlike 532nm DPSS modules, this direct-injection 520nm diode starts instantly with lower power consumption and no warm-up time.

     It projects a crisp, highly visible green dot—ideal for indoor alignment, positioning, aiming references, and OEM integration in measuring or indicating instruments.

    • Inquiry Send Email

    Description



    12X40mm green laser module adjustable focus 520nm 1mW laser module

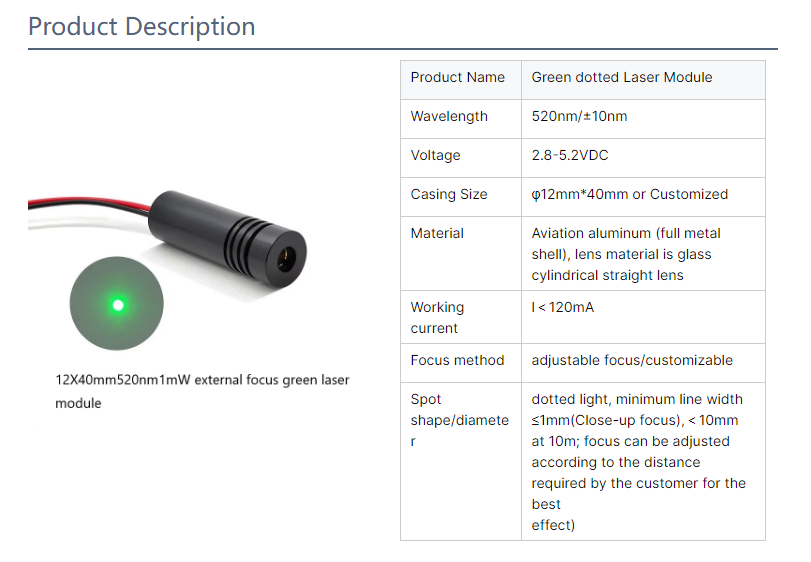

    Specifications
    • Wavelength: 520nm ±10nm (True Green Diode, most visible to human eye)
    • Output Power: ≤1mW (CW, Class II / Class 2)
    • Beam Pattern: Dot (Spot) — Line / Cross optional
    • Lens: Optical Glass Collimating Lens (focus adjustable via front cap)
    • Operating Voltage: DC 2.8V–5V (typical 3V or 5V; 12V version optional)
    • Operating Current: <40mA
    • Spot Size: Adjustable (e.g. ≤1mm @ 1m after focus)
    • Beam Divergence: <1.0 mrad

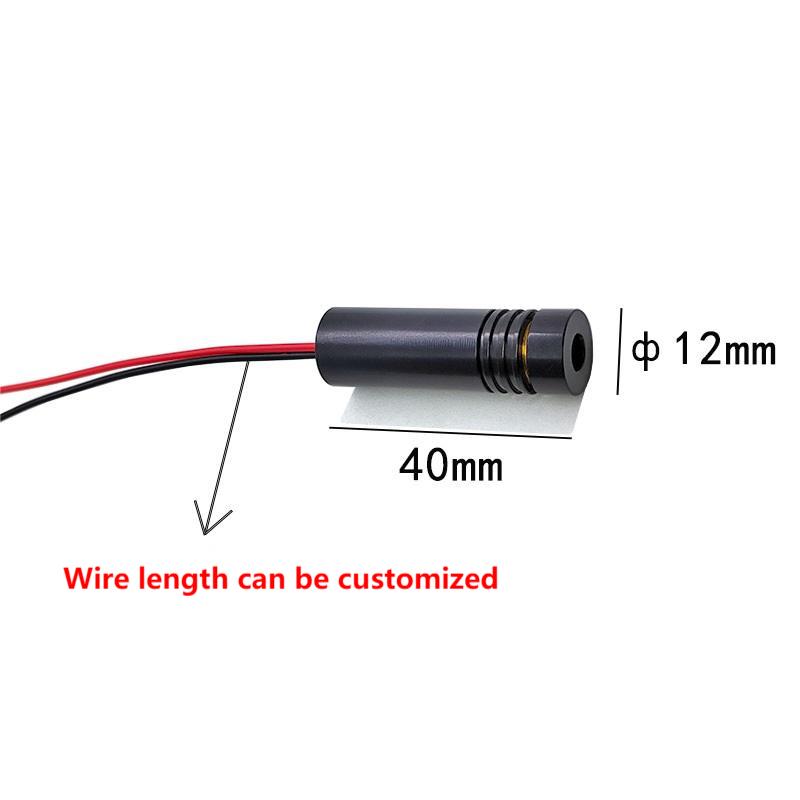

    • Housing: Φ12×40mm Black Anodized Aluminum (static & reverse polarity protected)
    • Lead Wire: Red(+)/Black(−) 100–150mm or JST connector (optional)
    • Working Temp.: -10°C to +50°C
    • Storage Temp.: -40°C to +80°C
    • Lifetime: >8,000 hrs
    Applications
    • Indoor alignment & positioning reference
    • Gun sight / optical instrument aiming dot
    • Measuring tools & spirit level indicator
    • PCB board alignment & SMT positioning mark
    • Medical / analytical instrument indicator
    • DIY electronics & hobbyist laser projects
