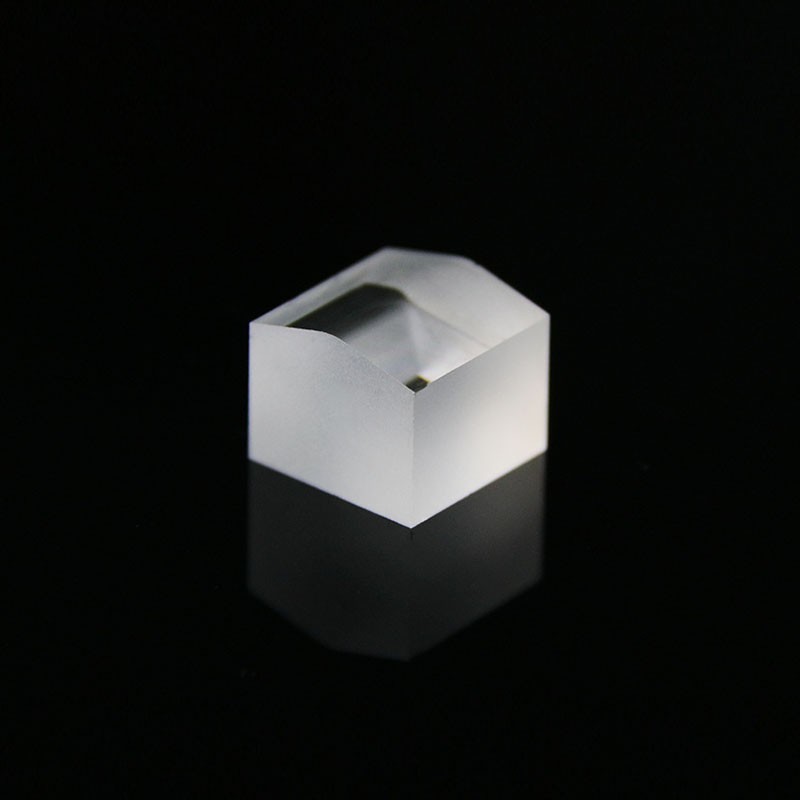

15 degrees square Powell Lens AR Coated Powell Prism

15 degrees square Powell Lens AR Coated Powell Prism

15 degree Powell prism

2.4mm glass optical prism

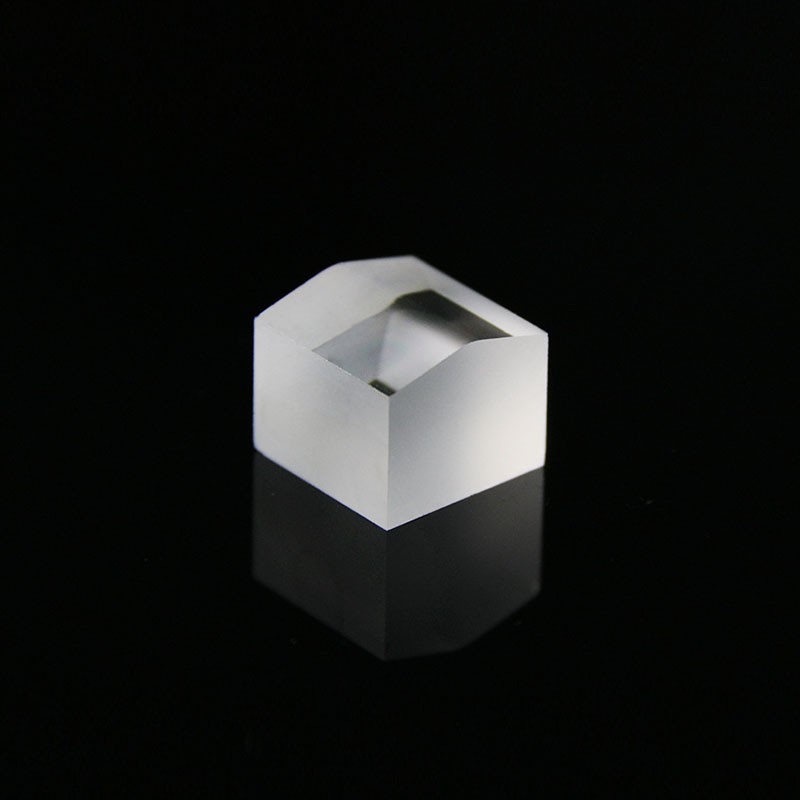

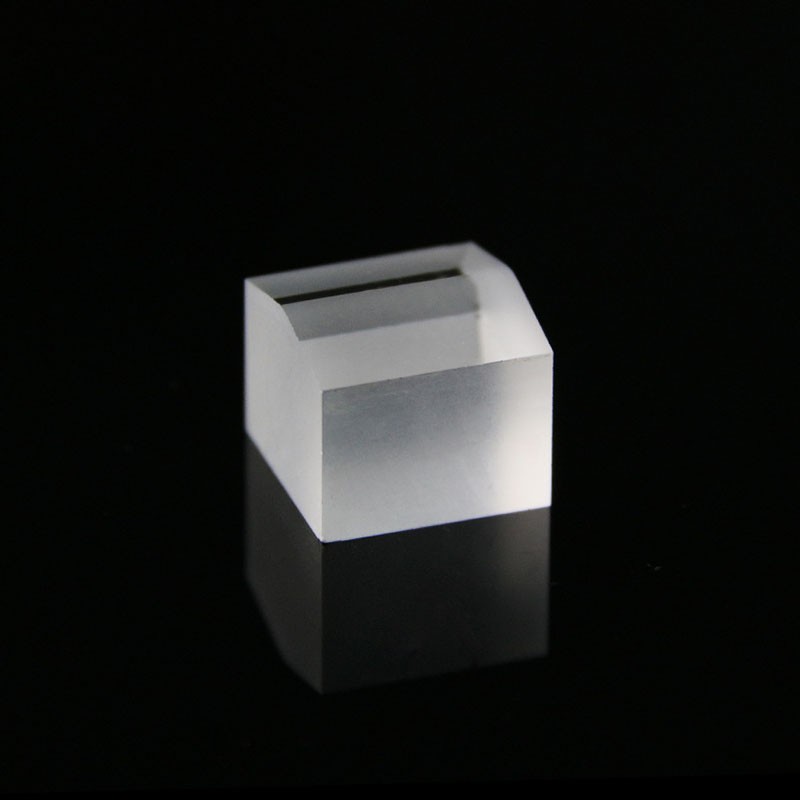

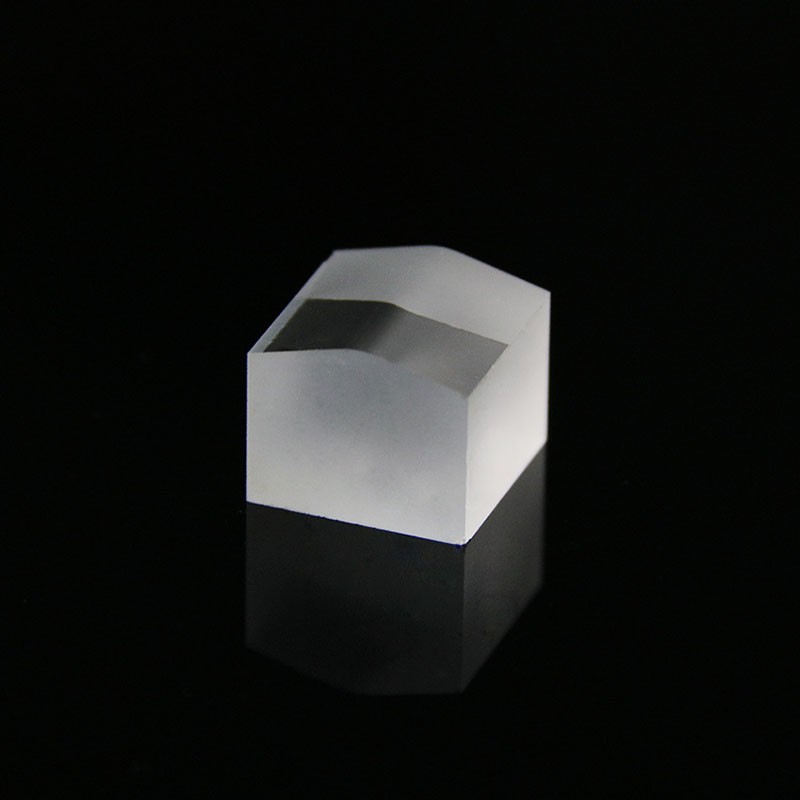

AR Coated Powell Prism for Laser Scanning

Industrial Powell Lens for Machine Vision

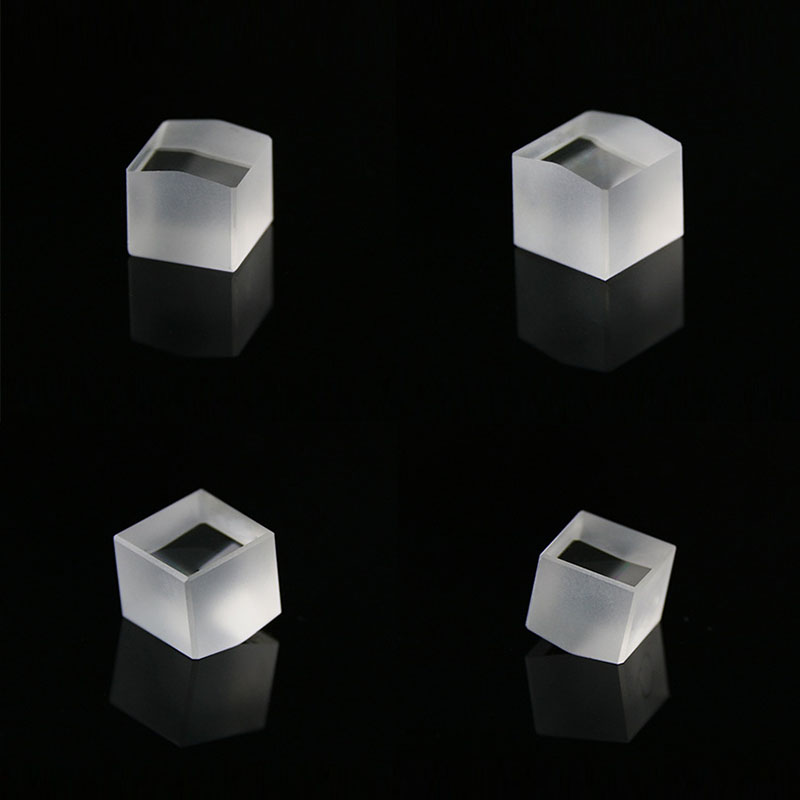

Square Powell Lenses are precision optical components designed to convert a collimated laser beam into a highly uniform laser line with excellent intensity distribution.

Compared with conventional cylindrical lenses, Powell lenses utilize a specially designed aspheric profile to generate a brighter, sharper, and more homogeneous laser line, significantly improving the performance of machine vision and laser measurement systems.

The square housing design provides convenient alignment and mounting in compact optical assemblies.

Square Powell lenses are widely used in industrial automation, machine vision, laser scanning, alignment systems, robotics, and 3D inspection equipment.

Various dimensions, fan angles, wavelengths, and optical coatings can be customized according to customer requirements.

Description

2.4mm spot diameter 15 degrees Fan Angle Powell Lens manufacture powell prism

Material: Optical Glass / BK7 /K9/LAK7/ Fused Silica/custom

Fan Angle: 5° to 120°

Input Beam Diameter: Customized

Wavelength: 405nm, 450nm, 520nm, 635nm, 650nm, 780nm, 808nm, 850nm, 980nm, 1064nm

Surface Quality: 60-40 Scratch-Dig (40-20 Available)

Surface Accuracy: λ/4 @ 632.8nm

Clear Aperture: >90%

Coating: AR Coating Available

Transmission: >95%

Fan Angle Tolerance: ±0.5° to ±1°

Dimension Tolerance: ±0.02mm

Operating Temperature: -20°C to +80°C

Mounting: Unmounted or Custom Housing Available

OEM/ODM Service: Supported

Features

Generates highly uniform laser lines
Superior intensity distribution compared to cylindrical lenses
Compact square design for easy installation
High optical transmission efficiency
Available for visible and infrared laser wavelengths
Custom fan angles and dimensions
Excellent stability for industrial environments
Suitable for high-precision laser applications

Applications

Machine Vision

Used for industrial inspection, defect detection, dimensional measurement, and automated quality control.

Laser Alignment

Provides precise laser line projection for positioning, alignment, and calibration systems.

3D Laser Scanning

Creates uniform laser lines for profile measurement and three-dimensional surface reconstruction.

Industrial Automation

Widely applied in robotics, conveyor inspection, sorting systems, and smart manufacturing equipment.

Optical Measurement

Used in gauging, metrology instruments, and non-contact measurement systems.

Medical & Scientific Instruments

Suitable for laser imaging, laboratory equipment, and optical research applications.

We are professional manufacture on the optical lenses &lasers for over 20 years experience.

With the advanteges,we offer optical products in the fileds of University laboratory, Industry, Scientific research,Medical treatment, Mechanical equipments, lasers and Construction industry and so on.

We can provide optical lenses, optical prisms, high-precision Powell prisms, right-angle prisms, laser lenses, filters, aspherical lenses, collimating lenses, optical glass lenses, optical reflectors, cylindrical lenses, laser modules, laser heads, optical glued lenses, optical rod mirrors, etc.

Looking forward to communicating whether we have the opportunity to cooperate. For the lens/laser products you need, I would like to quote our competitive price.

Please contact for any custom needs,
