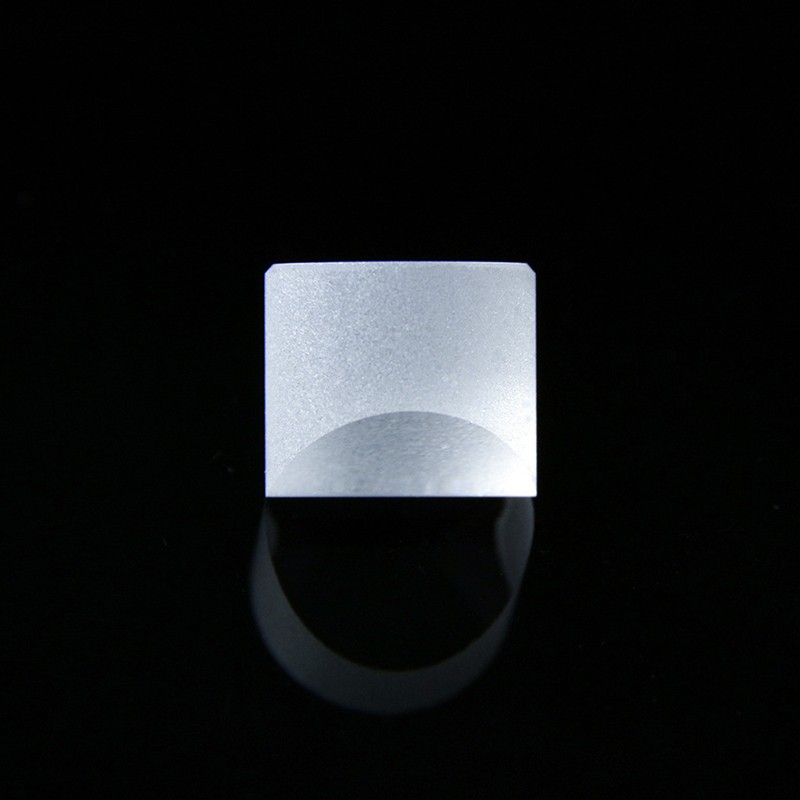

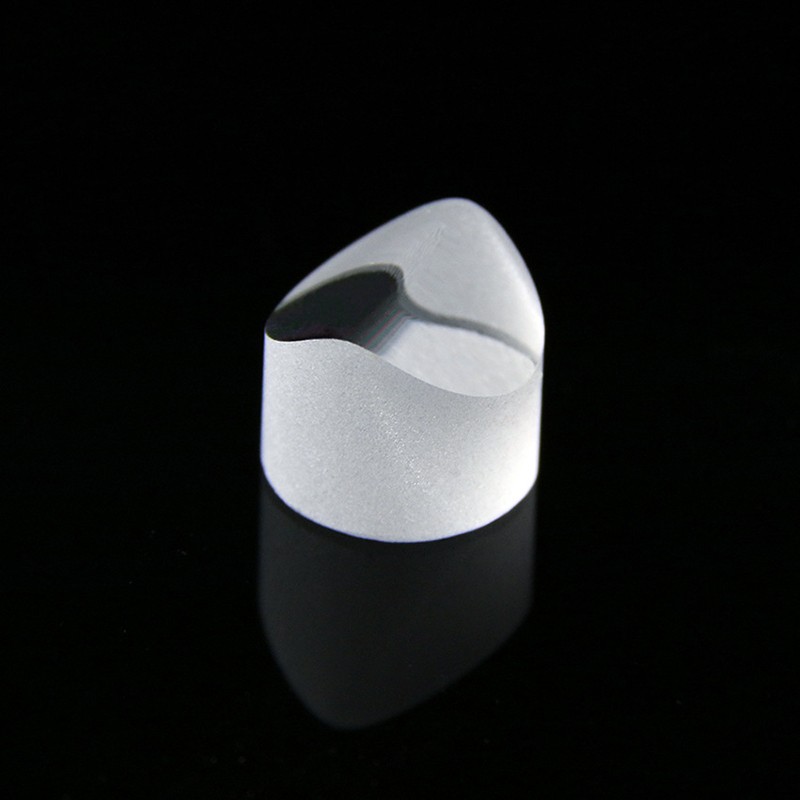

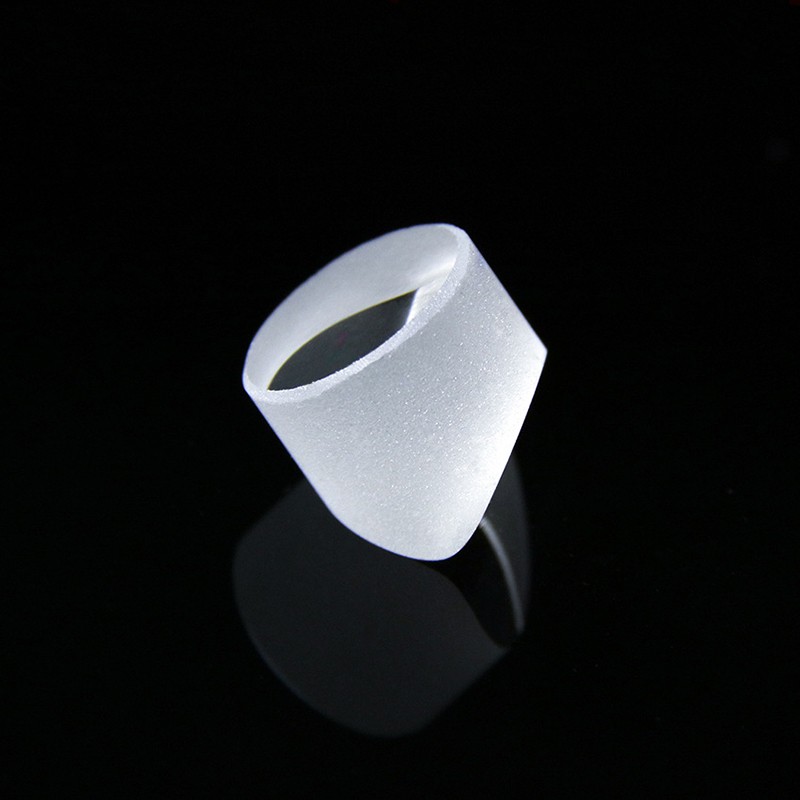

9mm diameter 8mm height High Precision Powell Lens for Laser Line Generation 5GB 40 degree optical Powell prism

9mm diameter 8mm height High Precision Powell Lens for Laser Line Generation 5GB 40 degree optical Powell prism

9mm Powell lenses

8mm optical prism

custom optical Powell Lens

Laser Line Generator Lens

Optical Powell Prisms are specialized optical components designed to transform a collimated laser beam into a highly uniform laser line with consistent intensity distribution.

Compared with conventional cylindrical lenses, Powell prisms provide superior line uniformity and improved illumination efficiency, making them ideal for precision laser applications.

Description

Factory Custom optical prism 9mm diameter 8mm height 5GB 40 degree optical Powell prism

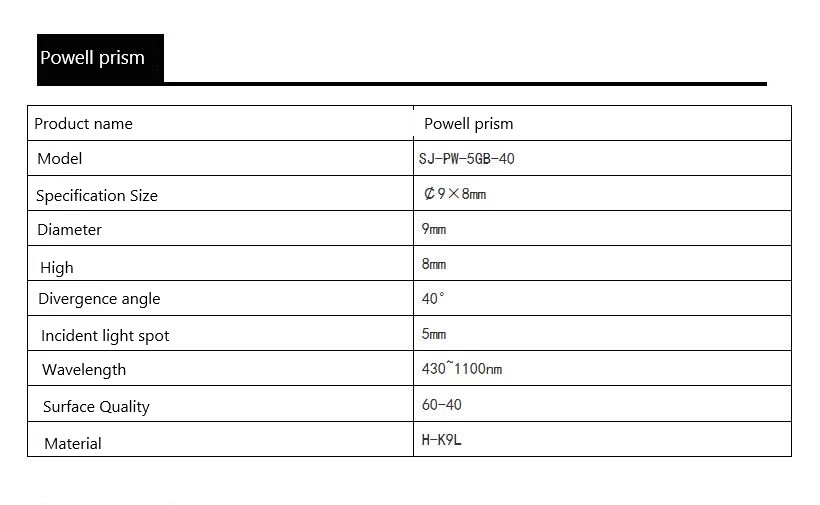

Specifications

Material: Optical Glass (BK7, Fused Silica, or Customized Materials)

Wavelength Range: 405nm – 1064nm (Customizable)

Fan Angle: 5° – 120°

Diameter: 5mm – 25mm

Surface Quality: 60-40 Scratch-Dig or Better

Surface Accuracy: λ/4 @ 632.8nm

Coating Options: AR Coating, Broadband AR Coating, Custom Coatings

Angle Tolerance: ±0.1° to ±0.5°

Custom Designs Available

Features

Generates highly uniform laser lines

Excellent energy distribution across the entire line

High optical transmission efficiency

Compact and durable design

Suitable for visible, UV, and infrared laser systems

Custom fan angles and wavelengths available

Applications

Optical Powell prisms are widely used in:

Machine Vision Systems

3D Laser Scanning

Industrial Inspection Equipment

Laser Alignment and Positioning

Robotics and Automation

Medical Imaging Devices

Semiconductor Inspection

Laser Measurement Systems

Barcode and Logistics Scanning

Scientific Research Instruments

We are professional manufacture on the optical lenses &lasers for over 20 years experience.
With the advanteges,we offer optical products in the fileds of University laboratory, Industry, Scientific research,Medical treatment, Mechanical equipments, lasers and Construction industry and so on.

We can provide optical lenses, optical prisms, high-precision Powell prisms, right-angle prisms, laser lenses, filters, aspherical lenses, collimating lenses, optical glass lenses, optical reflectors, cylindrical lenses, laser modules, laser heads, optical glued lenses, optical rod mirrors, etc.

Looking forward to communicating whether we have the opportunity to cooperate. For the lens/laser products you need, I would like to quote our competitive price.

Please contact for any custom needs,
Contact:Rebecca Xu

Email: rebecca@supplieroptical.com
