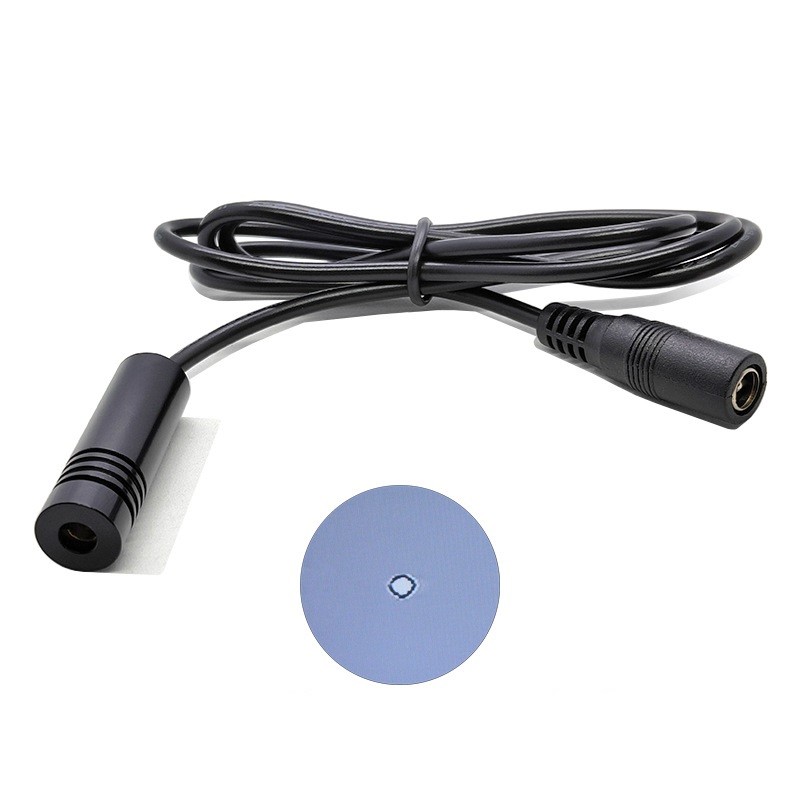

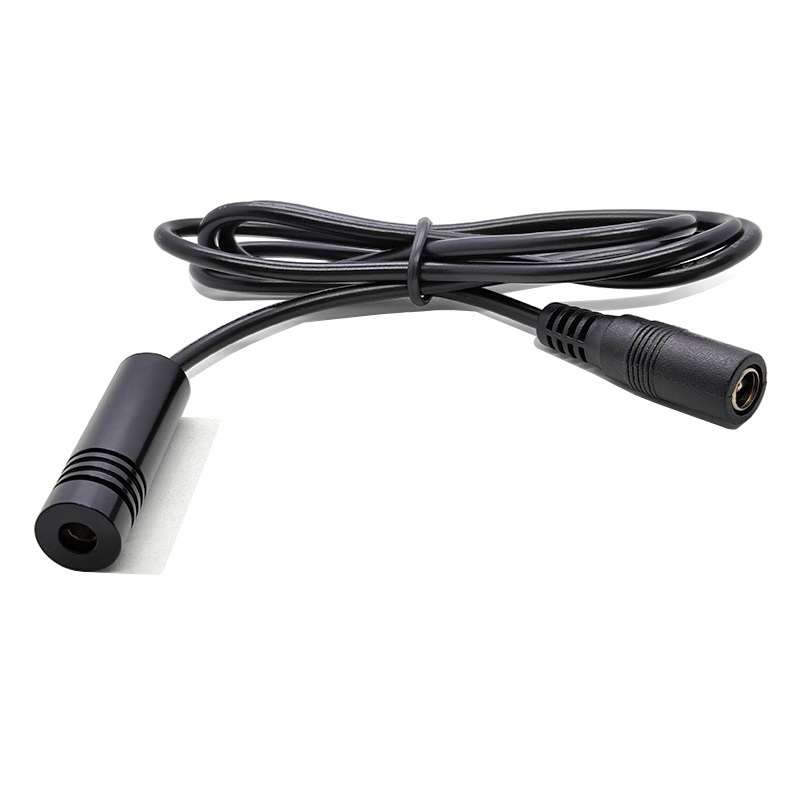

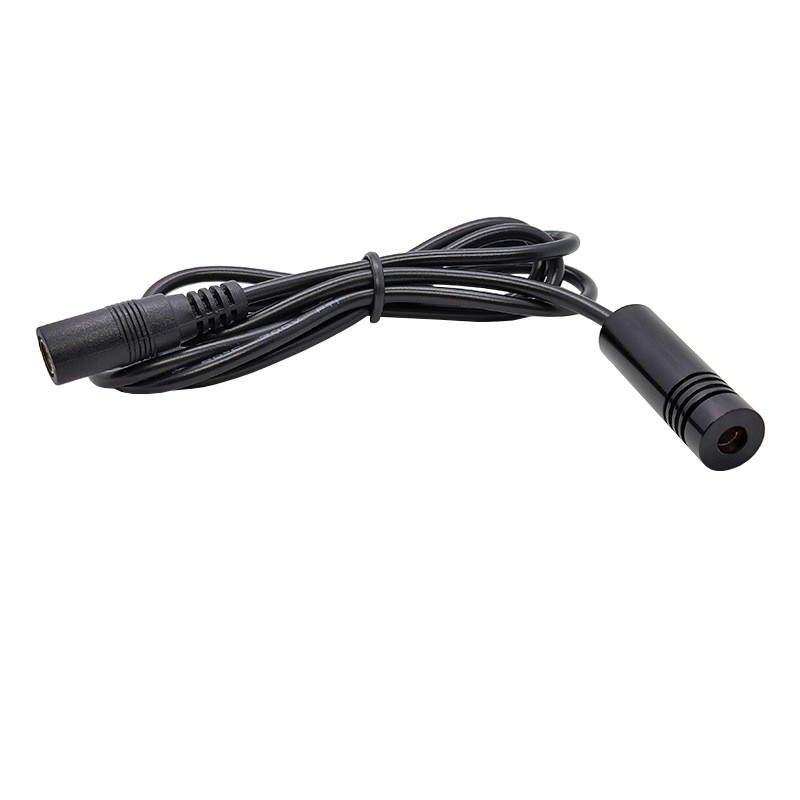

12X40mm 820nm 50mw high power dot laser module

12X40mm 820nm 50mw high power dot laser module

820nm 50mW laser module

820nm laser module

820nm dot laser module

custom 820nm laser module

Φ12×40mm near-infrared (IR) dot laser module with 820nm wavelength and 50mW output (Class 3B), equipped with an adjustable focus collimating lens (coated glass or PMMA) and built-in APC constant current driver.

The 820nm IR beam is invisible to the naked eye yet highly responsive to silicon-based sensors—ideal for optical alignment, photoelectric sensor triggering, LDS obstacle detection, night vision auxiliary illumination, and lab instrumentation requiring a stable medium-power IR point source.

Description

12X40mm820nm50mW external focus high power infrared dot laser module

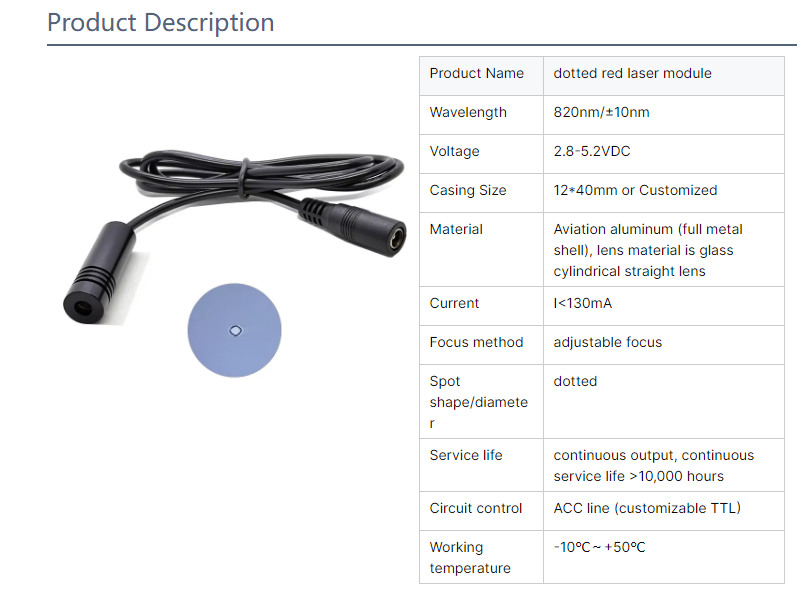

Specifications

Wavelength: 820nm ±10nm (Near-Infrared / Invisible)
Output Power: 50mW (CW, Class 3B)
Beam Pattern: Dot (Spot), focus adjustable via front cap
Lens: Coated Glass or PMMA Collimating Lens (user focusable)
Operating Voltage: DC 3V–5V (typical 5V; 12V optional with driver)
Operating Current: <150mA
Spot Size: Adjustable (collimated dot, e.g. ≤1mm @ 1m)
Beam Divergence: <1.0 mrad

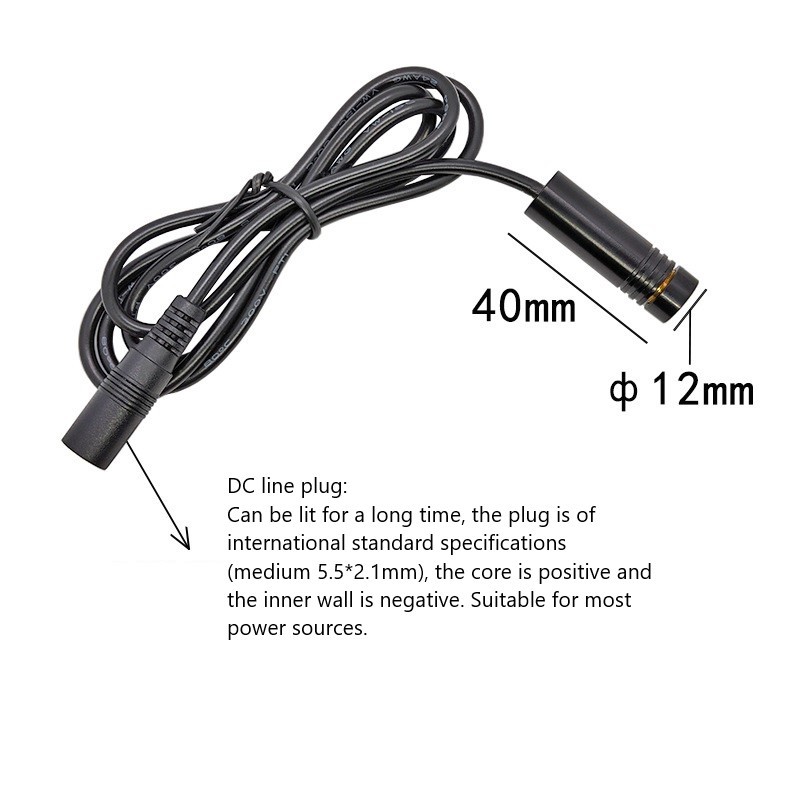

Housing: Φ12×40mm Black Anodized Aluminum (ESD & reverse polarity protected)
Lead Wire: Red(+)/Black(−) 100–150mm or JST connector (optional)
Working Temp.: -10°C to +50°C
Storage Temp.: -40°C to +80°C
Lifetime: >8,000 hrs
Options: Fixed focus / TTL modulation / custom wire length & connector

Applications

Optical alignment & IR beam path referencing
Photoelectric sensor & IR trigger source
LDS / sweeping robot obstacle detection reference
Night vision auxiliary IR point source (silicon sensor responsive)
Scientific lab experiment & test bench IR source
OEM integration in measuring & detection instruments

We are professional manufacture on the optical lenses &lasers for over 20 years experience.
With the advanteges,we offer optical products in the fileds of University laboratory, Industry, Scientific research,Medical treatment, Mechanical equipments, lasers and Construction industry and so on.

We can provide optical lenses, optical prisms, high-precision Powell prisms, right-angle prisms, laser lenses, filters, aspherical lenses, collimating lenses, optical glass lenses, optical reflectors, cylindrical lenses, laser modules, laser heads, optical glued lenses, optical rod mirrors, etc.

Looking forward to communicating whether we have the opportunity to cooperate. For the lens/laser products you need, I would like to quote our competitive price.

Please contact for any custom needs,
