Reflective Lenses

reflective mirror

Custom laser optical glass reflective lens

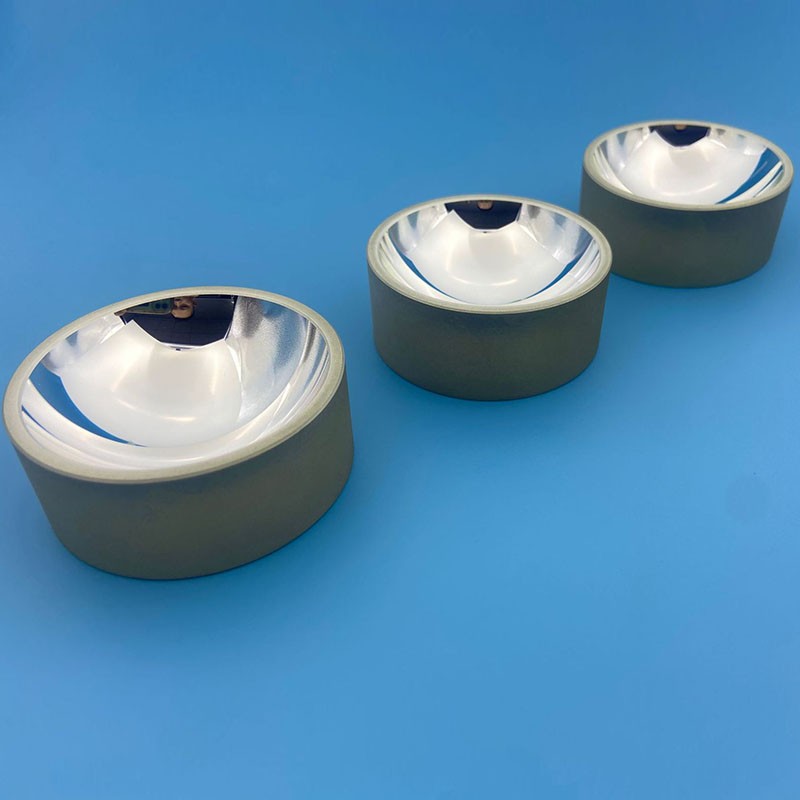

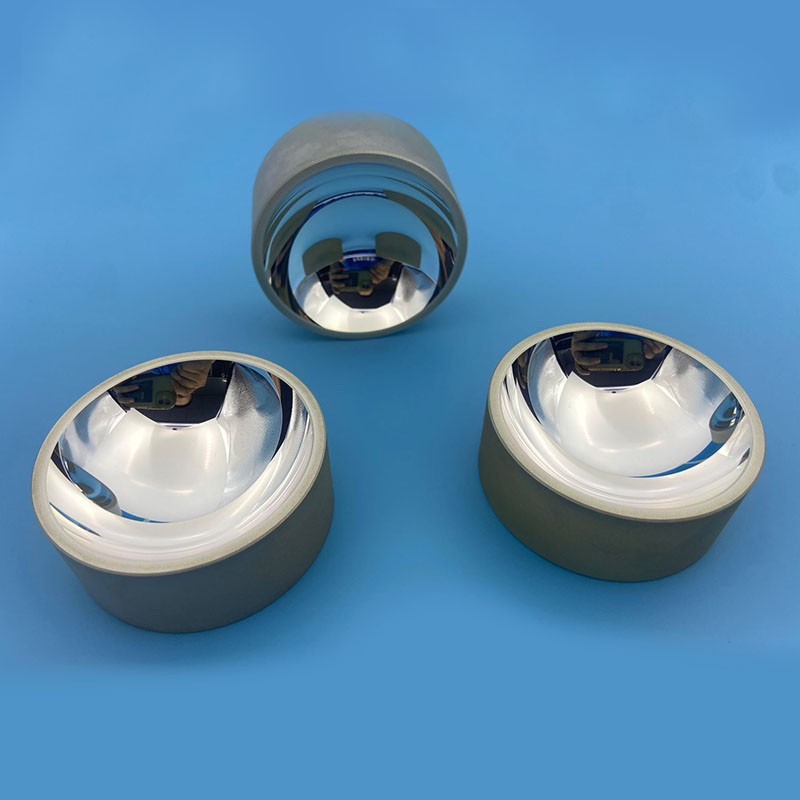

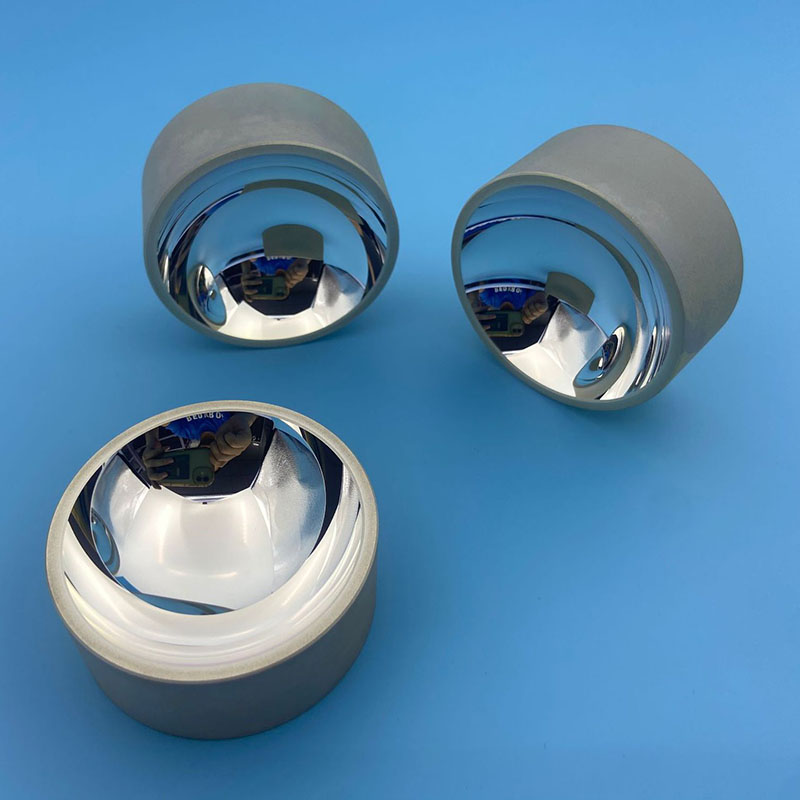

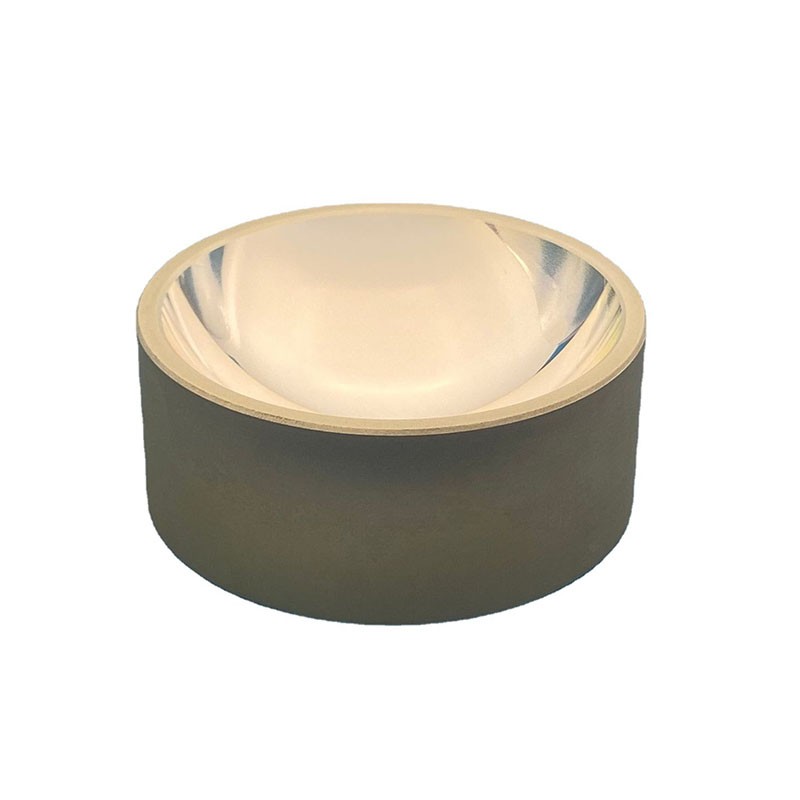

plano-concave reflector lens

We manufacture customized plano-concave (diverging) spherical lenses and plano-concave spherical mirrors from N-BK7, fused silica, or IR materials (Si, Ge, ZnSe) per customer drawing.

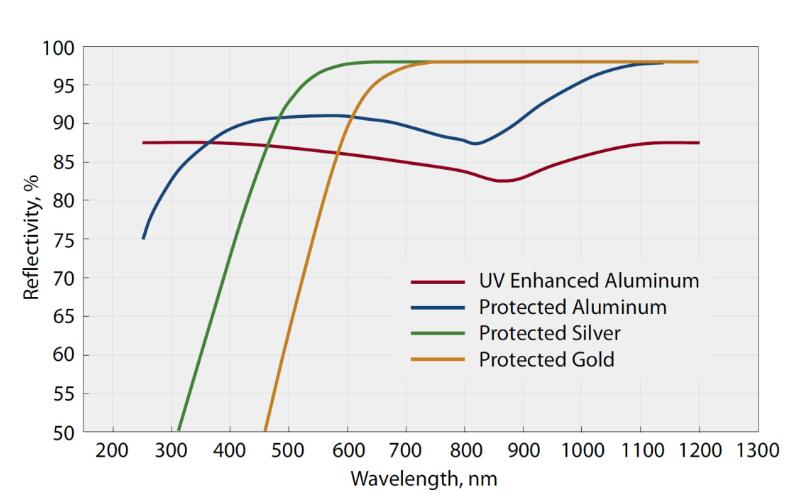

Lenses are supplied with AR/BBAR or V-coating on curved and/or plano surfaces; mirrors receive protected gold, silver, aluminum, or dielectric HR coating on the concave surface with the plano side typically blackened or AR-coated.

Ideal for beam expansion/divergence control, telescopic optics, laser cavity mirrors, and IR imaging systems. Full in-house metrology ensures λ/10 surface irregularity and precise radius control. OEM/ODM drawings accepted (DWG / STEP / Zemax prescription).

Description

Customized plano-concave lens manufacturers custom coating plano-concave spherical reflective mirror

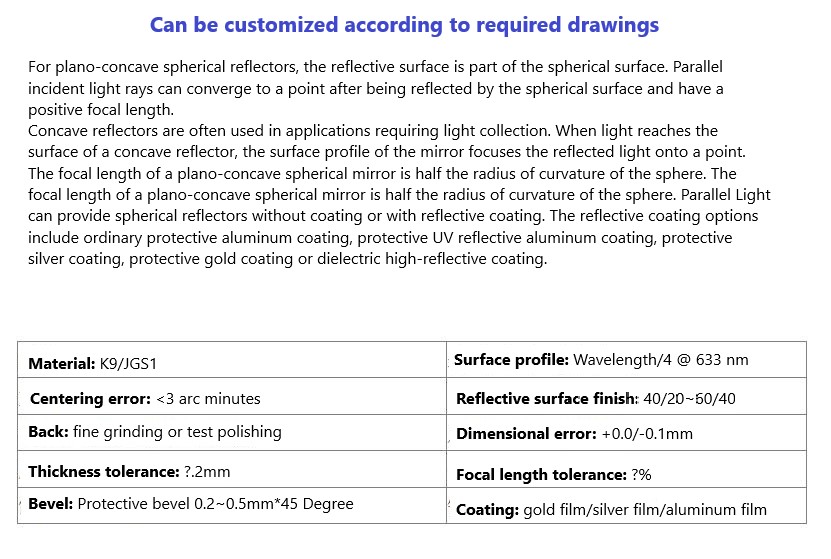

Specifications (Lens Version)

Lens Type: Plano-Concave (PCV) Spherical — concave surface + plano back
Material: N-BK7 (K9) / UV Fused Silica (JGS1) / CaF₂ / Si / Ge / ZnSe (on request)
Diameter: 5 mm – 300 mm (custom)
Radius of Curvature (ROC): Per design (typical R = 20 mm – 500 mm+; sign convention: R<0 for CCW viewed from object side)
Center Thickness / Edge Thickness: Per lens formula; CT tolerance ±0.02 mm
Diameter Tolerance: +0.00 / −0.10 mm (precision ±0.02 mm)
Surface Quality: 60-40 / 40-20 / 20-10 Scratch-Dig
Surface Irregularity: λ/4 or λ/10 @ 632.8 nm
Centration (Decenter): < 3 arcmin
Clear Aperture: ≥ 85%–90% of diameter
Coating (Lens):

— Uncoated

— BBAR @ 400–700 nm / 630–680 nm / 1064 nm / 3–5 µm / 8–12 µm

— V-coating @ design wavelength

— Both sides AR / one side AR + one side MgF₂
Edge Treatment: Ground; edge blackening (optical ink) available

We are professional manufacture on the optical lenses &lasers for over 20 years experience.
With the advanteges,we offer optical products in the fileds of University laboratory, Industry, Scientific research,Medical treatment, Mechanical equipments, lasers and Construction industry and so on.

We can provide optical lenses, optical prisms, high-precision Powell prisms, right-angle prisms, laser lenses, filters, aspherical lenses, collimating lenses, optical glass lenses, optical reflectors, cylindrical lenses, laser modules, laser heads, optical glued lenses, optical rod mirrors, etc.

Looking forward to communicating whether we have the opportunity to cooperate. For the lens/laser products you need, I would like to quote our competitive price.

Please contact for any custom needs,
Contact:Rebecca Xu
