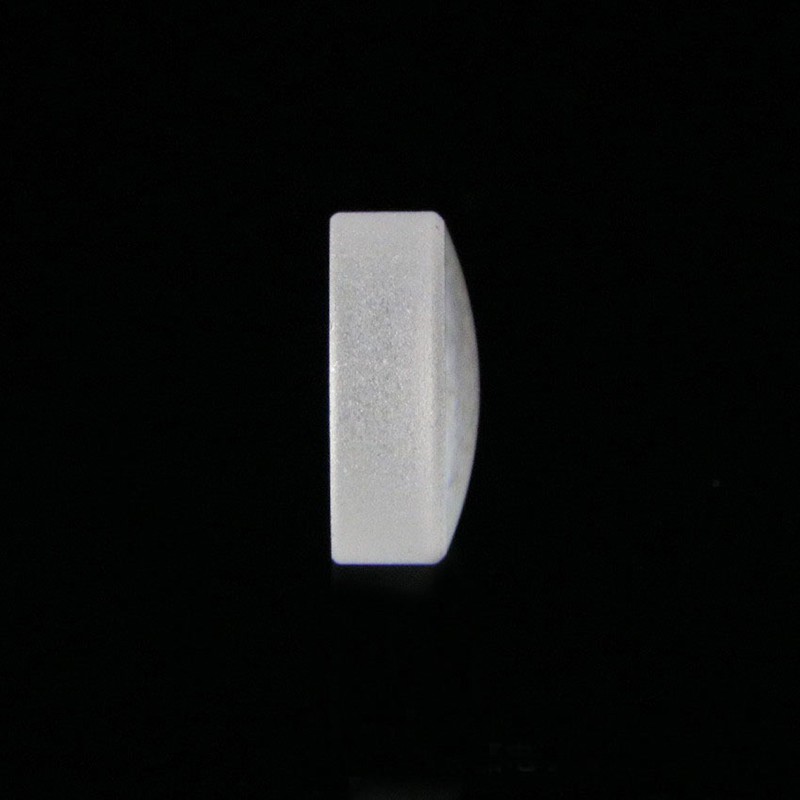

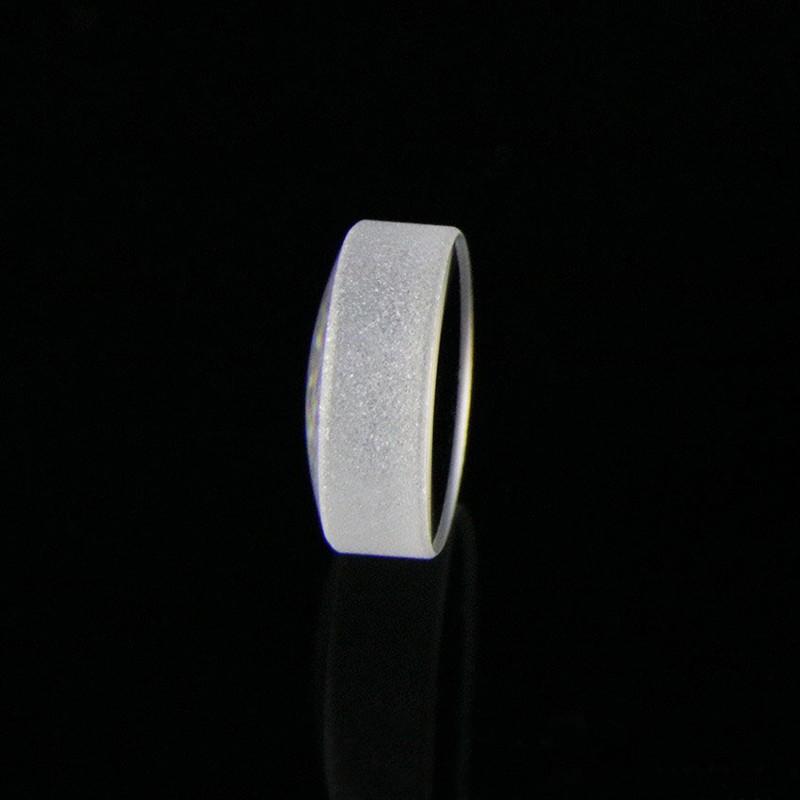

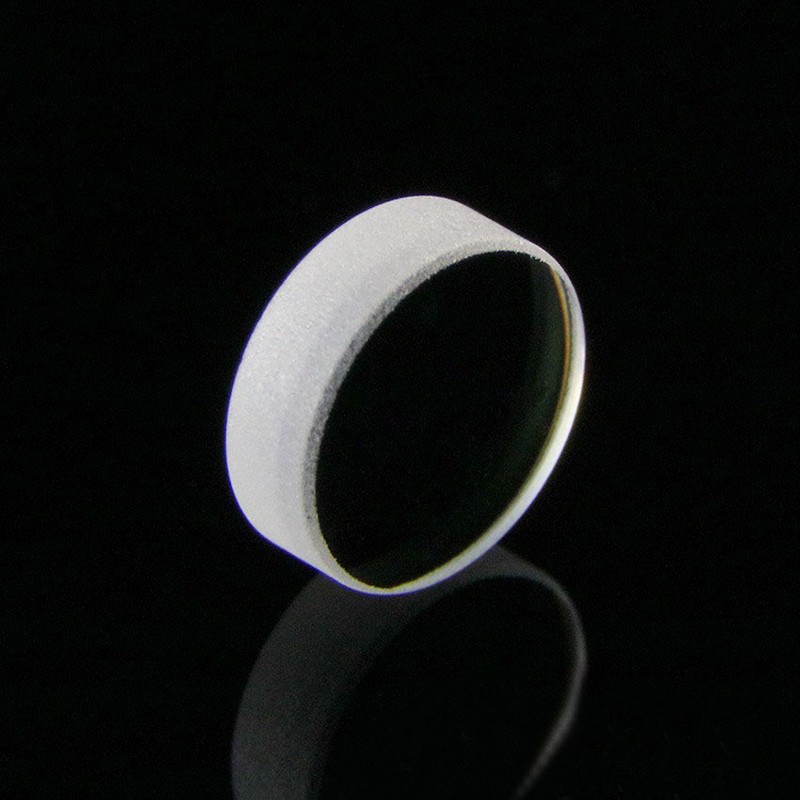

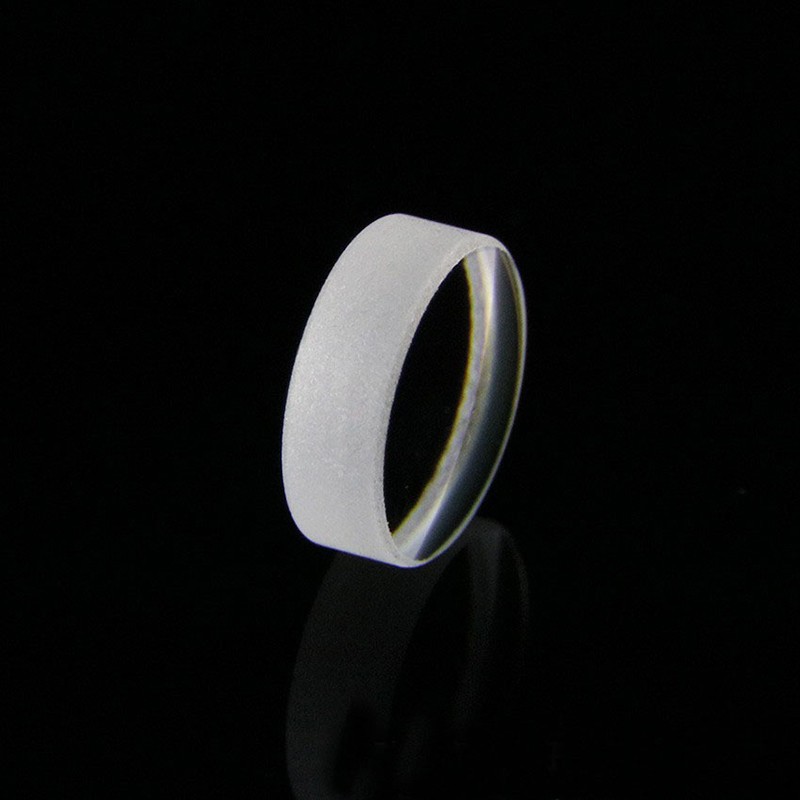

High-precision optical glass aspherical singlet lens with 6mm clear aperture, 12mm effective focal length (f/2), and center thickness 2.5mm (design-specific).

Fabricated from N-BK7 or K9 crown glass with optimized aspheric profile to eliminate spherical aberration and improve spot quality compared to plano-convex spherical lenses.

Suitable for compact visible or NIR imaging, laser diode collimation, condenser optics, and OEM micro-optical modules. Broadband AR coating 400–700nm or V-coat at laser wavelengths available. Custom glass type, NA, and conjugate distance supported.

Description

6mm diameter 12mm focal length center 2.5mm thick optical lens aspherical lens

Specifications:

Lens Type: Optical Glass Aspherical Singlet Lens (Molded / Ground & Polished)

Material: N-BK7 (nd=1.5168, νd=64.2) / K9 (H-K9L) / D-ZK3 / Custom Low-Dispersion Glass

Diameter (Clear Aperture): 6mm (Ø6mm)

Effective Focal Length (EFL): 12mm (Custom 5–100mm available)

Back Focal Length (BFL): Specified per design (typically ~10–11.3mm for EFL=12mm)

Center Thickness: 2.5mm (Design Value) / Custom ±0.02mm

Numerical Aperture (NA): ~0.23–0.27 (depends on beam clearance)

Dimension Tolerance: ±0.02mm / ±0.05mm

Center Thickness Tolerance: ±0.02mm

Surface Figure (Base Sphere): λ/4 @ 632.8nm

Surface Roughness (RMS): <20nm (Molded) / <5nm (Polished)

Surface Quality (Scratch-Dig): 60-40 / 40-20 / 20-10

Clear Aperture: ≥90% of Ø6mm

Edge Treatment: Ground / Edge Blackened (Optional) / Bevel 0.1mm × 45°

Aspheric Coefficients: Optimized per wavelength band (available on request)

Coating Options:

Uncoated
MgF₂ AR @ 550nm
Broadband AR 400–700nm (Ravg<0.5%)
Broadband AR 600–1050nm (VIS-NIR)
V-Coating @ 532nm / 635nm / 850nm / 940nm / 1064nm / Custom

Operating Wavelength: 400–700nm (VIS Standard), 350–2200nm (Substrate Dependent)

Transmission: >99% per surface with AR coating

Operating Temperature: -40°C to +80°C
