We provide custom processing of high-quality optical components from single-crystal and polycrystalline Barium Fluoride (BaF₂).

BaF₂ offers excellent broadband transmission from the vacuum ultraviolet (VUV) to the long-wave infrared (LWIR) and is highly resistant to high-energy radiation.

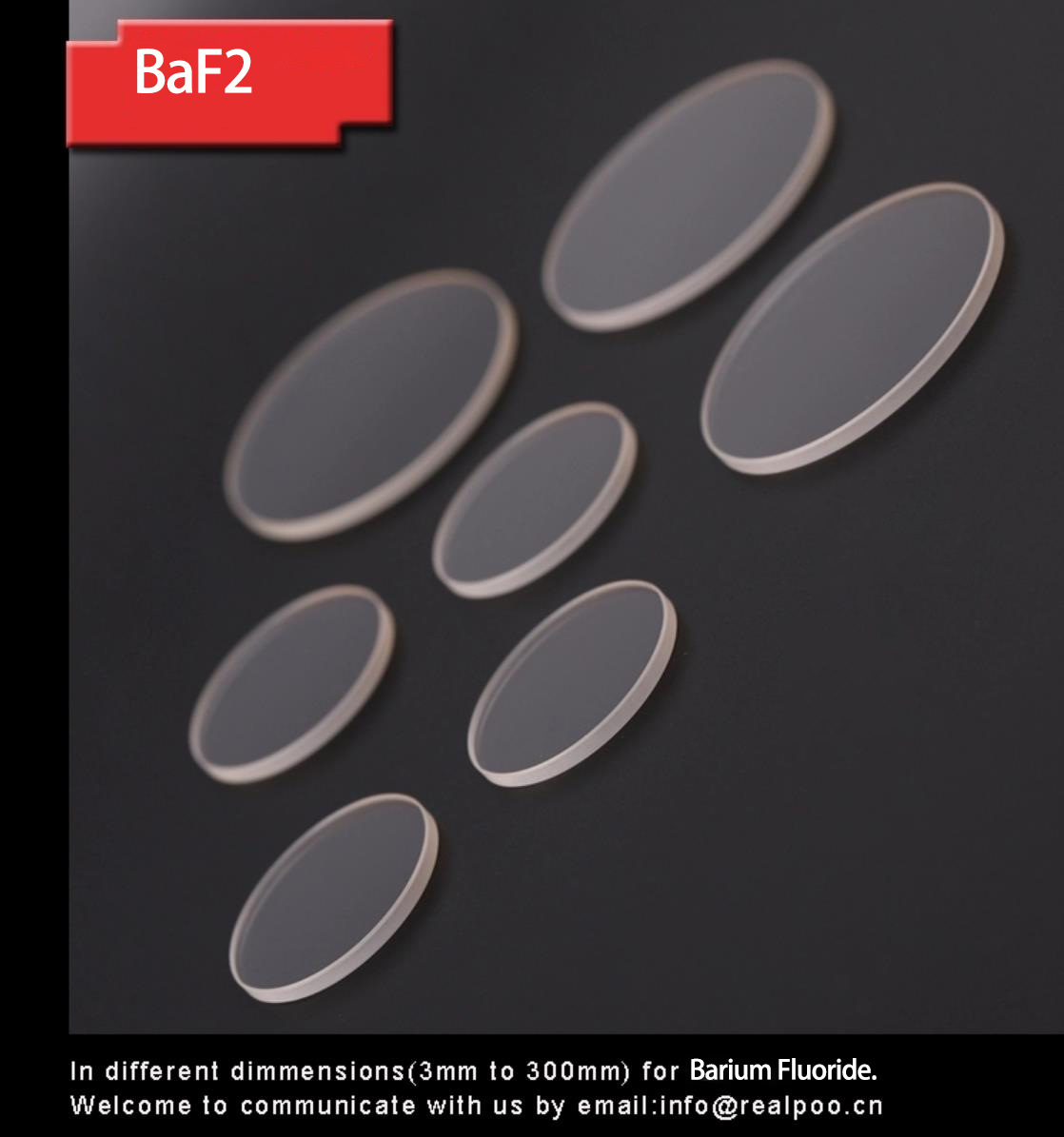

We can manufacture various standard and non-standard sizes, including 5mm, 30mm, 50mm, 100mm, and up to 200mm in diameter.

Description

BaF2 Barium Fluoride Optical window lenses custom 50mm 30mm 100mm 5mm arium BaF2 lens processing window lens

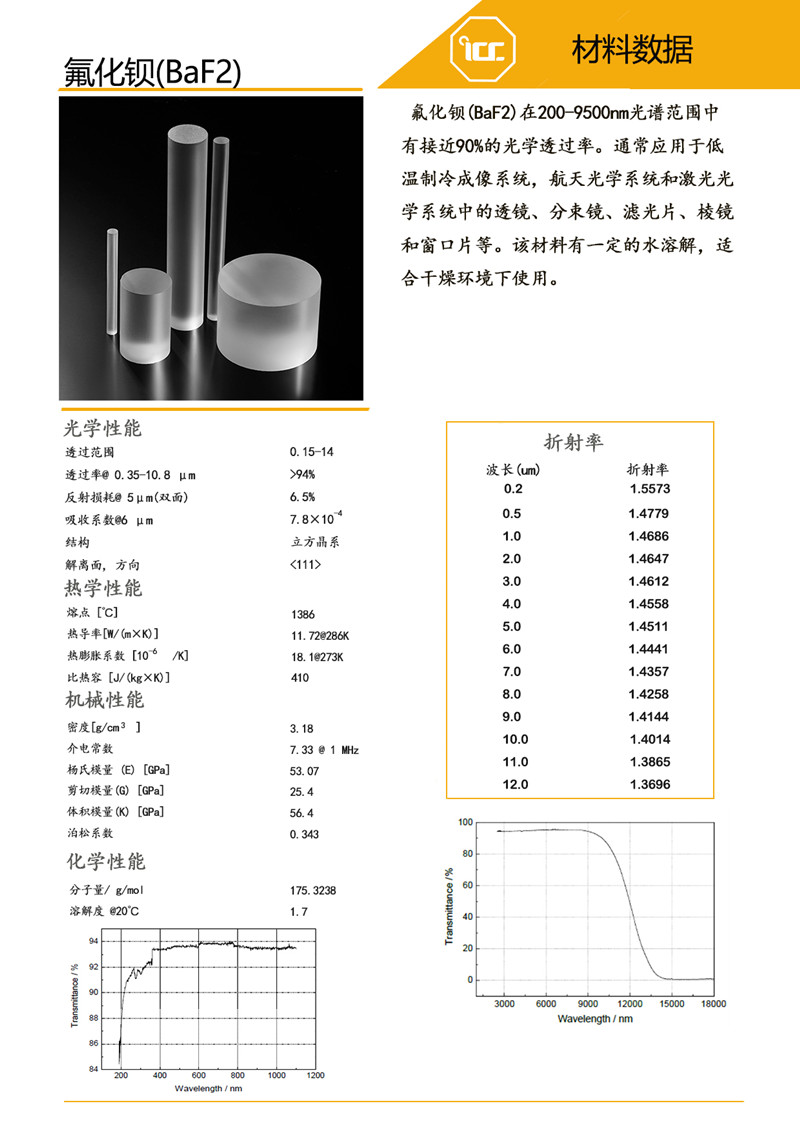

Material Properties

Transmission Range: 0.15 μm – 12.5 μm (from VUV to LWIR)
Refractive Index: ~1.48 at visible wavelengths; low refractive index enables high transmission even without AR coatings
Radiation Resistance: The most resistant optical fluoride to high-energy radiation (X-rays, gamma rays), making it ideal for harsh environments
Thermal Stability: Can operate in dry environments up to 800°C, though it is sensitive to moisture and thermal shock

Available Products and Sizes

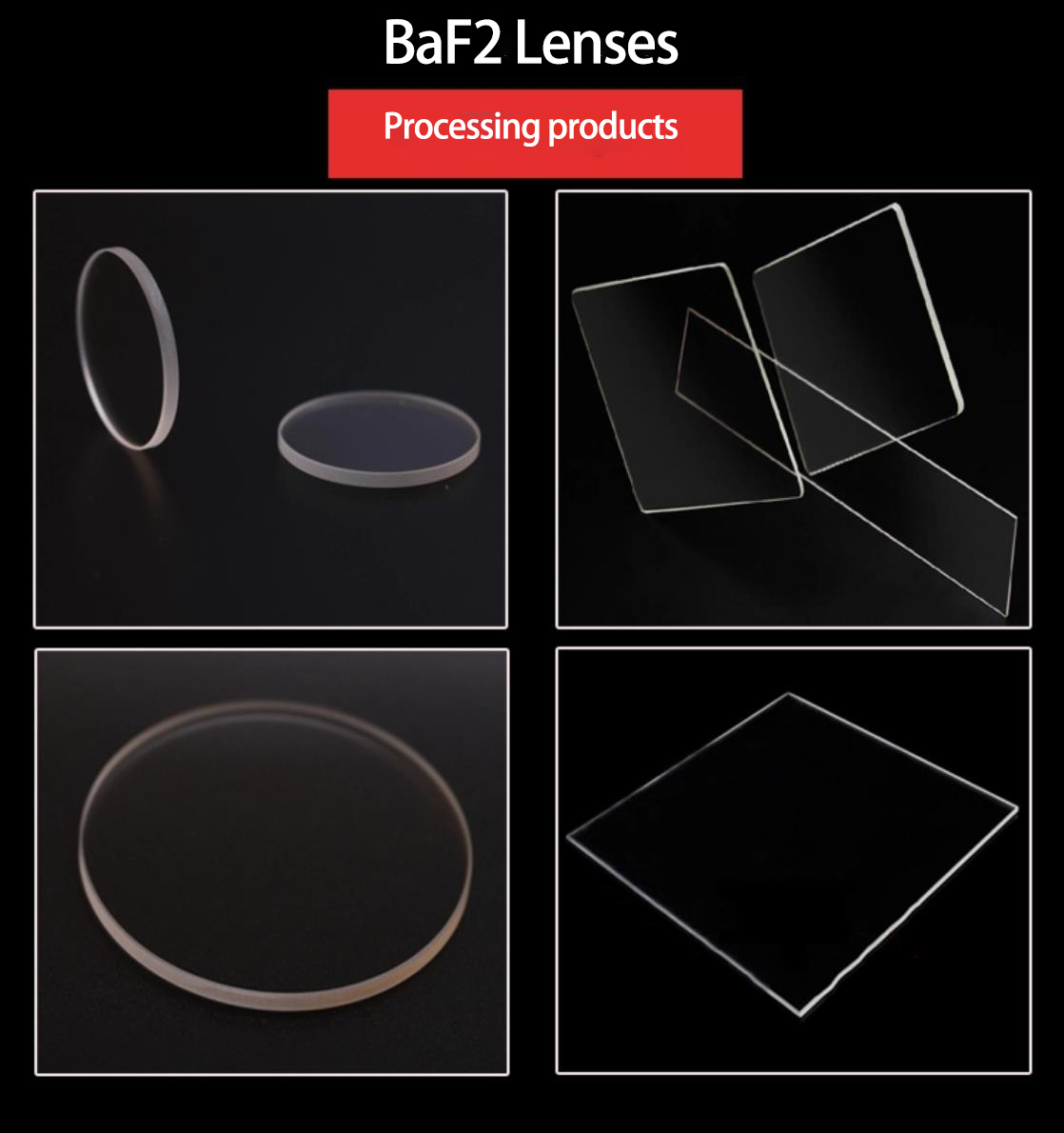

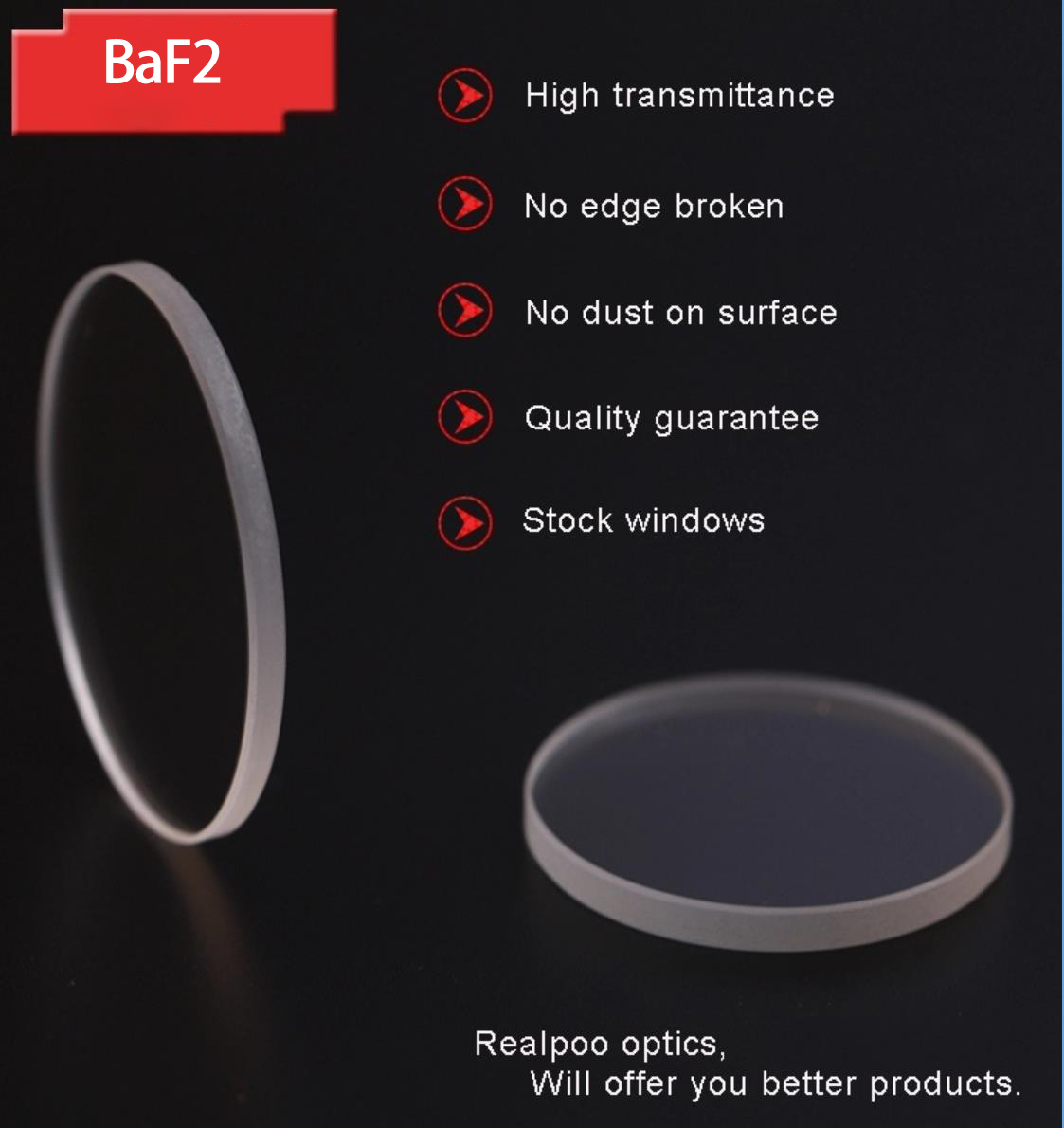

Plano-Parallel Windows

Custom flat windows available in diameters from 5mm to 200mm and thicknesses from 0.12mm to 60mm. Standard stock sizes include 50mm × 3mm, 50.8mm × 5mm, and 100mm × 3mm. High-precision parallelism down to 10 arc seconds is achievable.

Spherical Lenses

Available in plano-convex, bi-convex, and plano-concave configurations with diameters ranging from 5mm to 150mm. These are commonly used in cryogenic imaging systems, FTIR spectroscopy, and laser optics.

Aspheric Lenses

Ultra-precision aspheric BaF₂ lenses manufactured using diamond turning followed by MRF (Magnetorheological Finishing) correction polishing. This process achieves surface figure errors (PV) below 100nm and surface roughness (Ra) under 0.01μm.

Custom Processing Capabilities

Advanced Polishing: CNC grinding and polishing, gel disc polishing, ring polishing, and MRF for ultra-high precision surfaces.
Surface Quality: Standard quality of 60-40 Scratch-Dig, with options up to 20-10. Surface irregularity can be controlled to λ/10 or better.
Coating Options: Uncoated, MgF₂, UV-AR, VIS-NIR, SWIR, YAG-BBAR, and other broadband anti-reflection coatings upon request.

We are professional manufacture on the optical lenses &lasers for over 20 years experience.
With the advanteges,we offer optical products in the fileds of University laboratory, Industry, Scientific research,Medical treatment, Mechanical equipments, lasers and Construction industry and so on.

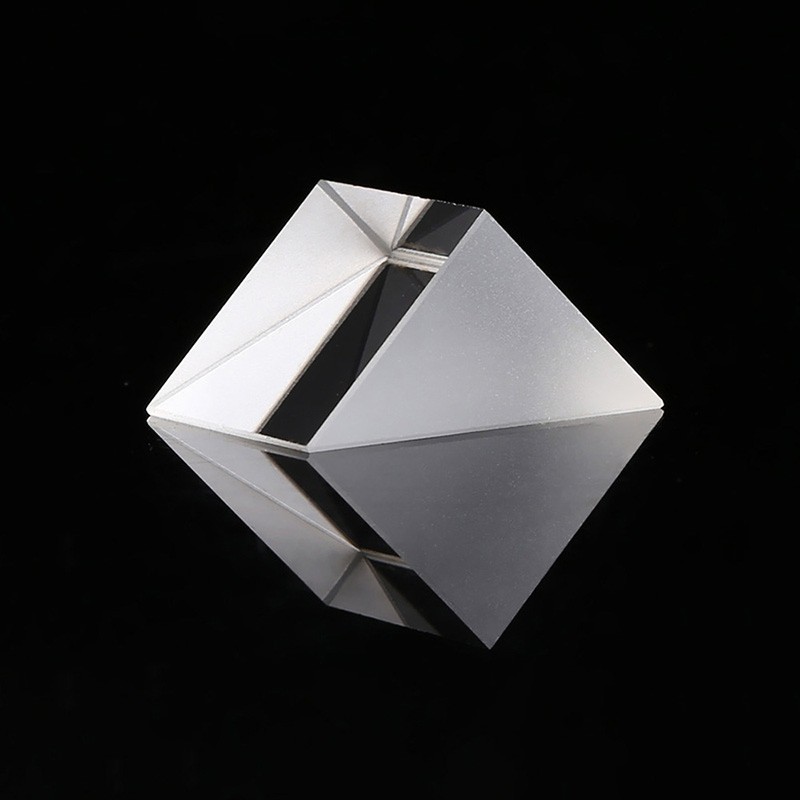

We can provide optical lenses, optical prisms, high-precision Powell prisms, right-angle prisms, laser lenses, filters, aspherical lenses, collimating lenses, optical glass lenses, infrared lens,optical reflectors, cylindrical lenses, laser modules, laser heads, optical glued lenses, optical rod mirrors, etc.

Looking forward to communicating whether we have the opportunity to cooperate. For the lens/laser products you need, I would like to quote our competitive price.

Please contact for any custom needs,
