Description

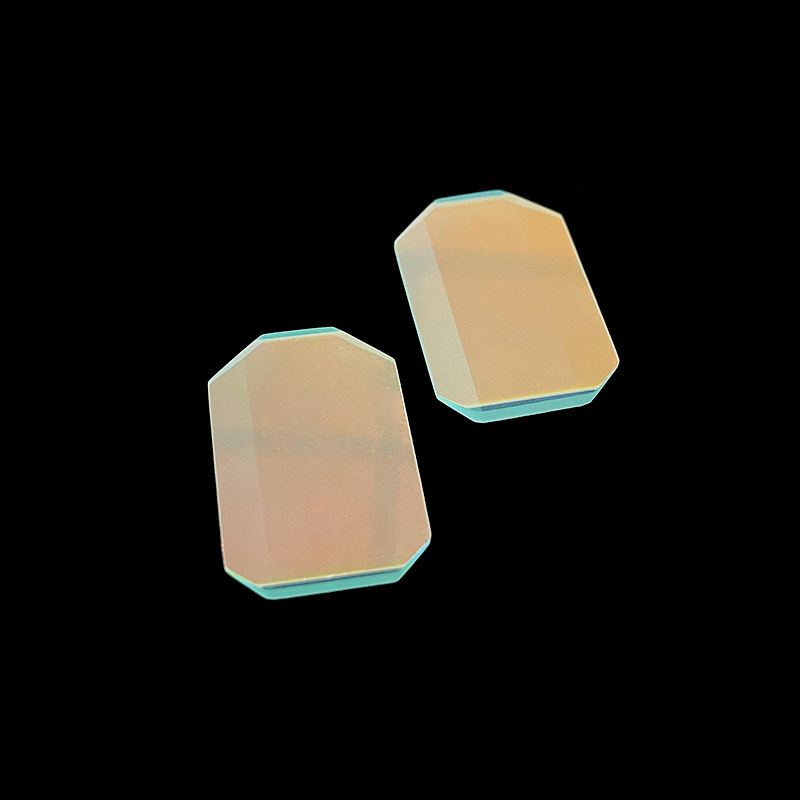

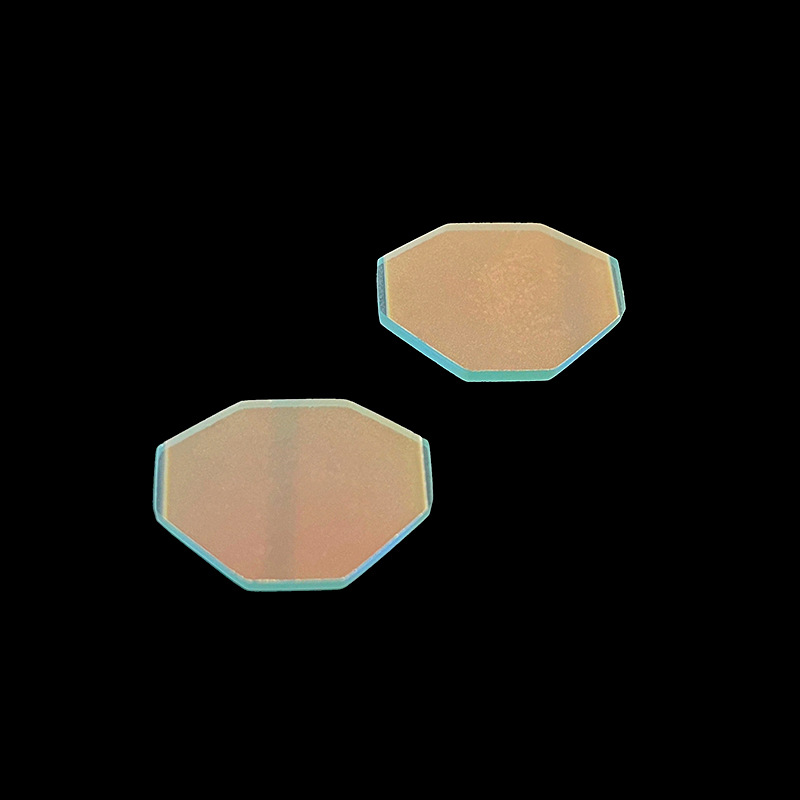

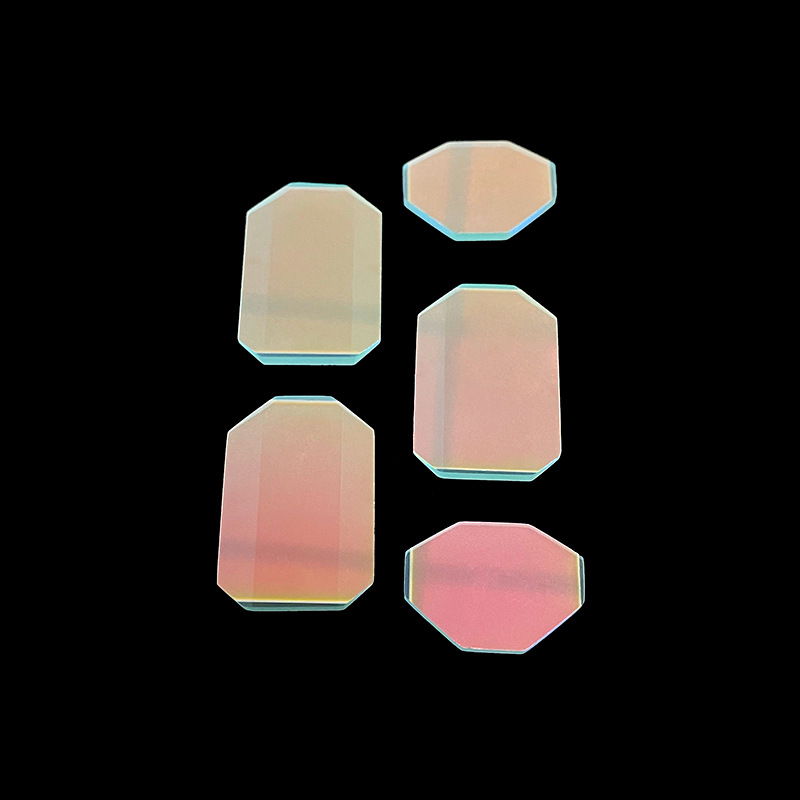

Manufacturer customized laser galvanometer automotive welding laser protection window lens
Specifications
-
Material:— JGS1 UV-Grade Fused Silica (imported — low OH⁻, high damage threshold, low autofluorescence)— K9 Optical Glass (N-BK7 equivalent — cost-effective for lower power / less demanding environments)— Chemical Strengthening (optional — ion-exchange tempered for improved thermal shock resistance)
-
Diameter Range: 20 mm – 140 mm (custom per head model; common Ø25 / Ø30 / Ø38 / Ø50 / Ø60 / Ø80 / Ø100 mm)
-
Thickness: 1.0 mm – 9.0 mm (typical 1.5 / 2.0 / 3.0 / 5.0 mm per head design)
-
Diameter Tolerance: +0.0 / −0.05 mm
-
Thickness Tolerance: ±0.05 mm
-
Surface Figure: λ/4 @ 632.8 nm (λ/6 or λ/10 on request)
-
Surface Quality: 40-20 / 20-10 Scratch-Dig
-
Parallelism: < 1 arcmin (standard); < 10 arcsec (precision)
-
Clear Aperture: ≥ 90% of diameter
-
Coating:— Double-sided BBAR @ 1030–1090 nm (fiber laser standard)— Optional: BBAR @ 915–980 nm + 1030–1090 nm (dual-band for diode + fiber)— Optional: BBAR @ 1064 nm + 532 nm (frequency-doubled YAG)— Hydrophobic / Oleophobic top coat (anti-stick for spatter) — optional
-
Transmission: ≥ 99.5% (standard); ≥ 99.8% (premium grade)
-
Damage Threshold: > 15 J/cm² @ 1064 nm, 10 ns pulse; > 10 J/cm² @ 10 ns, 532 nm (if dual-band)
-
Edge Treatment: Ground / beveled 0.2×45°; optional edge blackening
-
Mounting: Unmounted / Drop-in for cutting head seat / Retaining ring / Pre-assembled in quick-change cartridge
-
Operating Temperature: −40 °C ~ +200 °C (continuous); short spikes to 400°C (spatter)
