Diameter 6mm aspherical lens 600-1100nm D-ZK2N aspheric lens

Diameter 6mm aspherical lens 600-1100nm D-ZK2N aspheric lens

Optical Aspherical Lens

600-1100nm Aspheric Glass Lens

d6 f8 optical aspheric lens

factory offer optical aspheric lens

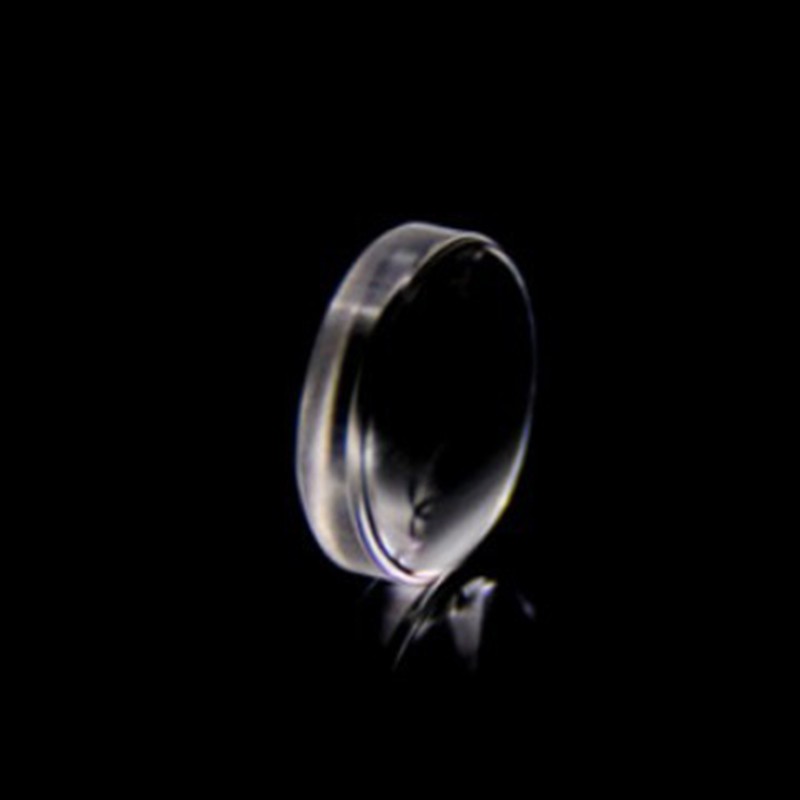

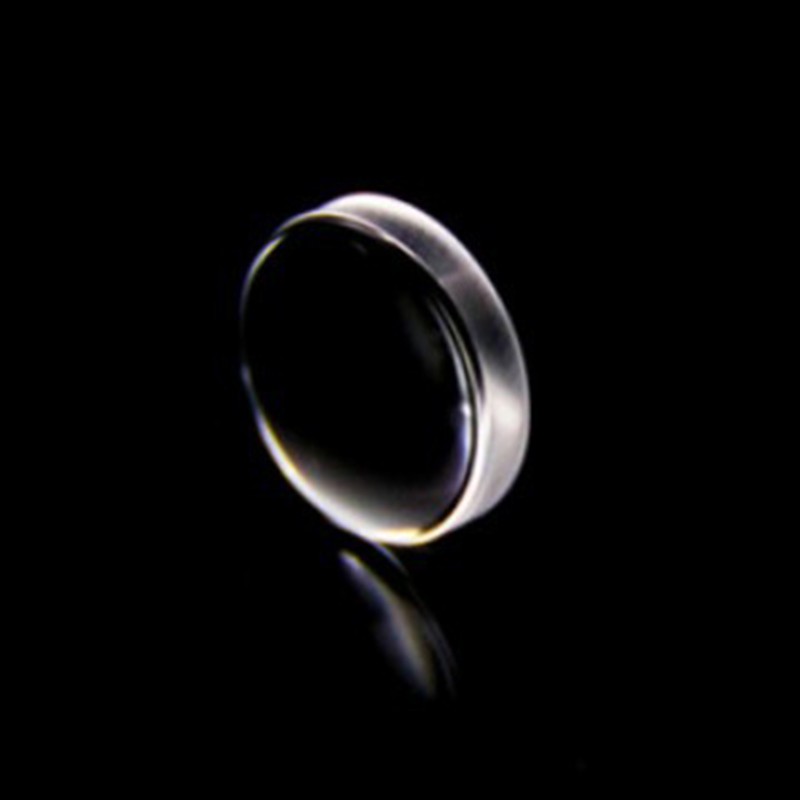

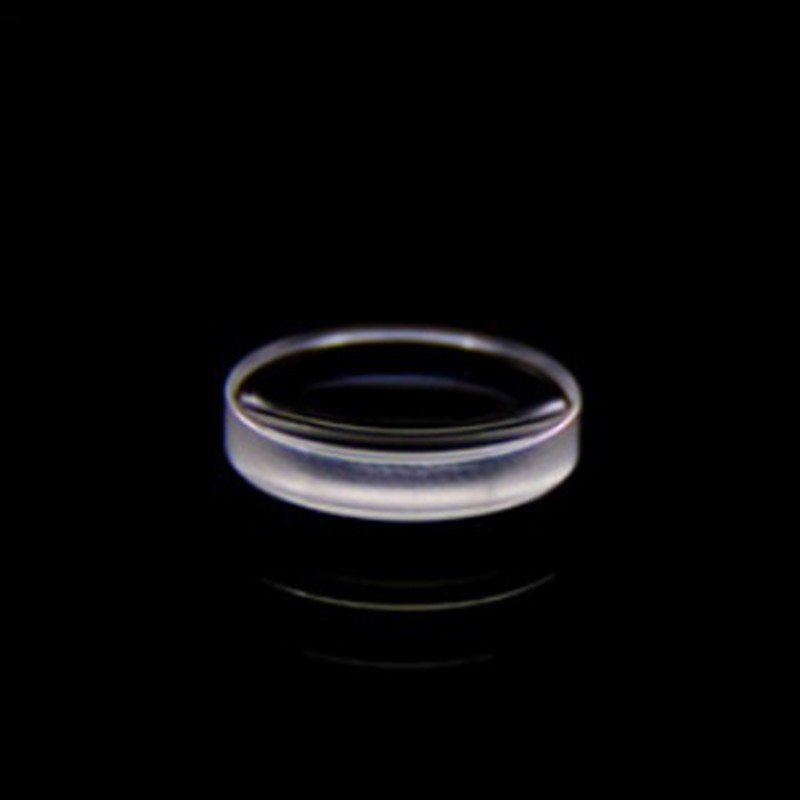

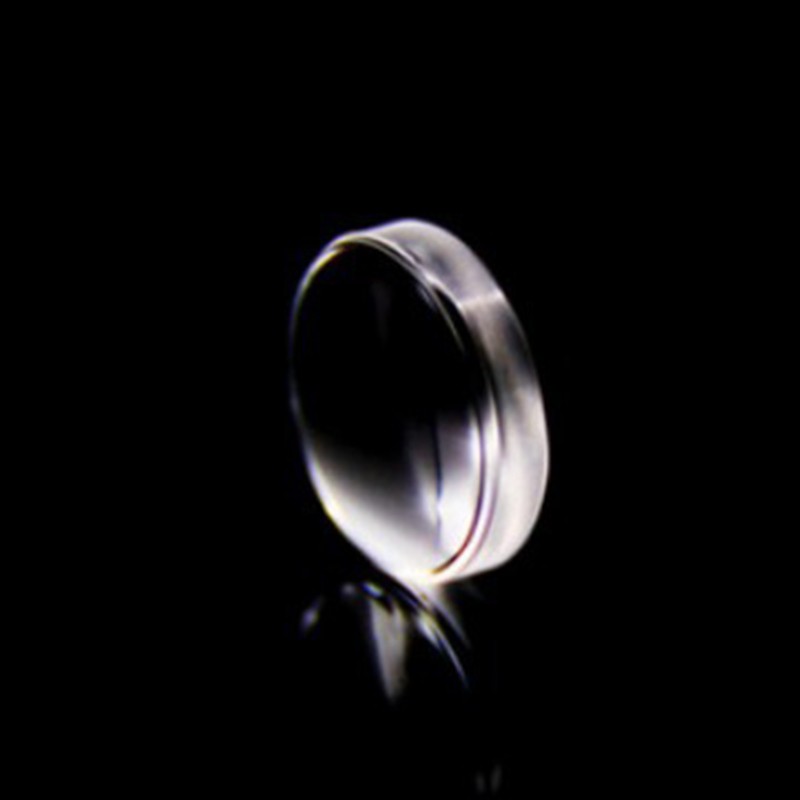

High-precision optical glass aspherical singlet lens molded or polished from OHARA D-ZK2N low-dispersion crown glass (nd≈1.589, νd≈61), with 6mm clear aperture and optimized aspheric profile to eliminate spherical aberration and improve spot quality.

Broadband anti-reflection coating 600–1100nm (Ravg<0.5%) makes it suitable for visible-to-NIR applications including 635/780/850/940nm laser diode collimation, miniature imaging lenses, and sensor illumination modules.

Available in multiple effective focal lengths (EFL 3–50mm customizable). Edge blackening and custom NA/coating wavelengths supported for OEM integration.

Description

f8 Diameter 6mm aspherical lens 600-1100nm D-ZK2N aspheric lens factory custom aspherical optical lens

Specifications:

Lens Type: Optical Glass Aspherical Singlet Lens (Molded / Ground & Polished)

Material: D-ZK2N (OHARA) nd=1.5891, νd≈61.0 / Equivalent Low-Dispersion Crown (Hoya D-ZK3 / Schott N-BK7 substitute available)

Diameter (Clear Aperture): 6mm (Ø6mm)

Effective Focal Length (EFL): 3mm / 4mm / 5mm / 6mm / 8mm / 10mm / 12mm / 15mm / 20mm / Custom

Back Focal Length (BFL): Specified per design

Numerical Aperture (NA): 0.2–0.5 (depends on selected EFL & beam clearance)

Center Thickness: 1.0mm – 3.5mm (design dependent)

Dimension Tolerance: ±0.02mm / ±0.05mm

Center Thickness Tolerance: ±0.02mm

Surface Figure (Base Sphere): λ/4 @ 632.8nm

Surface Roughness (RMS): <20nm (Molded) / <5nm (Polished)

Surface Quality (Scratch-Dig): 60-40 / 40-20 / 20-10

Clear Aperture: ≥90% of Ø6mm

Edge Treatment: Ground / Edge Blackened (Optional) / Bevel 0.1mm × 45°

Aspheric Coefficients: Optimized for 600–1100nm band (available on request)

Coating Options:

Broadband AR 600–1100nm (Ravg<0.5%) ← Standard

V-Coating @ 650nm / 780nm / 850nm / 940nm / 1064nm

Broadband AR 400–700nm / 800–1700nm (Optional)

Uncoated (Available)

Operating Wavelength: 600–1100nm (VIS–NIR)

Transmission: >99% per surface with BBAR coating

Operating Temperature: -40°C to +80°C

We are professional manufacture on the optical lenses &lasers for over 20 years experience.
With the advanteges,we offer optical products in the fileds of University laboratory, Industry, Scientific research,Medical treatment, Mechanical equipments, lasers and Construction industry and so on.

We can provide optical lenses, optical prisms, high-precision Powell prisms, right-angle prisms, laser lenses, filters, aspherical lenses, collimating lenses, optical glass lenses, optical reflectors, cylindrical lenses, laser modules, laser heads, optical glued lenses, optical rod mirrors, etc.

Looking forward to communicating whether we have the opportunity to cooperate. For the lens/laser products you need, I would like to quote our competitive price.

Please contact for any custom needs,
Contact:Rebecca Xu
