Description

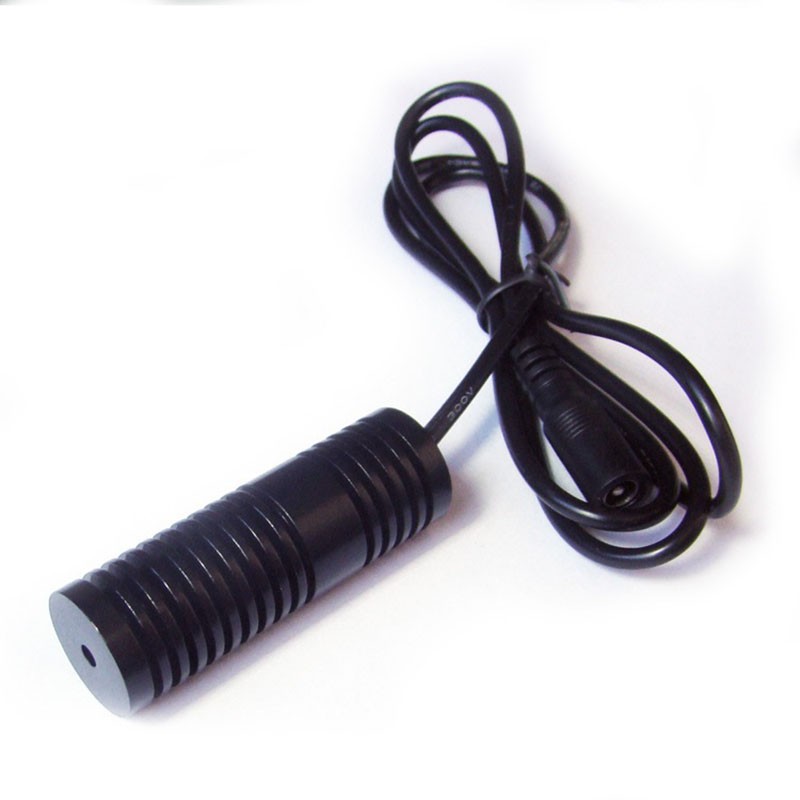

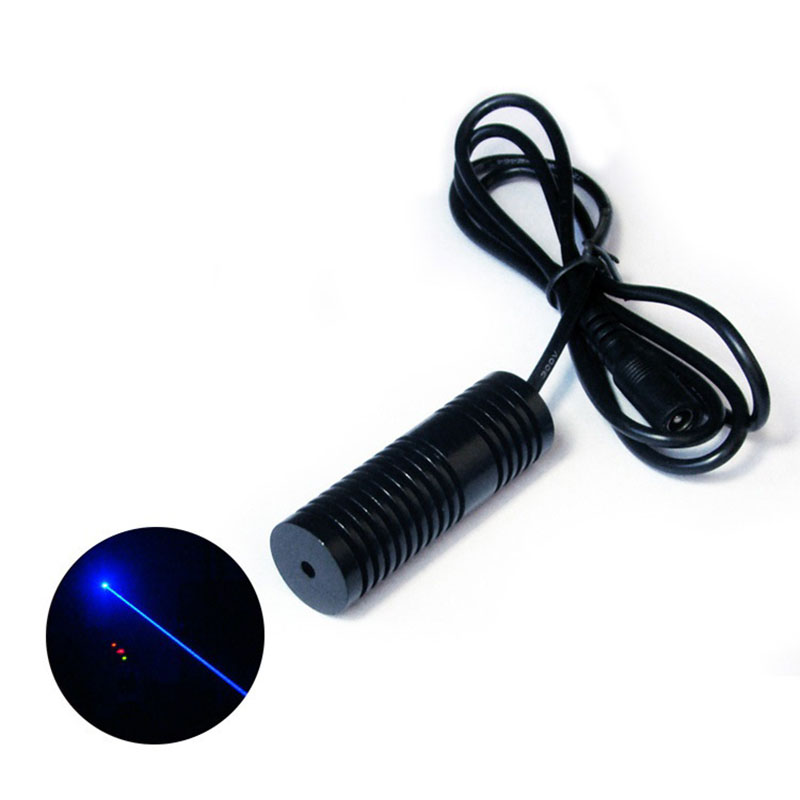

20*60mm 450nm100mw blue laser locator 100mw laser module stage light module
Specifications
-
Wavelength: 445~450nm ±10nm (True Blue)
-
Output Power: 100mW (CW, Class 3B)
-
Beam Pattern: Dot (Spot) — Line / Cross optional
-
Lens: Multi-coated Optical Glass Collimating Lens (external focus adjustable)
-
Operating Voltage: DC 5V–7.5V (wide voltage versions available)
-
Operating Current: <180mA
-
Spot Size: Adjustable (e.g., <Φ12mm at 10m distance)
-
Beam Divergence: <1.0 mrad
-
Transverse Mode: TEM₀₀
-
Modulation: TTL/Analog modulation available (up to 50kHz)
-

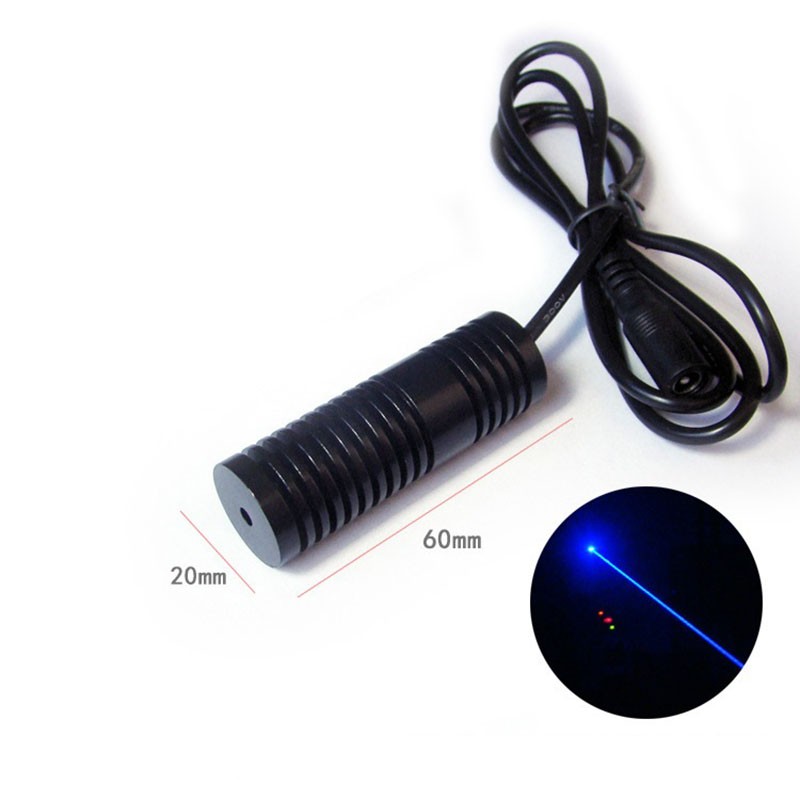

Housing: Φ20×60mm Black Anodized Aluminum (heavy-duty heatsink)
-
Protection: Anti-static, Reverse Polarity, Overcurrent Protection
-
Working Temp.: -10°C to +50°C
-
Storage Temp.: -40°C to +80°C
-
Lifetime: >8,000–10,000 hrs
Applications
-
Industrial machinery alignment & concentric positioning
-
Stone masonry, woodworking & metal cutting guide dots
-
Laser levels, range finders & surveying instruments
-
Stage lighting effects & laser projection shows
-
Machine vision systems & optical experiments
-
Medical equipment positioning aids
