Optical glass half penta prism

custom penta prism

penta optical prism

penta angle prism coated

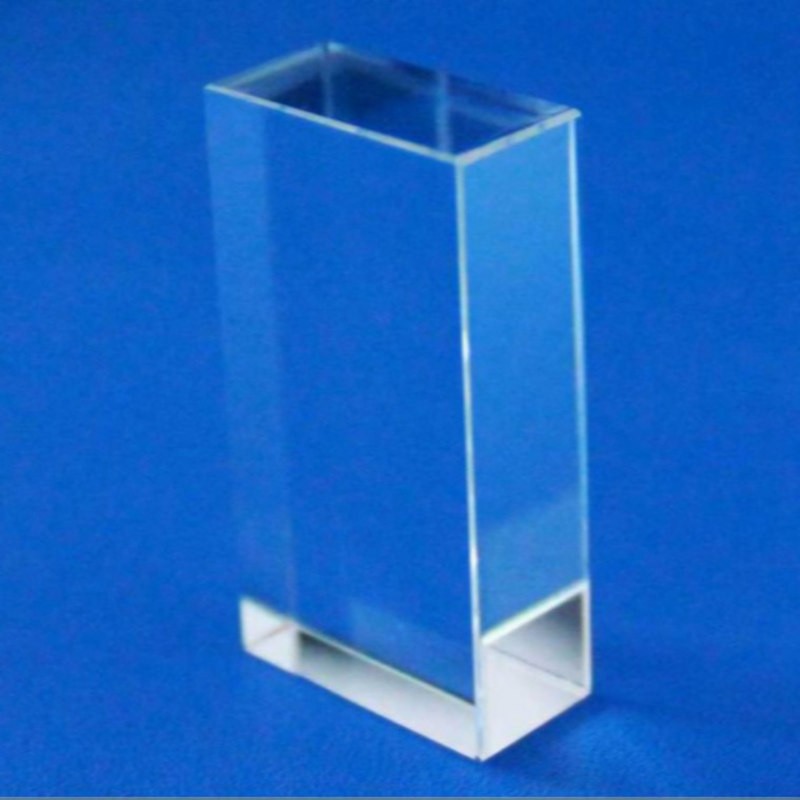

A high-precision half penta prism designed for accurate and stable beam deviation by 90°.

It features a critical reflective coating on its hypotenuse surface, making it an essential component for applications requiring precise optical path folding and alignment with minimal back-reflection.

Description

Factory custom Optical glass penta prism optical prism

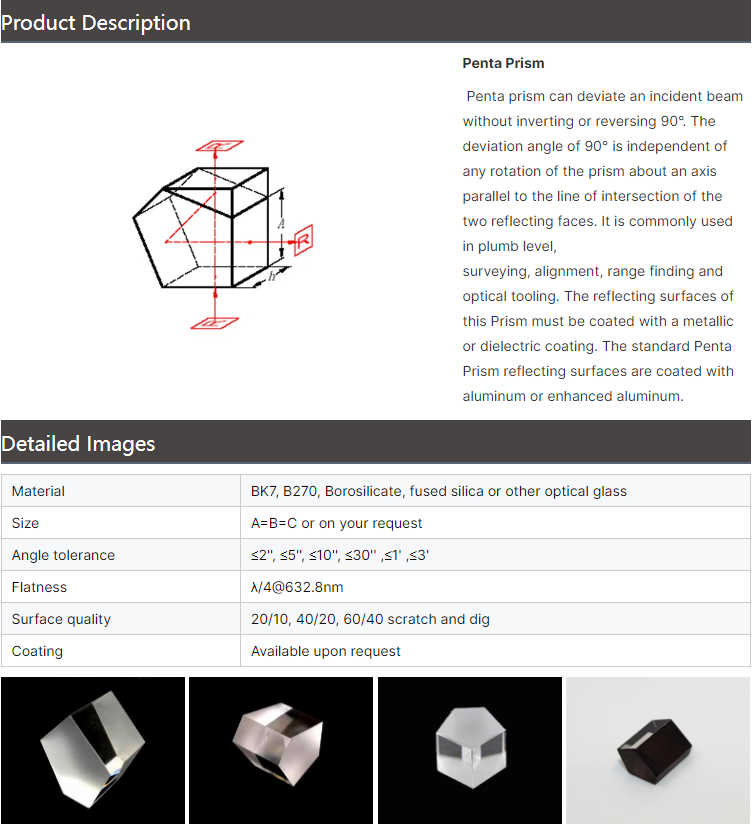

Detailed Specifications:

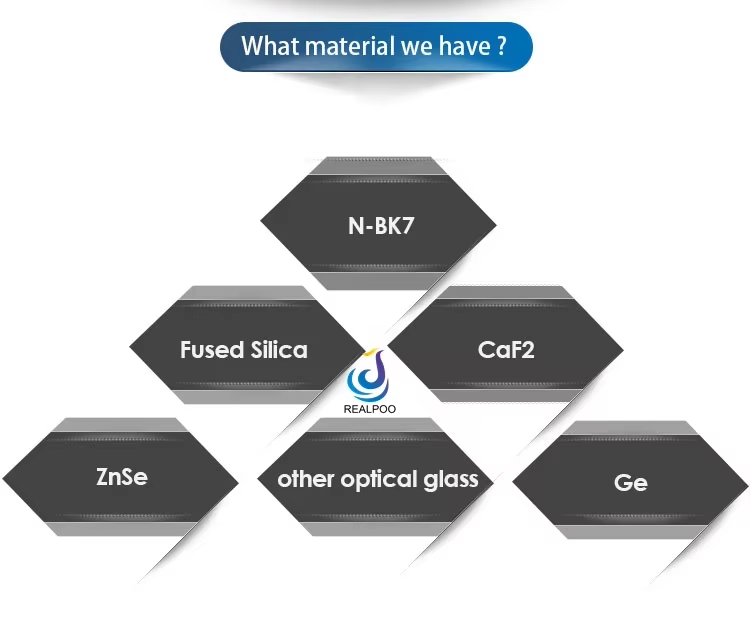

Material: Optical Glass (BK7, Fused Silica, or other grades upon request)
Dimensions: Customizable. Standard leg sizes from 5mm to 100mm.
Angle Tolerance: Typically ±3 arcminutes, High Precision: <±30 arcseconds.
Surface Flatness: Standard: λ/4 @ 632.8nm, Precision: λ/10.
Surface Quality: Standard: 40-20 Scratch-Dig, High Quality: 20-10.
Beam Deviation: Precisely 90°.
Coating on Hypotenuse: High-efficiency Reflective Coating (Protected Aluminum, Enhanced Aluminum, Silver, or Dielectric).
Average Reflectivity: >88% (Al), >95% (Ag), >99% (Dielectric) across specified bands.
Coating on Entry/Exit Faces: Optional Broadband Anti-Reflection (AR) Coating.
Laser Damage Threshold: Customizable based on coating selection (e.g., >5 J/cm² for 20ns pulse @ 1064nm for certain dielectric coatings).
Mounting: Optional black anodized aluminum housing with mounting holes.

Features & Benefits:

Precision Beam Steering: Provides a consistent 90° beam bend with high angular accuracy.
Dedicated Reflective Surface: The coated hypotenuse eliminates the need for total internal reflection, allowing use with unpolarized light and over a wider range of incident angles.
Customizable: Available in a wide range of sizes, materials, and coating specifications to meet exact system requirements.
Durable Construction: Made from high-grade optical glass with precision polish for long-term stability and reliability.
Reduced Ghost Images: Properly coated to minimize stray reflections.

We are professional manufacture on the optical lenses &lasers for over 20 years experience.
With the advanteges,we offer optical products in the fileds of University laboratory, Industry, Scientific research,Medical treatment, Mechanical equipments, lasers and Construction industry and so on.

We can provide optical lenses, optical prisms, high-precision Powell prisms, right-angle prisms, laser lenses, filters, aspherical lenses, collimating lenses, optical glass lenses, optical reflectors, cylindrical lenses, laser modules, laser heads, optical glued lenses, optical rod mirrors, etc.

Looking forward to communicating whether we have the opportunity to cooperate. For the lens/laser products you need, I would like to quote our competitive price.

Please contact for any custom needs,
Contact:Rebecca Xu
