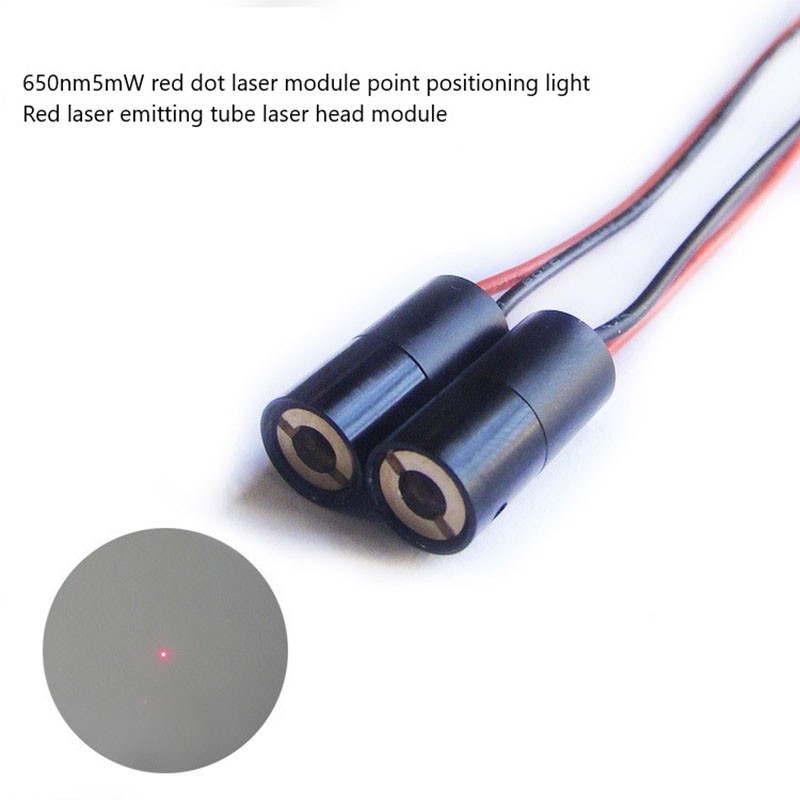

650nm 5mW red dot laser module 8mm*17mm diode optical laser modules

  • 650nm 5mW red dot laser module
  • 8mm*17mm diode laser module
  • 650nm optical laser modules

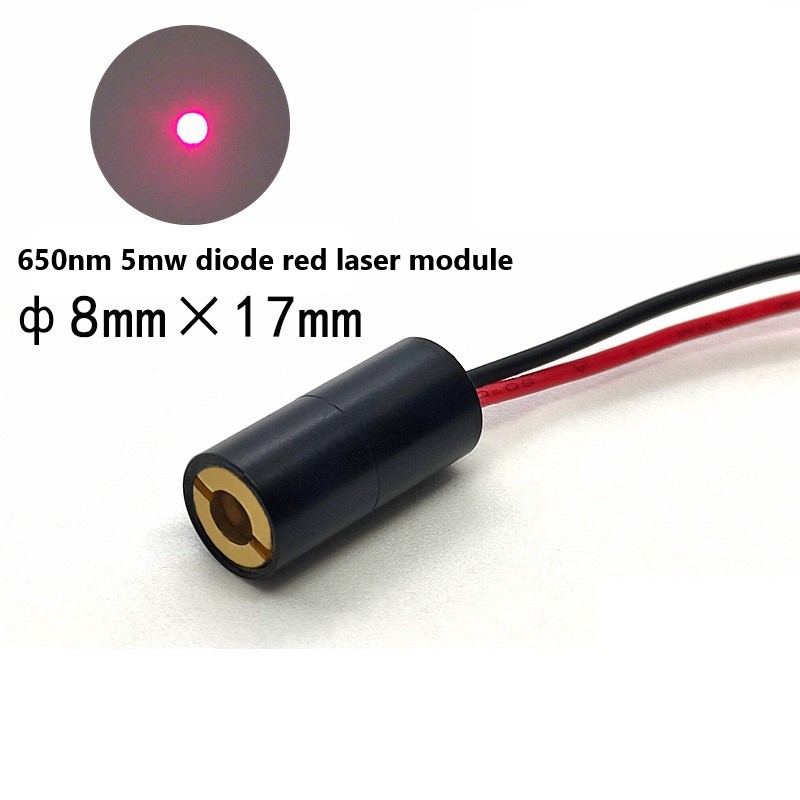

  • Ultra-compact Φ8×17mm red dot laser diode module with 650nm wavelength and ≤5mW output (Class IIIa), featuring a built-in constant current driver and collimating lens (plastic or glass optional).

    It emits a crisp, visible red dot spot—ideal for miniature positioning, alignment, DIY electronics, and OEM integration where space is limited.

    • Inquiry Send Email

    Description


    650nm 5mW red dot laser module 8mm*17mm diode optical laser modules

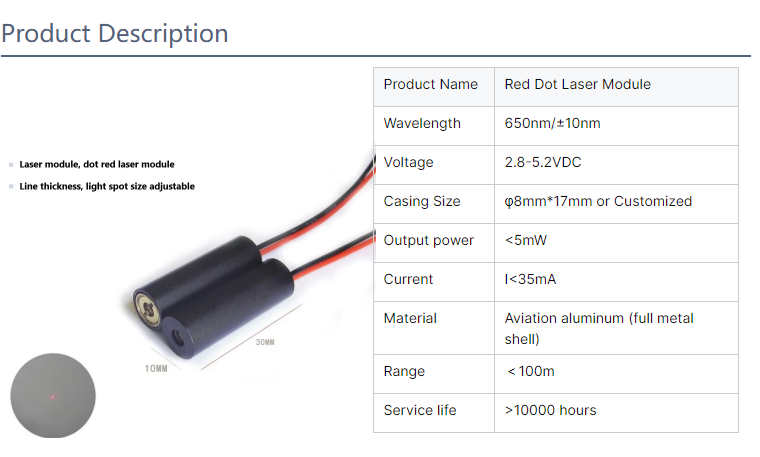

    Specifications
    • Wavelength: 650nm ±10nm (Visible Red)
    • Output Power: ≤5mW (Class IIIa / Class 2 available)
    • Beam Pattern: Dot Spot (fixed focus or focus-adjustable)
    • Lens: PMMA Plastic / Optical Glass (optional)
    • Operating Voltage: DC 2.8V–5.2V (typical 3V or 5V)
    • Operating Current: <35mA
    • Spot Size: ≤1.0mm @ 1m (adjustable by focus)
    • Housing: Φ8×17mm Black Anodized Copper/Brass/Aluminum
    • Working Temp.: -10°C to +50°C
    • Storage Temp.: -40°C to +80°C
    • Lifetime: >5,000–8,000 hrs
    Applications
    • Sewing / Embroidery / Textile machine positioning dot
    • Woodworking & Stone sawing alignment aid
    • DIY electronics, Arduino & Raspberry Pi laser projects
    • Laser tripwire, security sensors & optical experiments
    • Golf putting alignment, toy gunsights & pointer devices
    • PCB board alignment & SMT positioning marks
