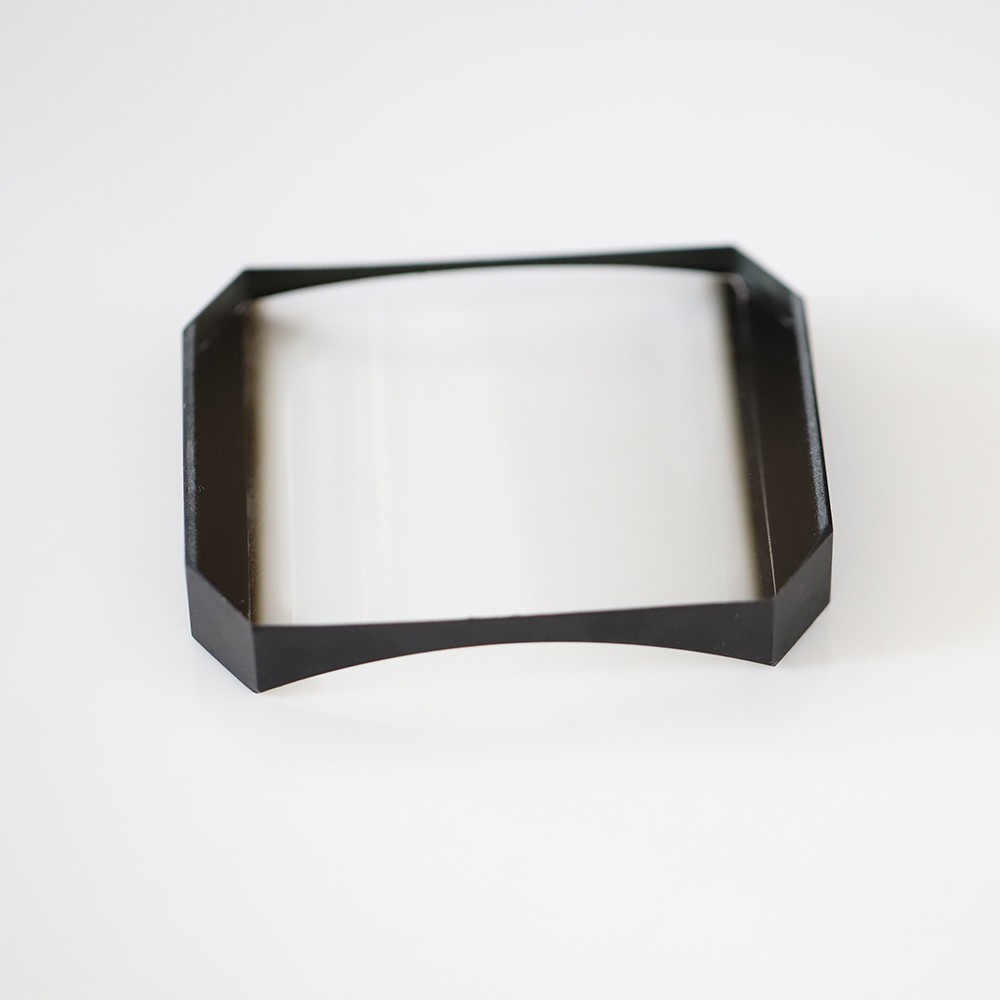

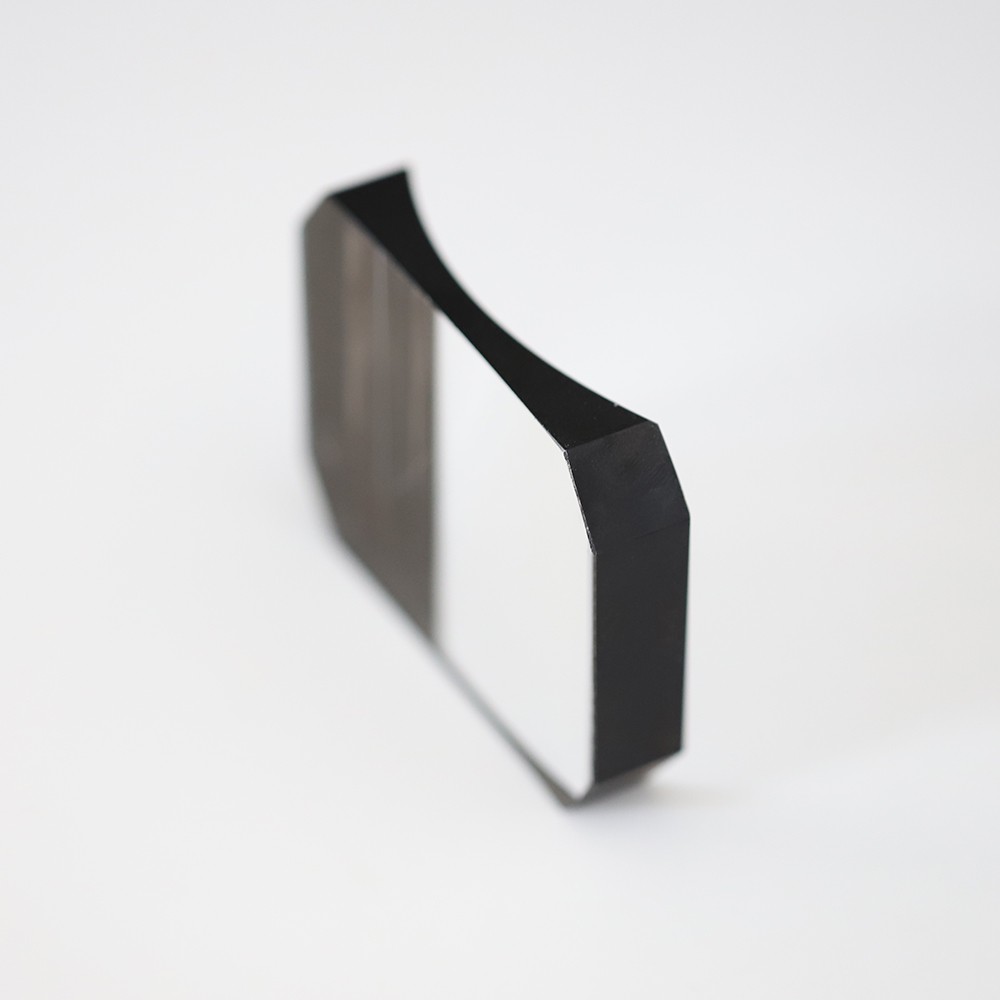

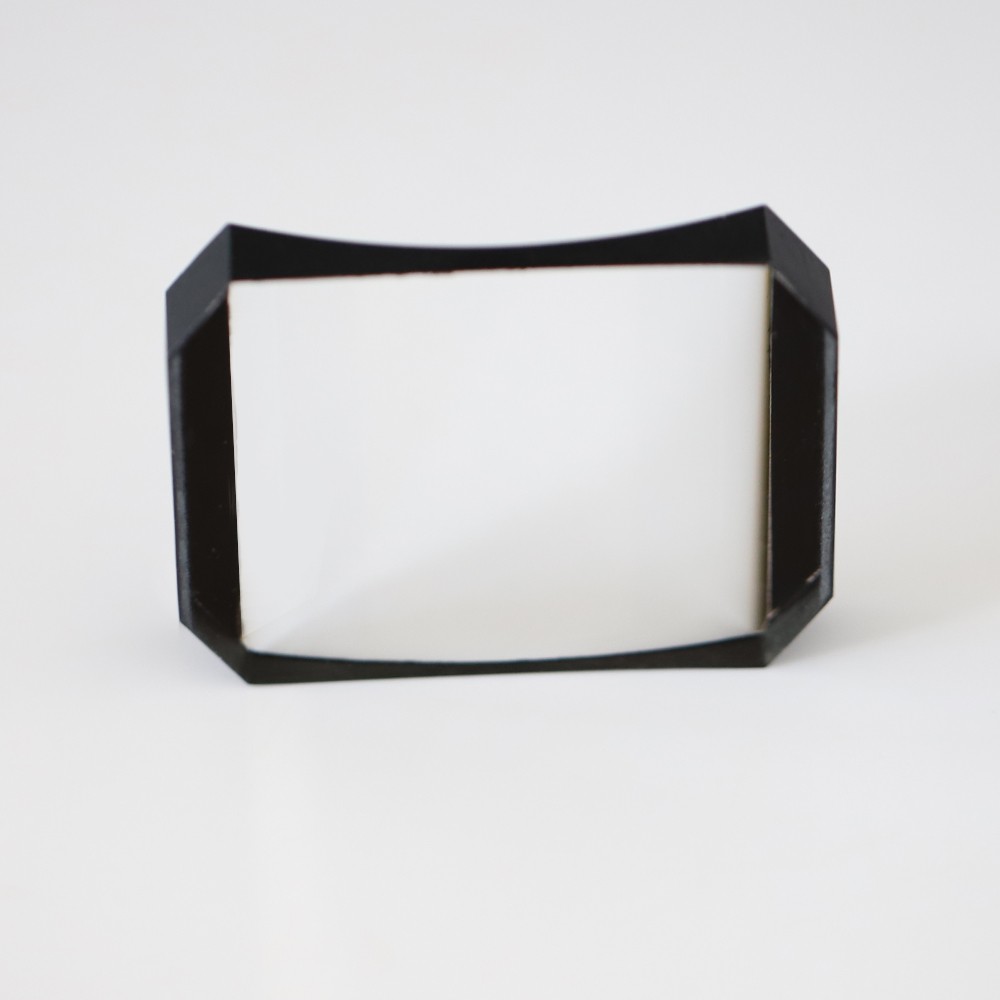

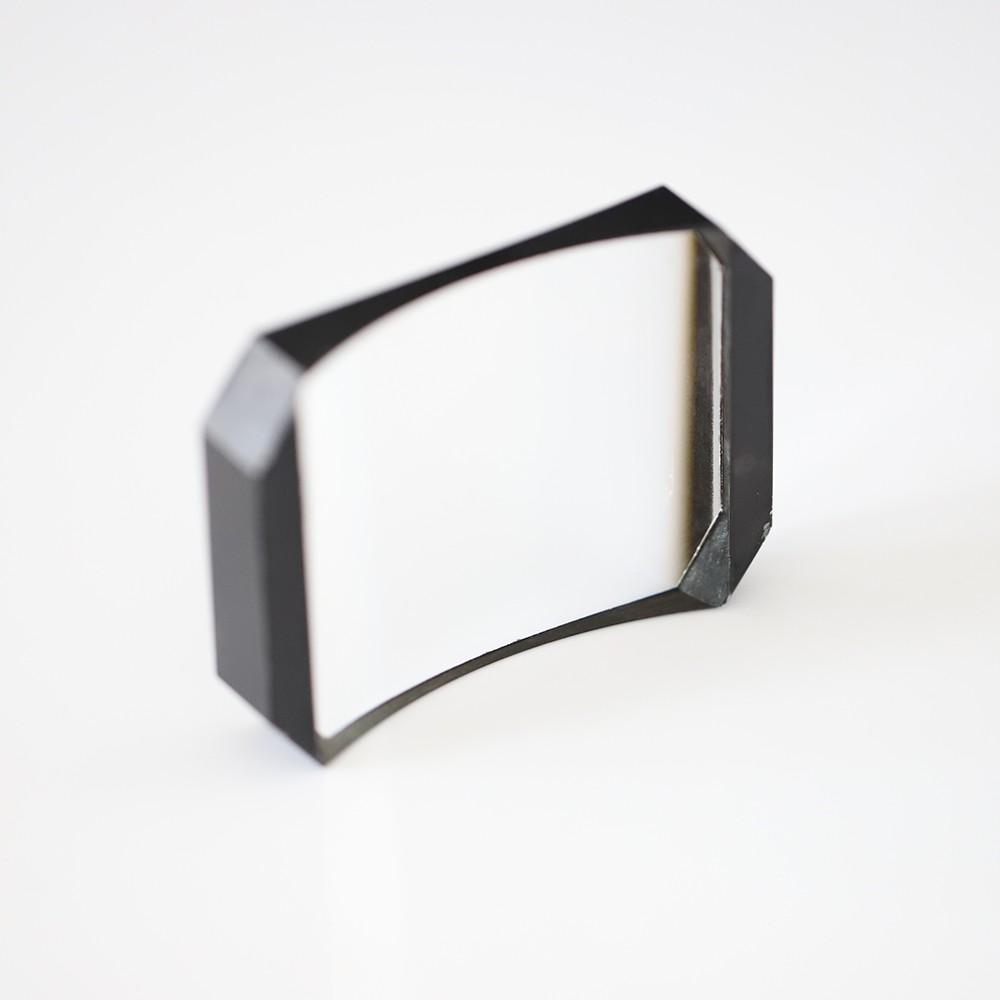

Large size cylindrical lens with blacken Edge Blackeneing Optical Glass Cylindrical Lens
Specifications:
Lens Type: Cylindrical Lens – Plano-Convex / Plano-Concave
Material: N-BK7 (nd=1.5168, νd=64.2) / K9 (H-K9L) / B270 / UV Fused Silica / Custom
Length (Cylindrical Axis): 20mm / 50mm / 76.2mm / 100mm / 125mm / 150mm / 200mm / 250mm / 300mm+ / Custom
Width (Perpendicular to Axis): 5mm / 10mm / 15mm / 20mm / 25mm / 50mm / 75mm / 100mm / Custom
Effective Focal Length (Tangential): 10mm – 2000mm / Custom
Radius of Curvature: Calculated per EFL (n-1 formula)
Center Thickness: 2mm – 30mm (design dependent)
Edge Thickness: ≥1mm (minimum)
Dimension Tolerance: ±0.1mm / ±0.2mm (Large Size)
Radius Tolerance: ±0.5% / ±1%
Surface Figure (Curved Face): λ/2 @ 632.8nm (λ/4 available)
Surface Flatness (Plano Face): λ/2 @ 632.8nm
Surface Quality (Scratch-Dig): 80-50 / 60-40 / 40-20
Clear Aperture: >90% of active area
Edge Treatment: Edge Blackened (Matte Black Absorptive Ink/Paint on Periphery) to Suppress Stray Light
Bevel / Chamfer: 0.2–0.5mm × 45°
Coating Options:
-
Uncoated
-
MgF₂ AR @ 550nm
-
Broadband AR 400–700nm (Ravg<0.5%)
-
Broadband AR 600–1050nm (VIS-NIR)
-
V-Coating @ 532nm / 635nm / 808nm / 1064nm / CustomOperating Wavelength: 350nm – 2000nm (BK7/K9), 185nm – 2100nm (Fused Silica)Operating Temperature: -40°C to +80°C
