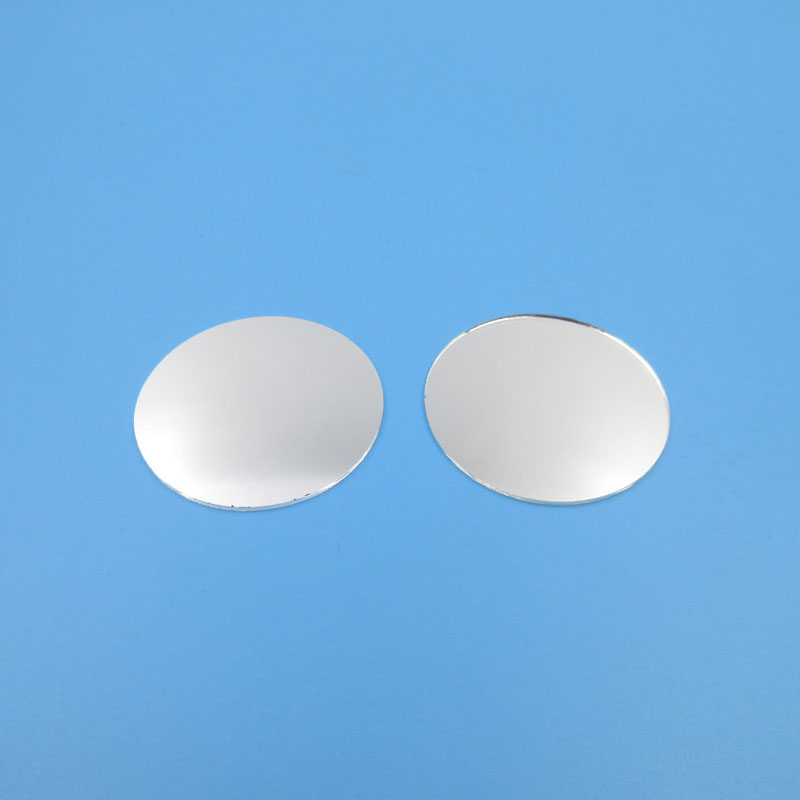

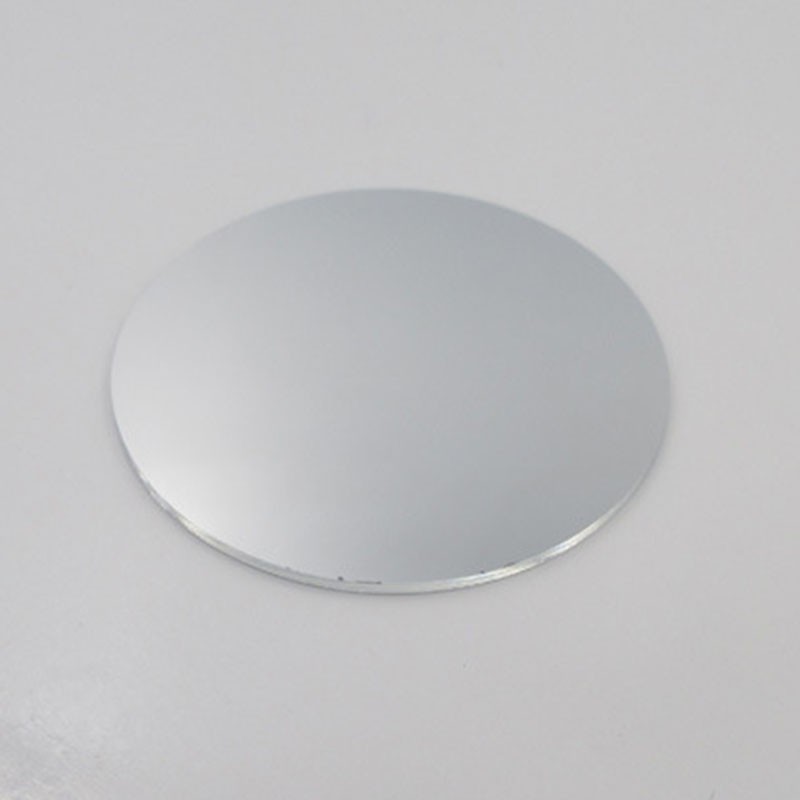

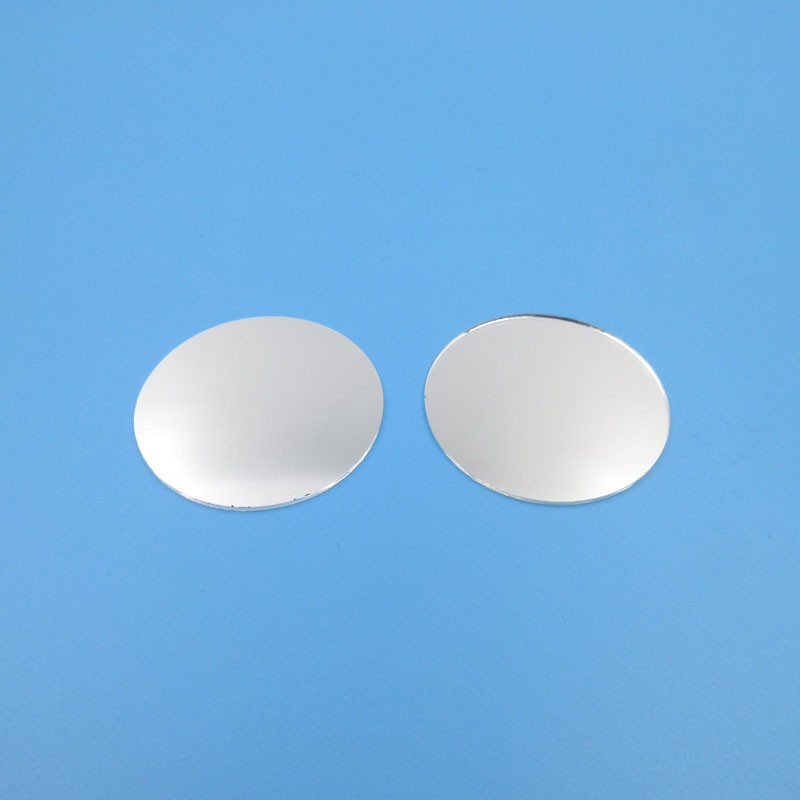

860nm-1100nm long wave filter 40*1mm optical glass filter

860nm-1100nm long wave filter 40*1mm optical glass filter

glass optical filter

custom optical filter

factory offer optical filter

860nm-1100nm optical filter

Precision long wave pass interference filter designed to transmit wavelengths from approximately 860 nm through 1100 nm (NIR/SWIR) while blocking shorter visible and near-NIR wavelengths below 860 nm (UV–VIS–early NIR).

Fabricated on a 1.0 mm thick optical glass substrate (BK7/K9 or fused silica) with hard dielectric multilayer coating via ion-assisted deposition. Ideal for NIR imaging/sensing, IR LED isolation, oximetry reference channel, and machine vision systems requiring removal of visible ambient light while passing NIR signal.

Available in custom dimensions and cut-on wavelengths (780/850/900/950 nm etc.).

Description

**860nm-1100nm long wave filter 40*1mm optical glass filter**

Specifications

Filter Type: Long Wave Pass (LWP) / Cut-on Filter

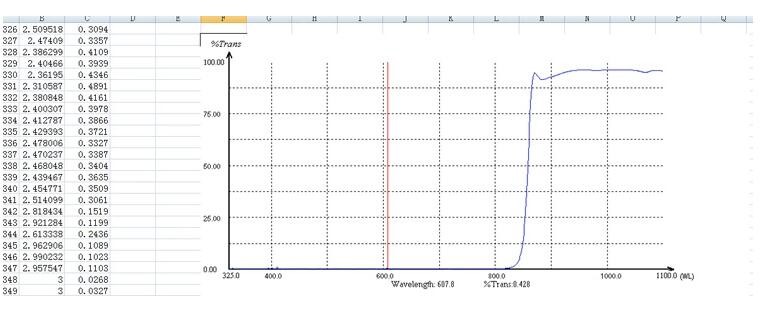

Cut-on Wavelength (50% T point): 860 nm ± 5 nm (780 / 850 / 900 / 950 nm on request)

Transmission Band: 870–1100 nm (extends to 1700 nm on fused silica)

Average Transmission (Tavg): ≥ 90%–93% (870–1100 nm)

Blocking Band: 300–850 nm (UV + Visible + early NIR)

Blocking Level: ≤ 0.1% (OD3) standard; OD4–OD6 optional

Substrate Material: N-BK7 (K9) / UV Fused Silica (JGS1 — for extended NIR)

Dimensions: 40 mm × 1.0 mm (custom size available; rounds/squares/rectangles)

Size Tolerance: ±0.1 mm (length/width/diameter); ±0.05 mm (thickness)

Surface Quality: 60-40 / 40-20 Scratch-Dig

Surface Flatness: λ/4 @ 632.8 nm

Parallelism: ≤ 1 arcmin (standard); ≤ 10 arcsec (precision)

Incidence Angle: 0° ± 5°

Coating Durability: Meets MIL-C-675C (humidity, adhesion, solvent resistance)

Edge Treatment: Ground / beveled; optional edge blackening

Factory custom optical filter,can cutom as your required,

please contact our sales manager
