Description

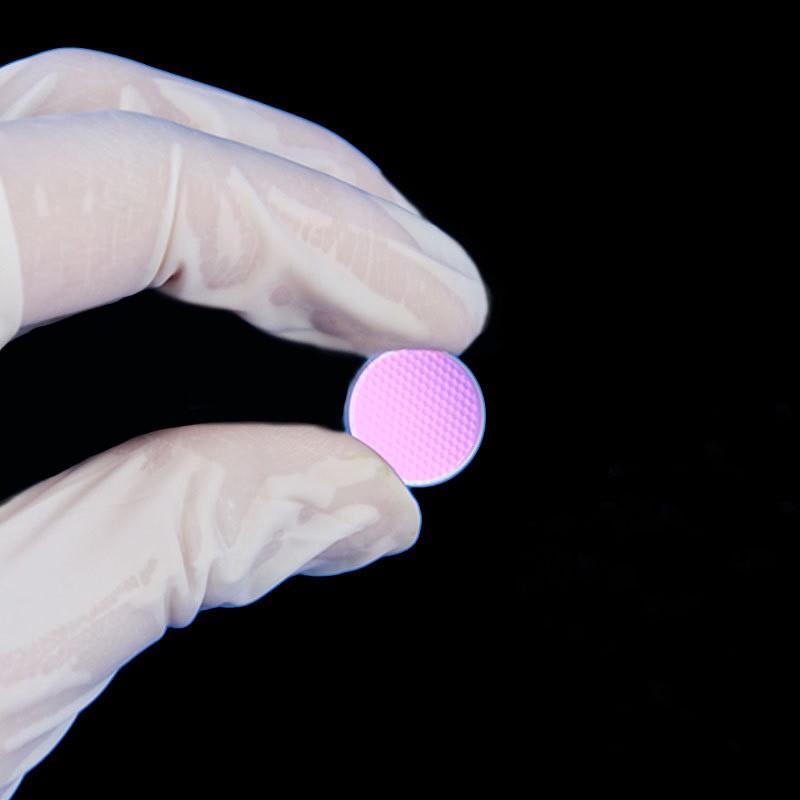

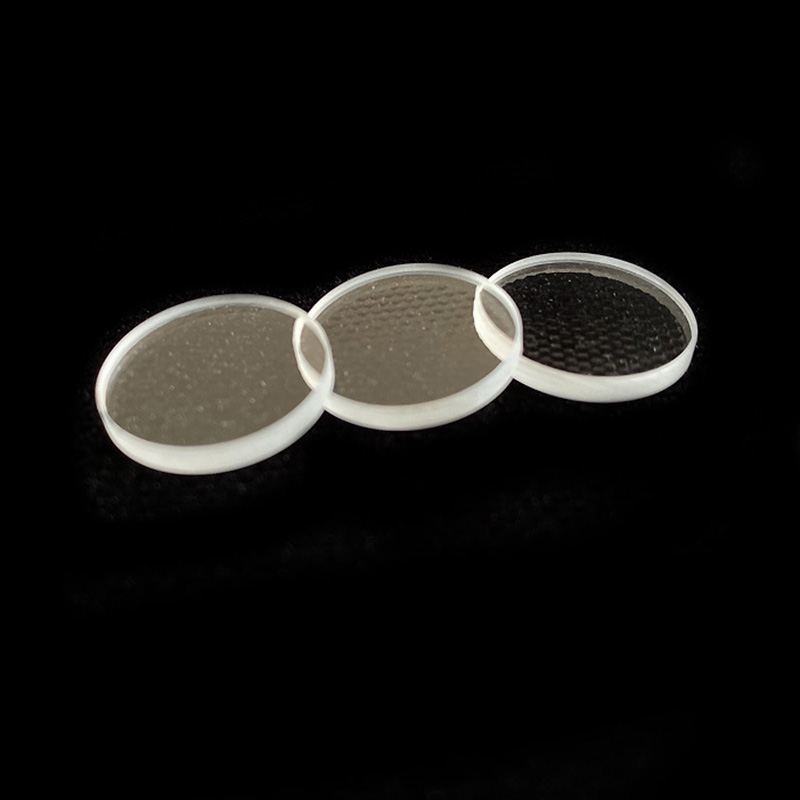

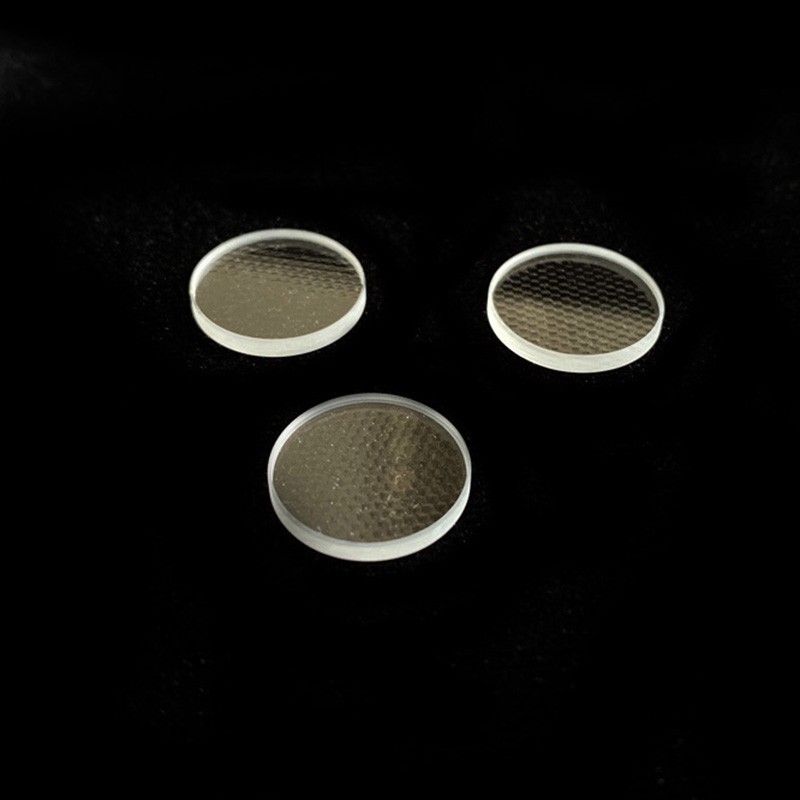

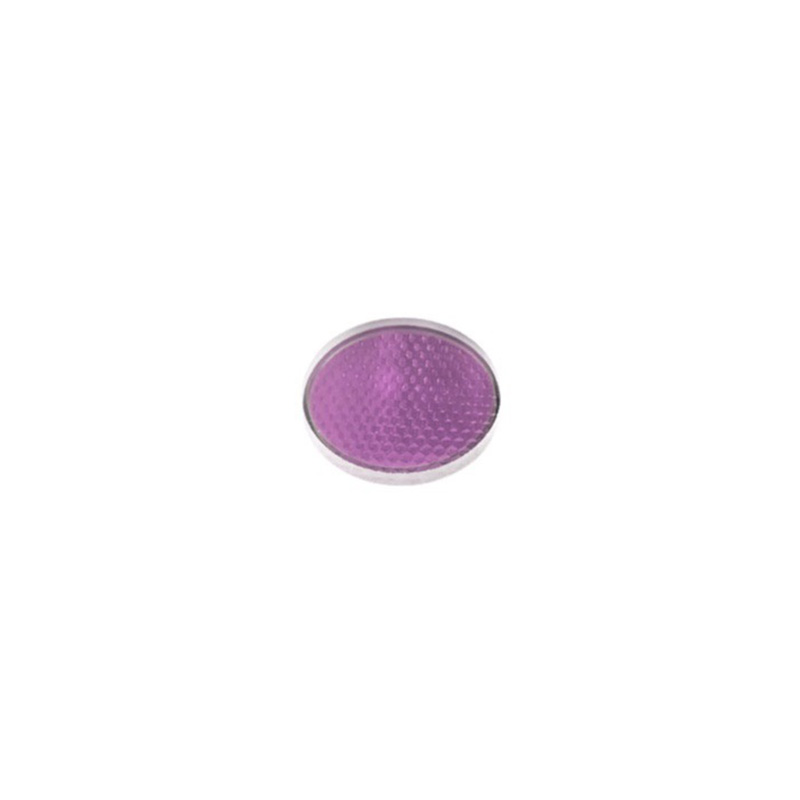

cosmetic lenses 16mm diameter 2mm thickness Laser head lens 755 picosecond honeycomb lens optical lens for Beauty Instrument
Specifications
-
Substrate Material: UV Fused Silica (JGS1 — low autofluorescence, high damage threshold) / N-BK7 (K9 — VIS-grade, cost-effective)
-
Diameter: 16.0 mm (+0.0 / −0.05 mm)
-
Thickness: 2.0 mm (±0.1 mm); 1.5 / 3.0 mm on request
-
Optical Function (select one or combo):— Protective Flat Window — Planar-plano, BBAR @ 755 nm (or 532/1064 nm if multi-band)— Honeycomb / Microlens Array (MLA) — Hexagonal micro-cells or lenslets on entrance side to homogenize intensity; exit side flat or slightly convex— Diffuser / Top-Hat Homogenizer — Engineered surface roughness / microlens pattern for uniform far-field— Combined: Honeycomb on front + AR flat on back (most common for picosecond aesthetic)
-
Wavelength Optimization: 755 nm (Alexandrite ps-laser); dual/tri-band (532 / 755 / 1064 nm) on request
-
Transmittance (Window version): > 99.0% @ design λ (BBAR coated)
-
Homogenization Uniformity (honeycomb): ± 5–10% (typical across 80% clear aperture)
-
Surface Quality: 40-20 / 60-40 Scratch-Dig (honeycomb region relaxed per pattern)
-
Surface Flatness (window area): λ/4 or λ/10 @ 632.8 nm (reference — patterned area excluded)
-
Parallelism: ≤ 3 arcmin (flat window portion)
