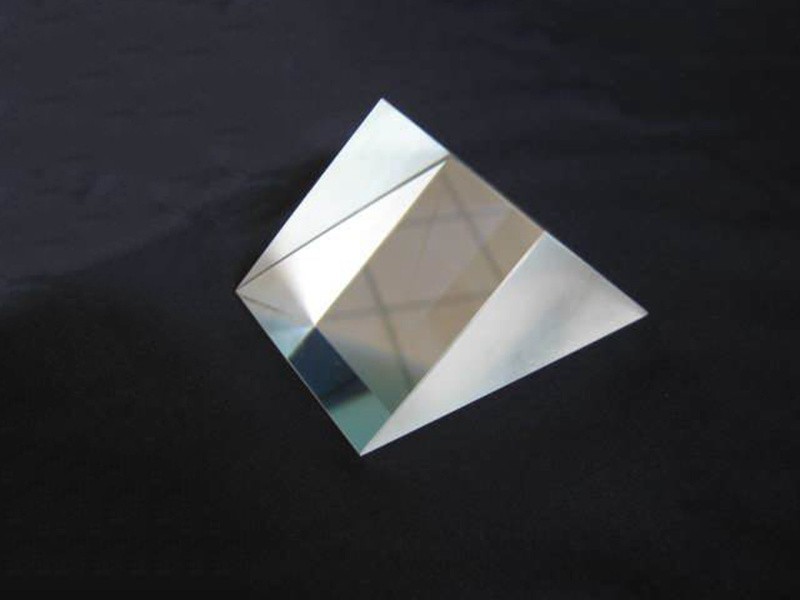

Custom right angle prism optical prism

right angle prism

custom optical prism

optical glass right angle prism

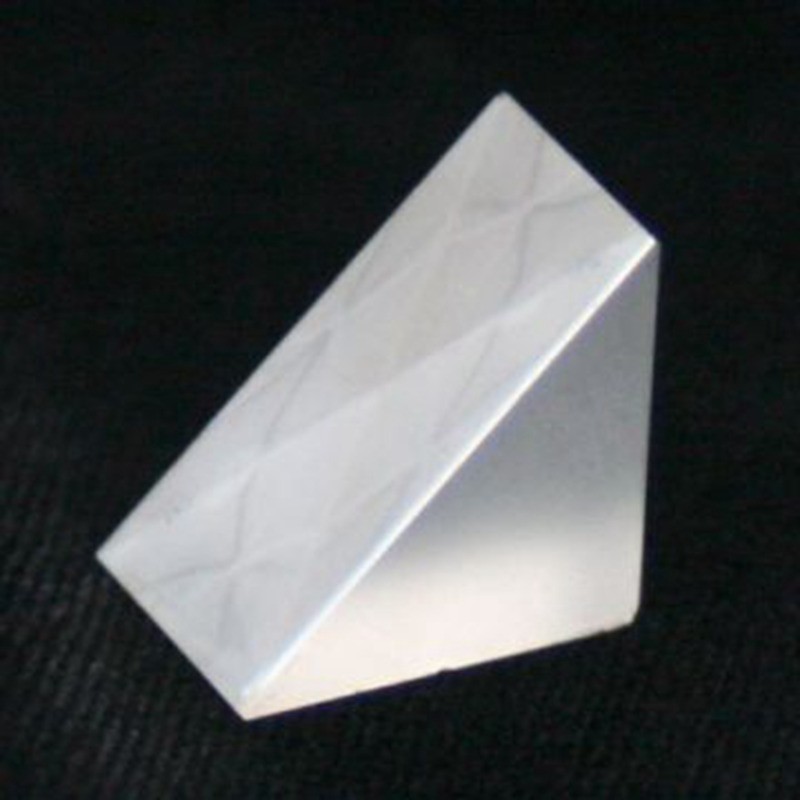

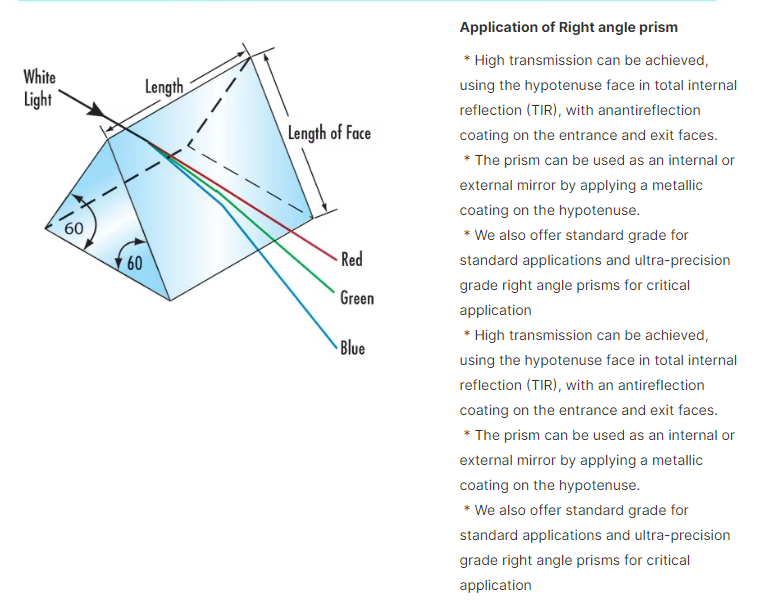

High-precision right angle prism manufactured from N-BK7, K9, or UV Fused Silica optical glass, featuring a 90° apex angle with two perpendicular faces and one hypotenuse face.

Designed for 90° beam deflection, image inversion/rotation, and total internal reflection applications.

Commonly used in binoculars, microscopes, periscopes, interferometers, and laser alignment systems. Available in custom sizes, angle tolerances, and AR/reflective coatings for OEM and scientific research projects.

Description

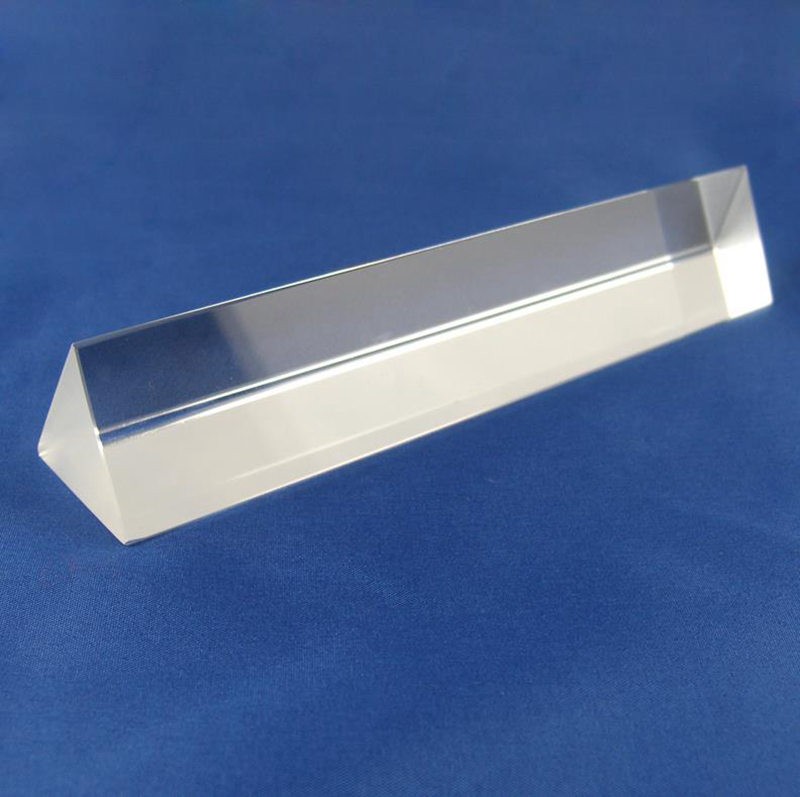

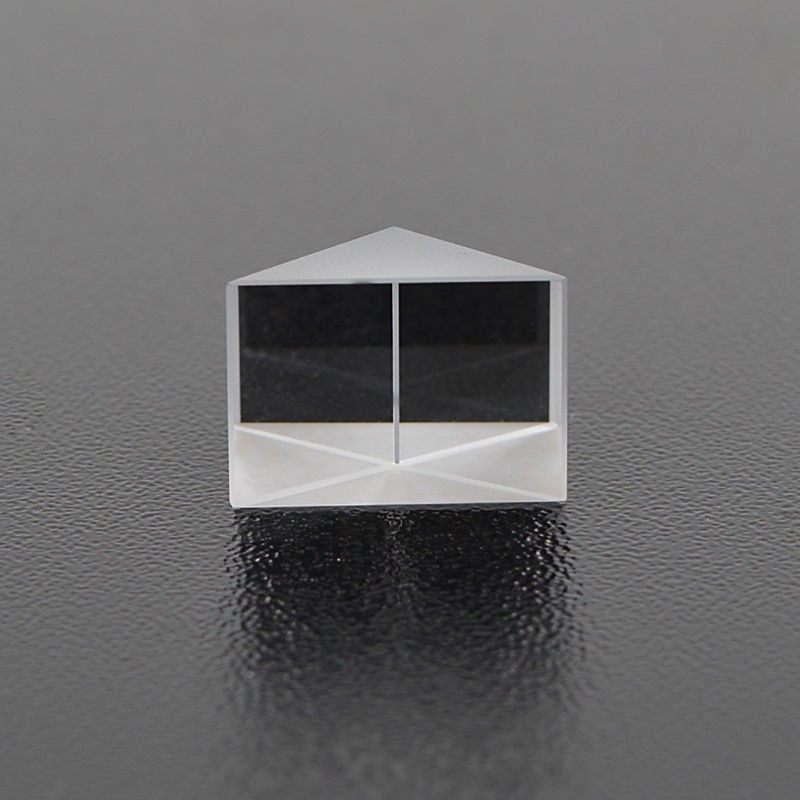

Factory conventional optical glass right angle prism custom optical prism

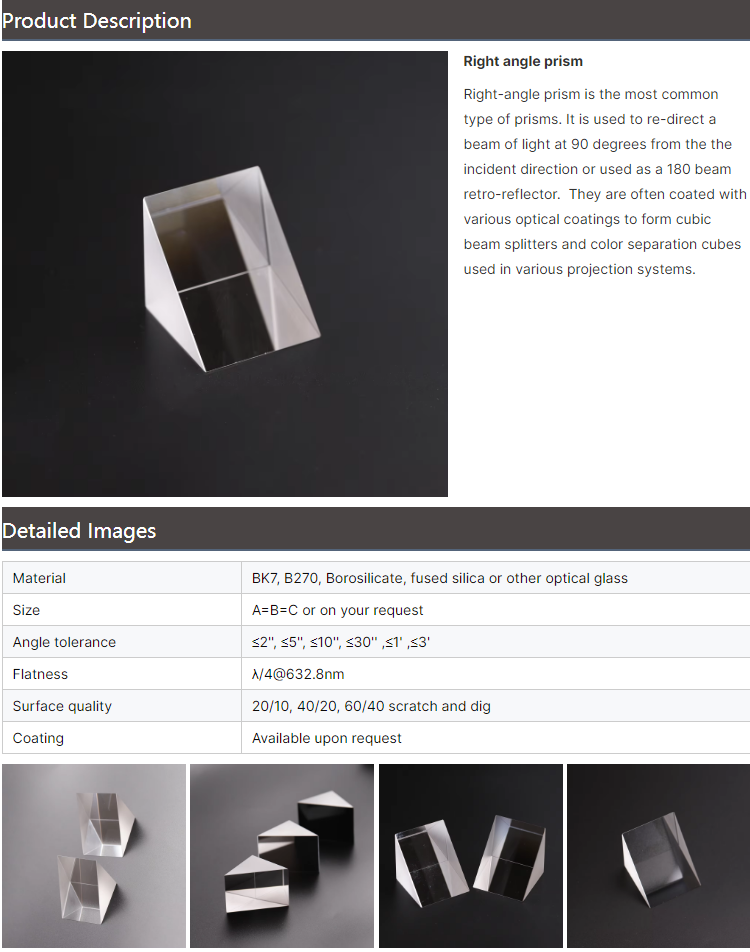

Specifications:

Material: N-BK7 (nd=1.5168, νd=64.2) / K9 Crown Glass / B270 / UV Fused Silica / H-ZF6 / Custom

Prism Type: Right Angle Prism (90° Apex)

Angle Configuration: 90° – 45° – 45° (Standard) / 90° – 60° – 30° (Variant)

Beam Deviation: 90° (Using Hypotenuse as Input) / 180° (Retroreflector Mode)

Typical Size (Leg Length): 5mm / 10mm / 12.7mm / 15mm / 20mm / 25mm / 30mm / 50mm / Custom

Dimension Tolerance: ±0.1mm (±0.05mm available)

Angle Tolerance: ±3 arc min (Standard) / ±30 arc sec / ±5 arc sec (Precision)

Surface Flatness: λ/4 @ 632.8nm (λ/10 available)

Surface Quality (Scratch-Dig): 60-40 / 40-20 / 20-10

Clear Aperture: >90%

Bevel / Chamfer: 0.1–0.3mm × 45°

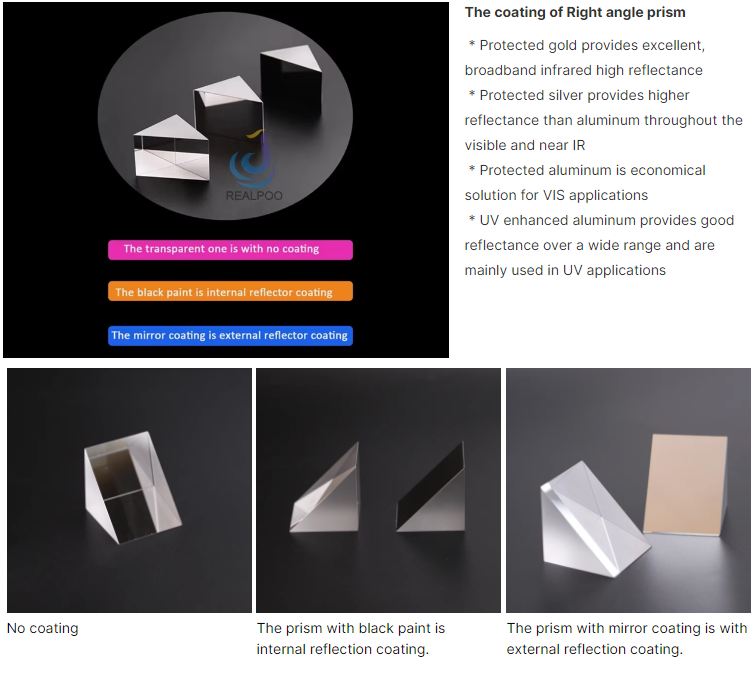

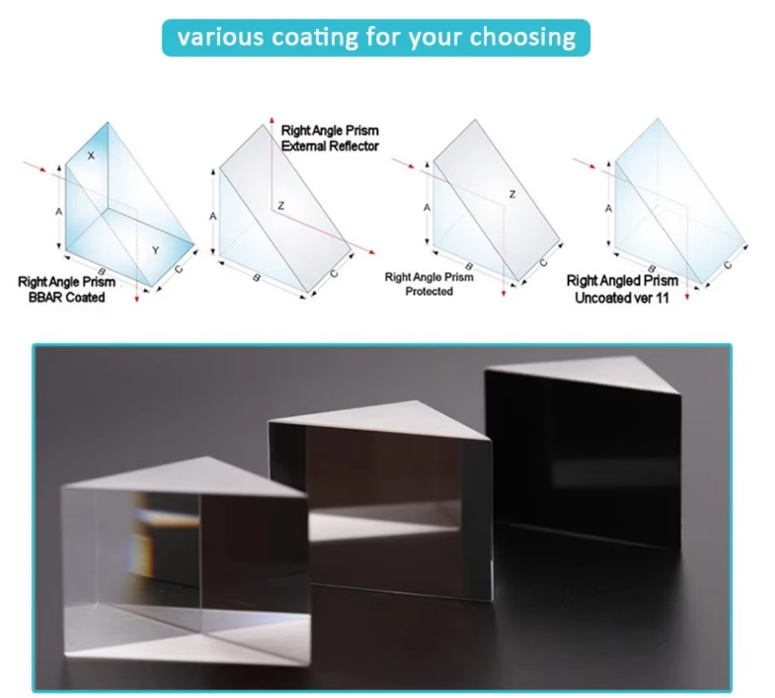

Coating Options:

Hypotenuse Face: Uncoated (TIR mode) / Protected Al / Enhanced Al / Ag / Au / Dielectric HR
Leg Faces: Uncoated / MgF₂ AR / Broadband AR 400–700nm / V-Coating / Custom

Transmittance Range: 350nm – 2000nm (BK7/K9) / 185nm – 2100nm (UV Fused Silica)
