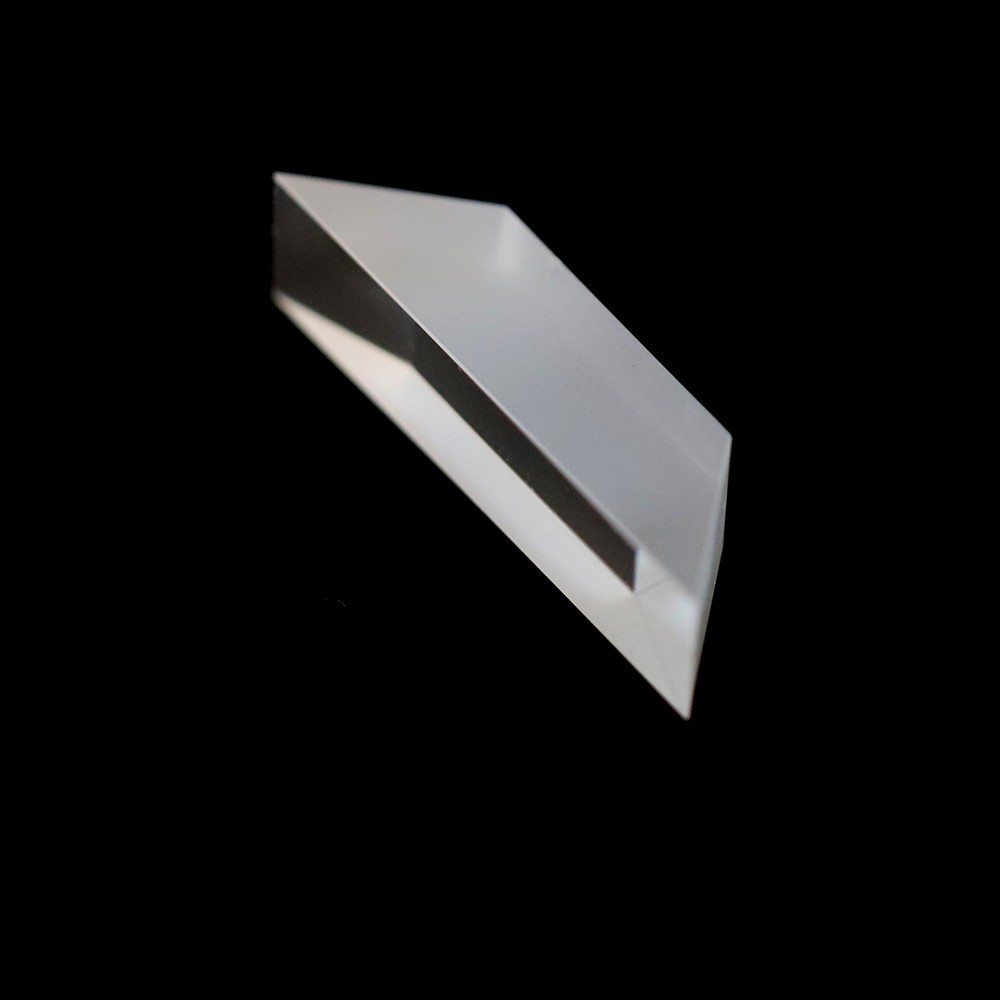

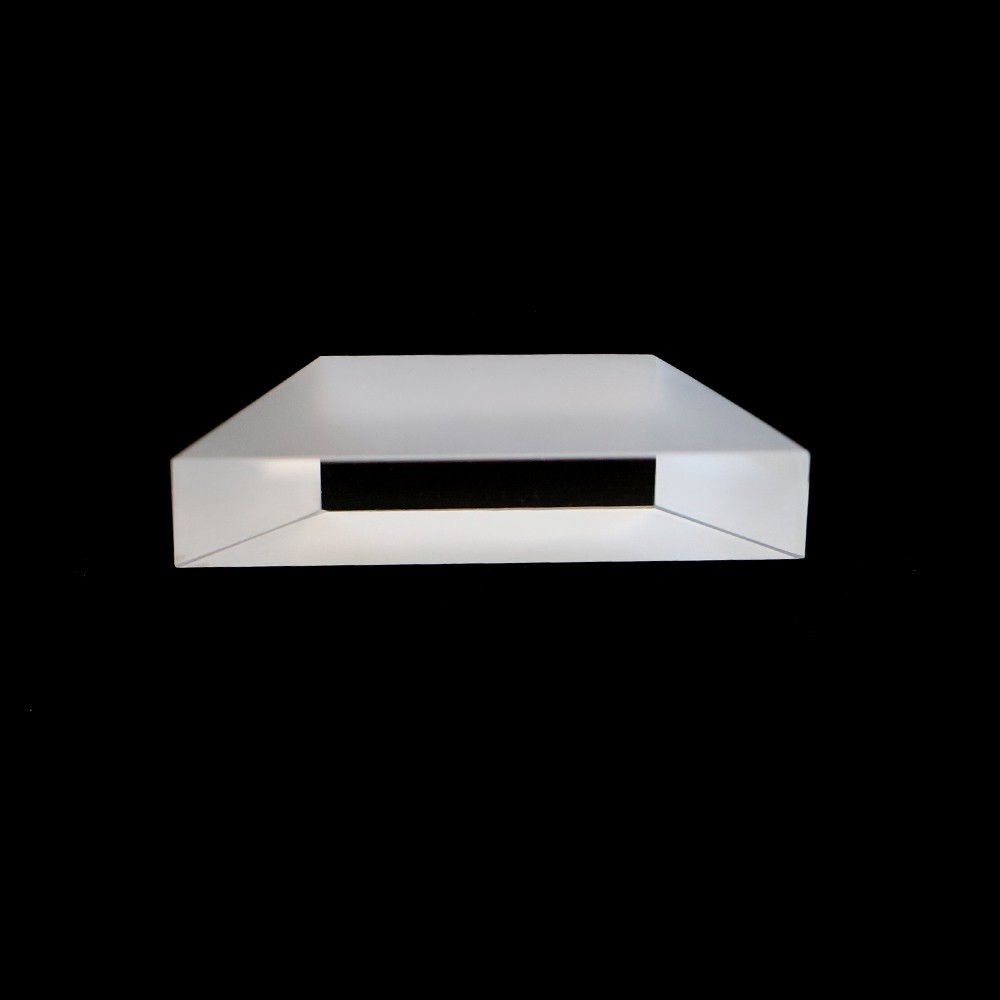

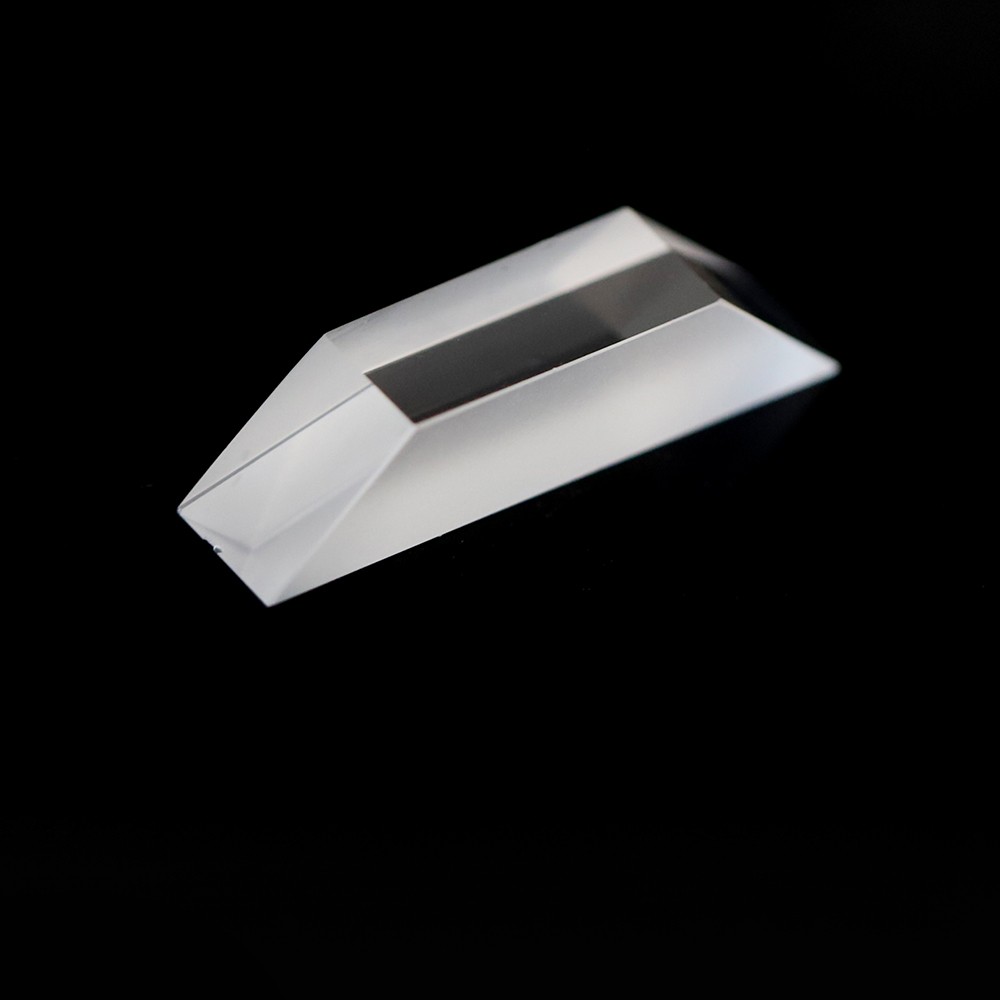

Precision Dove prism (truncated right-angle prism) manufactured from N-BK7 or K9 optical glass, designed to invert an image by 180° or rotate an image at twice the prism's rotation angle when used with collimated light.

The bottom face acts as the total internal reflection surface while the top is typically ground. Commonly used in astronomical instruments, interferometers, pattern recognition systems, laser beam rotation setups, and optical imaging relays.

Best performance achieved with parallel/collimated incident beams. Custom sizes, AR coatings, and tight angular tolerances available for OEM projects.

Description

Our Dove prisms are precision optical elements used to invert or rotate an optical beam with minimal distortion.

Made from high-quality optical glass and available with AR coatings, these prisms provide high transmission, low wavefront error, and stable optical performance.

Applications include:

Laser beam rotation and steering
Optical imaging and microscopy
Interferometry and beam shaping
Scientific research and industrial optical systems

We offer custom Dove prisms with flexible options for size, material, coating, and angular tolerance, making them suitable for both standard optical setups and specialized high-precision applications.
