Description

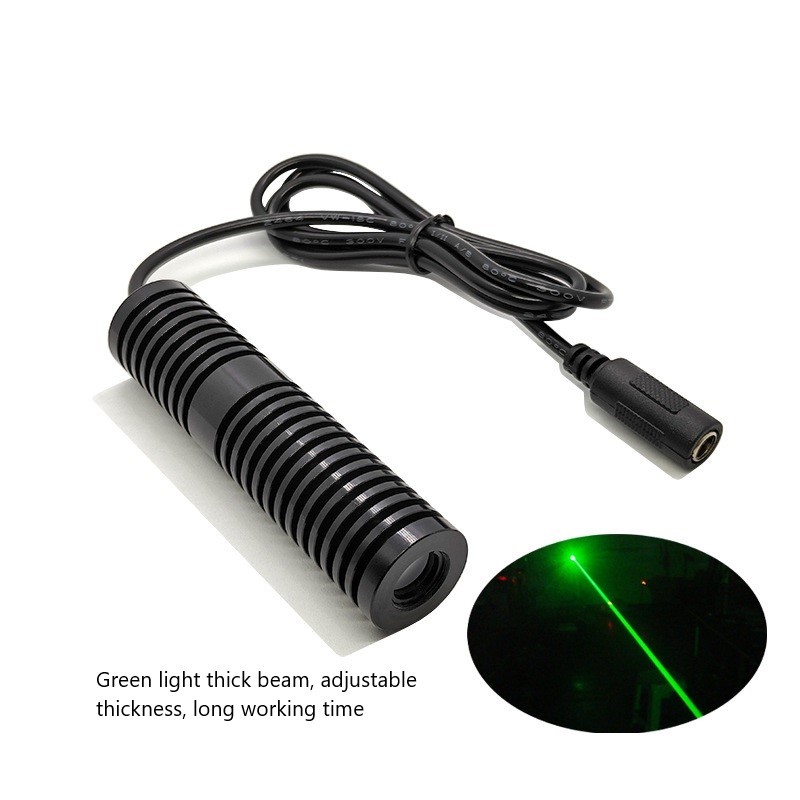

22X90mm laser module 532nm 50mW green laser module22X90mm
Specifications
-
Wavelength: 532nm ±5nm (True Green DPSS)
-
Output Power: 50mW (CW, Class IIIb)
-
Beam Pattern: Dot (Spot) — Line / Cross optional
-
Lens: High-quality Glass Collimating Lens (focus adjustable)
-
Operating Voltage: DC 3.0V–4.2V (typical 3.7V/5V; 12V driver optional)
-
Operating Current: 300–500mA
-
Spot Size: ≤1.5mm @ 1m (adjustable via focus)
-
Beam Divergence: <1.5 mrad
-
Transverse Mode: TEM₀₀
-

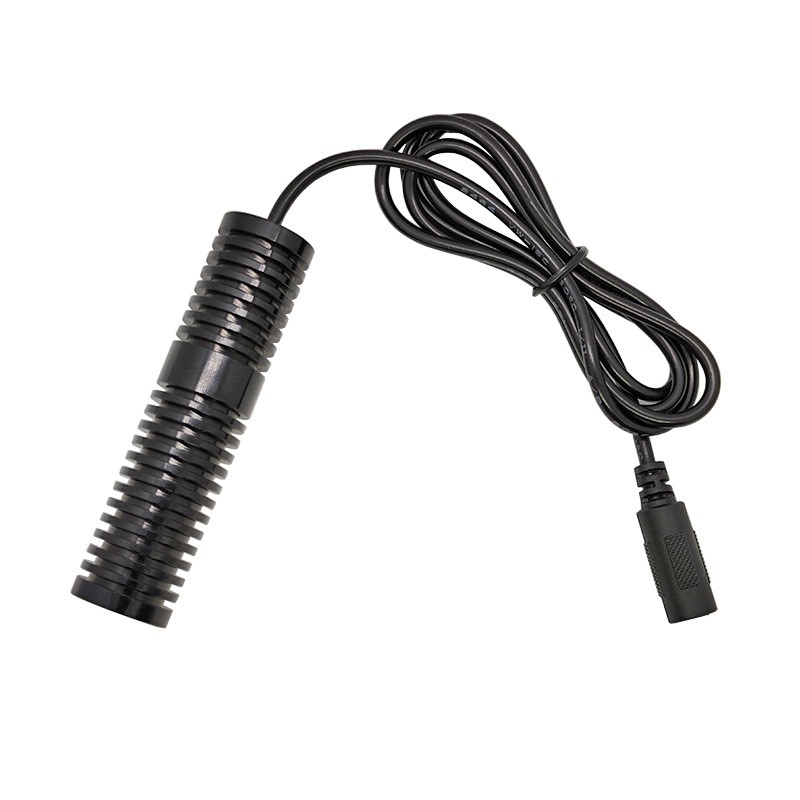

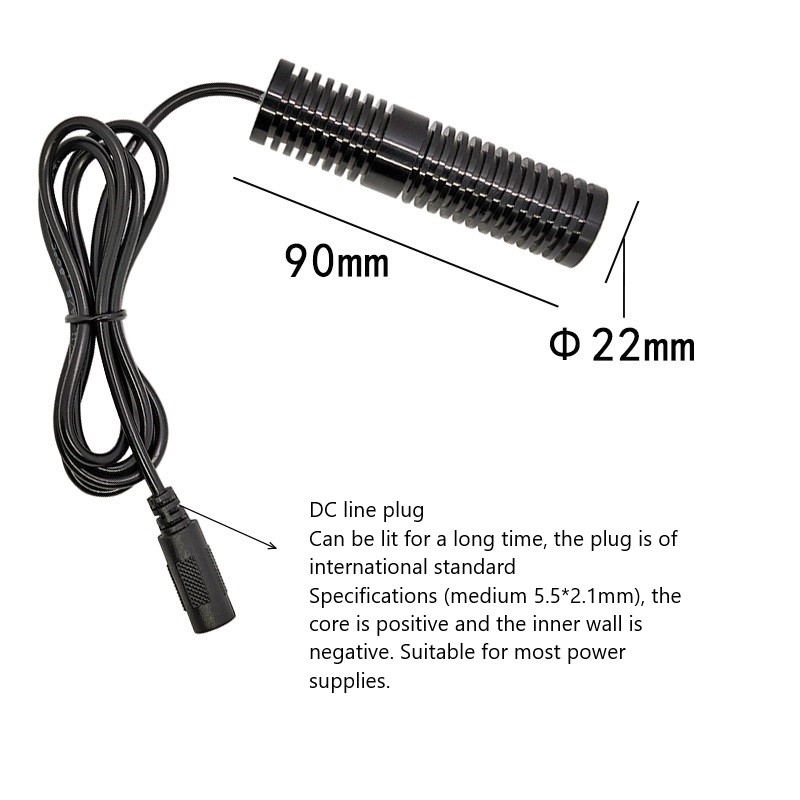

Housing: Φ22×90mm Black Anodized Aluminum (large heatsink, shock protected)
-
Lead Wire: Red(+)/Black(−) 100–200mm or 5.5×2.1mm DC jack (optional)
-
Warm-up Time: <3 min
-
Working Temp.: +10°C to +40°C (extended temp. version available)
-
Storage Temp.: -40°C to +80°C
-
Lifetime: >5,000 hrs
Applications
-
Long-distance pointing & outdoor location indication
-
Surveying instruments & construction leveling reference
-
Industrial machine alignment & positioning
-
Stage lighting, laser show & demonstration
-
Scientific experiment & teaching light source
-
OEM integration in measuring & medical equipment
