60 75 90 110 degree powell lenses Industrial Laser Line Powell Lens – Uniform Line Generator

60 75 90 110 degree powell lenses Industrial Laser Line Powell Lens – Uniform Line Generator

60degree Powell lenses

8mm optical prism

High Precision Powell Lens for Laser Line

Uniform Laser Line Lens

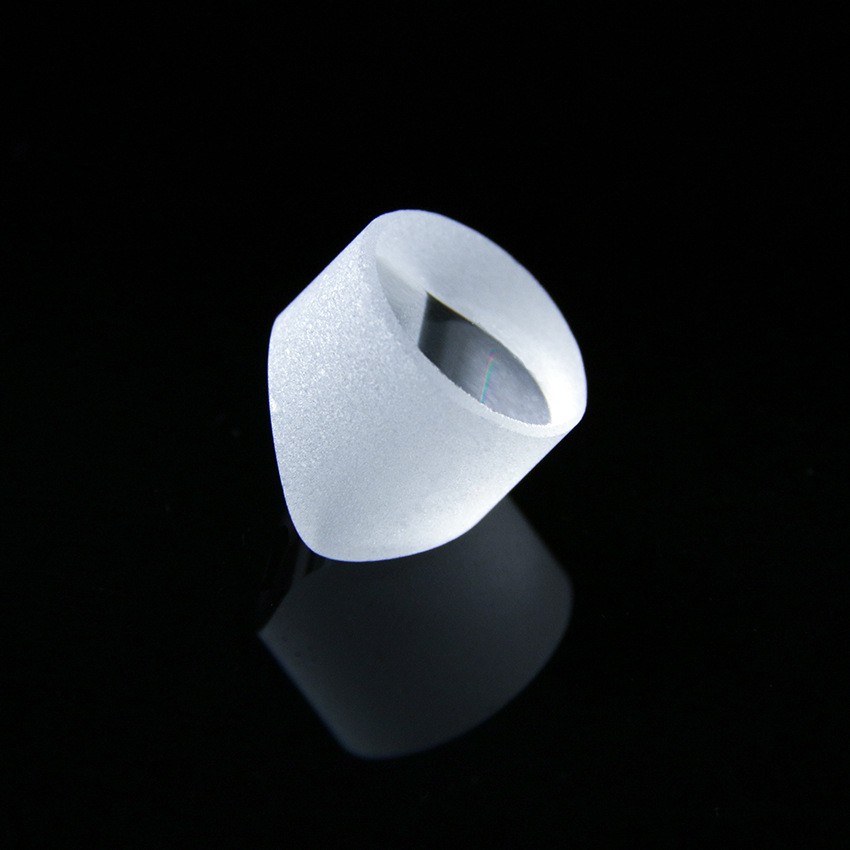

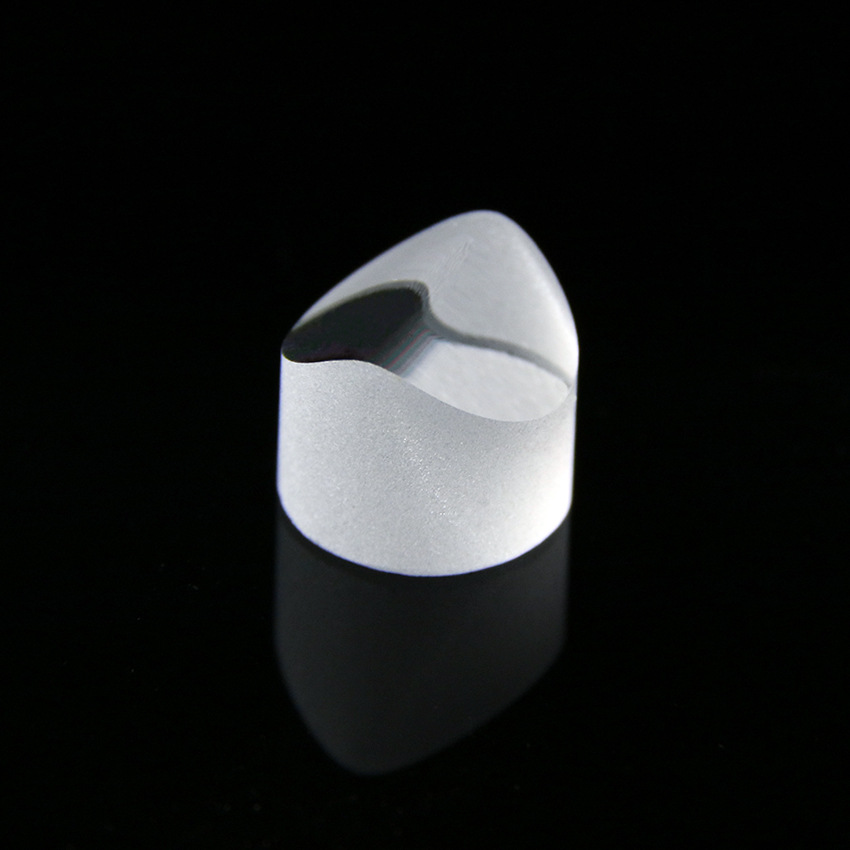

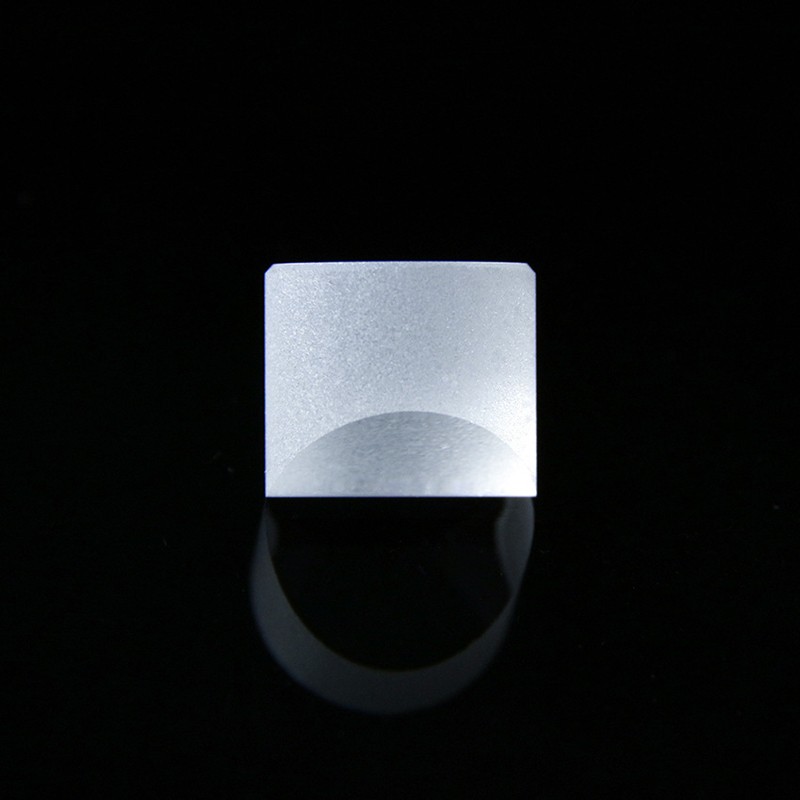

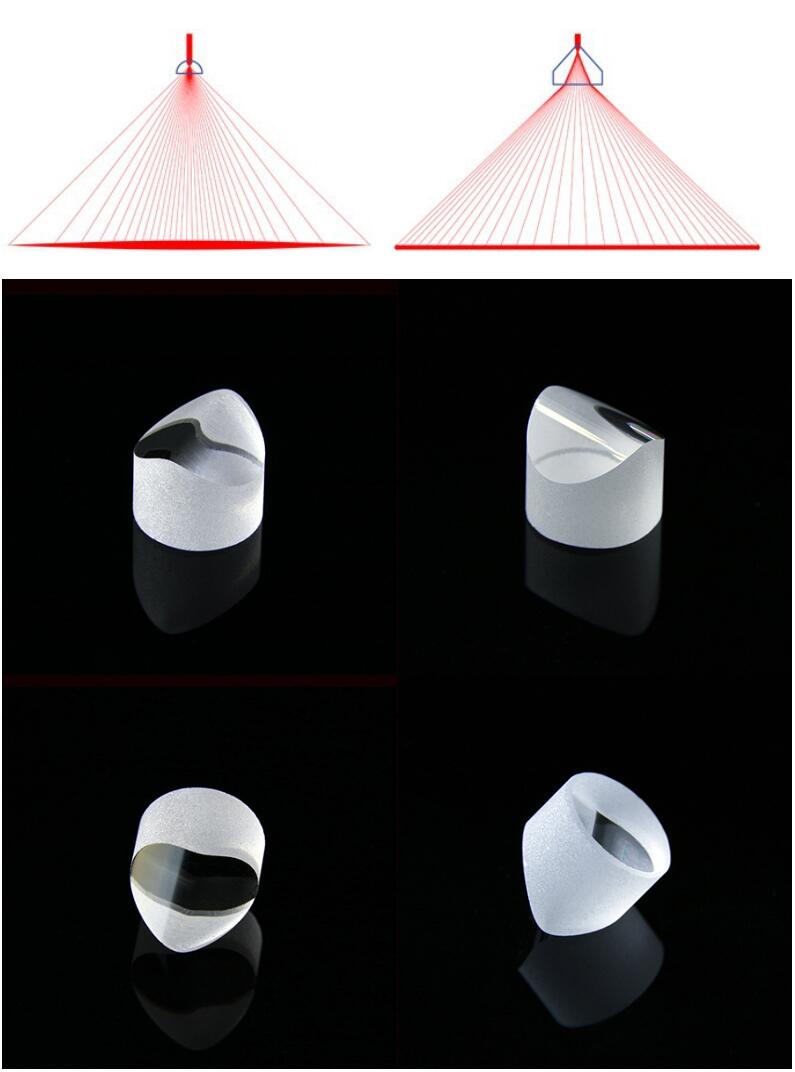

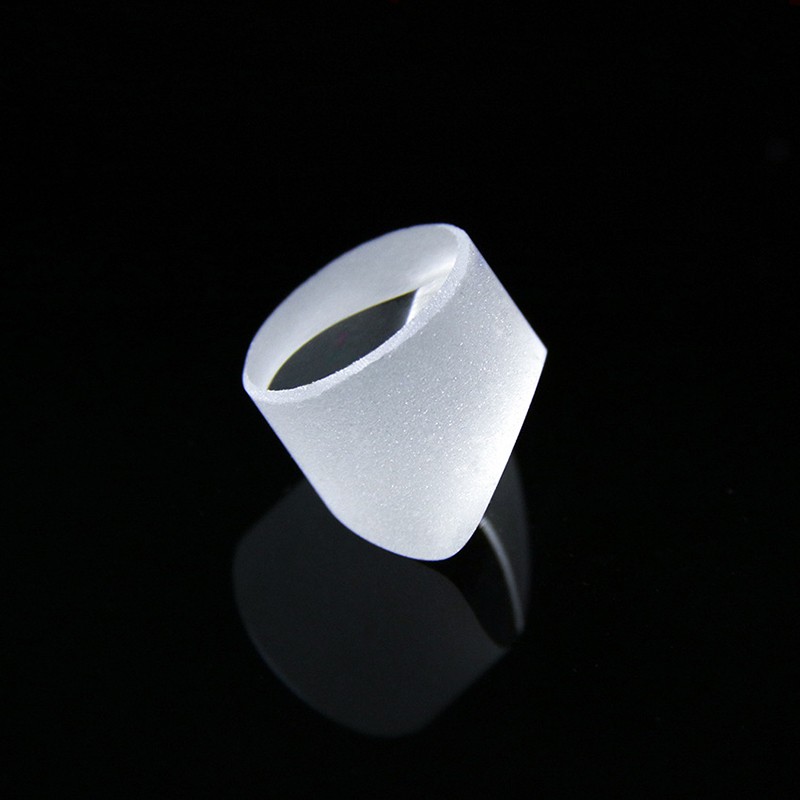

High-quality Powell lens (laser line generating cylindrical prism) precision ground and polished from N-BK7, K9, or UV Fused Silica, designed to convert a collimated Gaussian laser beam into a uniform-intensity straight line with minimal hot spot in the center.

Available in fan angles of 60°, 75°, 90°, 110° and custom angles up to 120°. Optimized for machine vision, 3D scanning, laser profiling, and industrial alignment systems.

Each lens is AR-coated at common laser wavelengths (405nm / 532nm / 635nm / 650nm / 808nm / 1064nm). Custom aperture, line uniformity, and housing mount options supported for OEM integration.

Description

60degree 75 degree 90 degree 110 degree powell lenses factory custom optical prism

Specifications:

Material: N-BK7 (nd=1.5168) / K9 (H-K9L) / UV Fused Silica (JGS1) / Fused Quartz

Lens Type: Powell Lens / Laser Line Generating Prism (Cylindrical Fan-Out Element)

Fan Angle (Line Width): 60° / 75° / 90° / 110° / Custom (30°–120°)

Input Aperture (Clear Diameter): 3mm / 4mm / 5mm / 6mm / 8mm / 10mm / 12.7mm / 15mm / Custom

Thickness / Overall Length: 2mm – 20mm (depends on angle & aperture)

Dimension Tolerance: ±0.05mm / ±0.1mm

Surface Quality (Scratch-Dig): 60-40 / 40-20

Line Uniformity: ±5% / ±10% (typical; tighter available on request)

Beam Deviation: <3 arc min

Coating (AR):

Single Wavelength: 405nm / 450nm / 532nm / 635nm / 650nm / 780nm / 808nm / 940nm / 1064nm
Broadband: 400–700nm / 630–1080nm / Custom

Uncoated Option: Available

Mounting: Unmounted element / Aluminum / Brass / Stainless Steel holder (optional)

Recommended Laser Type: Collimated Gaussian or Diode Laser (TEM₀₀ preferred)

We are professional manufacture on the optical lenses &lasers for over 20 years experience.
With the advanteges,we offer optical products in the fileds of University laboratory, Industry, Scientific research,Medical treatment, Mechanical equipments, lasers and Construction industry and so on.

We can provide optical lenses, optical prisms, high-precision Powell prisms, right-angle prisms, laser lenses, filters, aspherical lenses, collimating lenses, optical glass lenses, optical reflectors, cylindrical lenses, laser modules, laser heads, optical glued lenses, optical rod mirrors, etc.

Looking forward to communicating whether we have the opportunity to cooperate. For the lens/laser products you need, I would like to quote our competitive price.

Please contact for any custom needs,
Contact:Rebecca Xu
