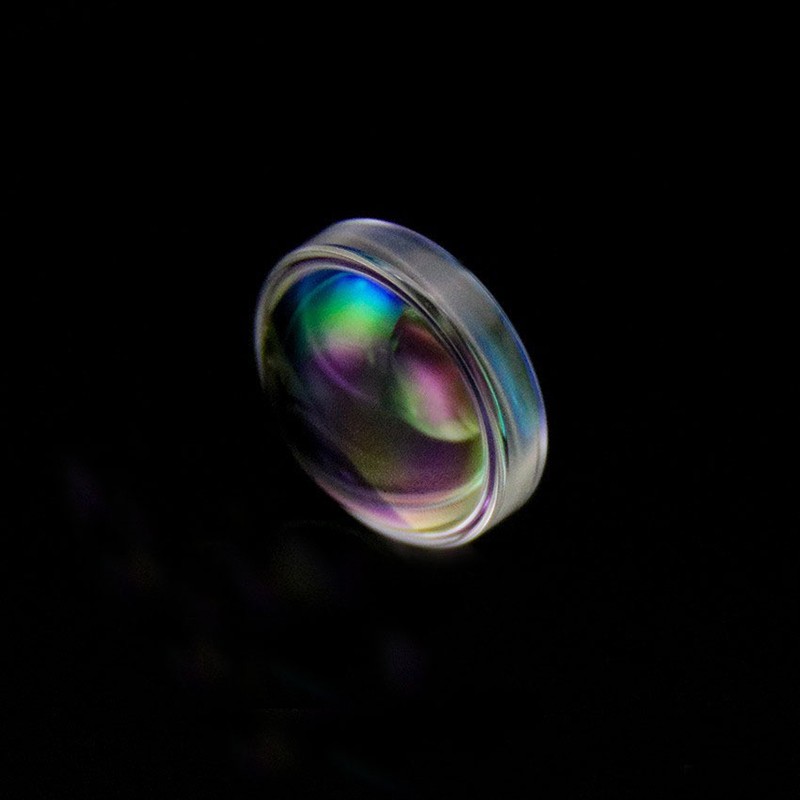

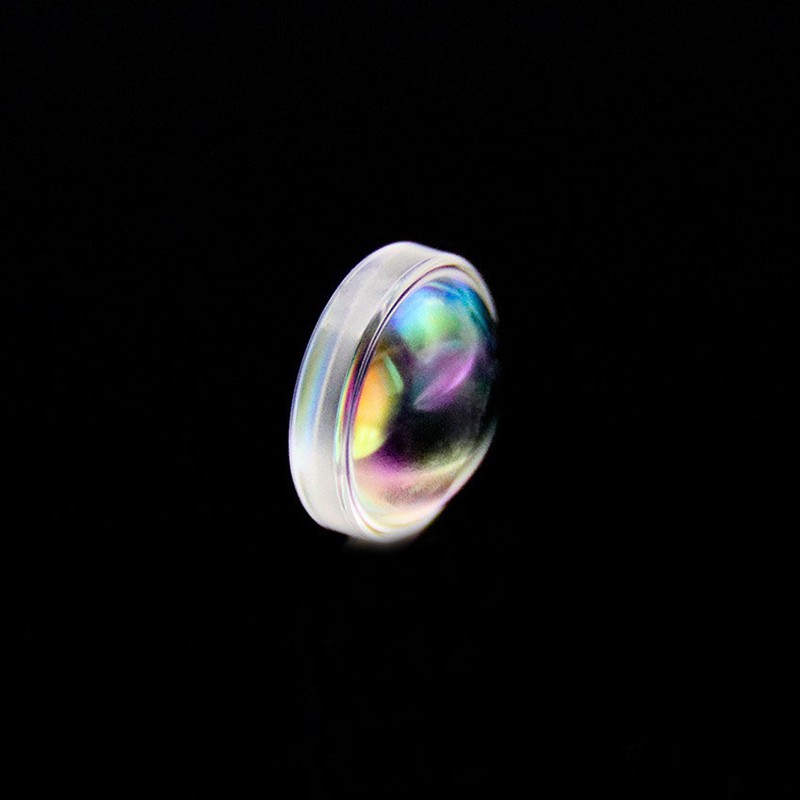

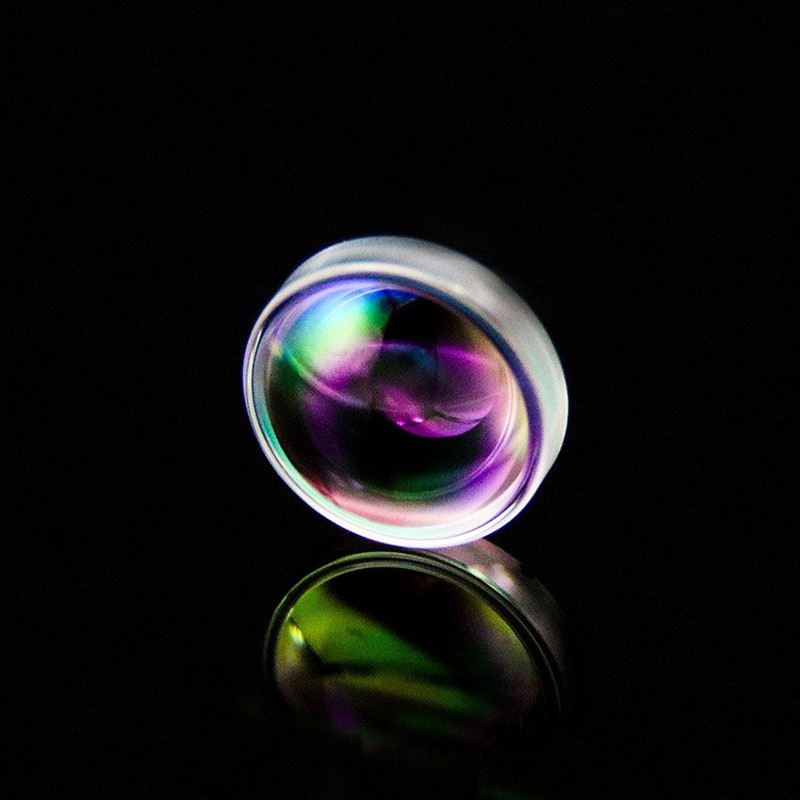

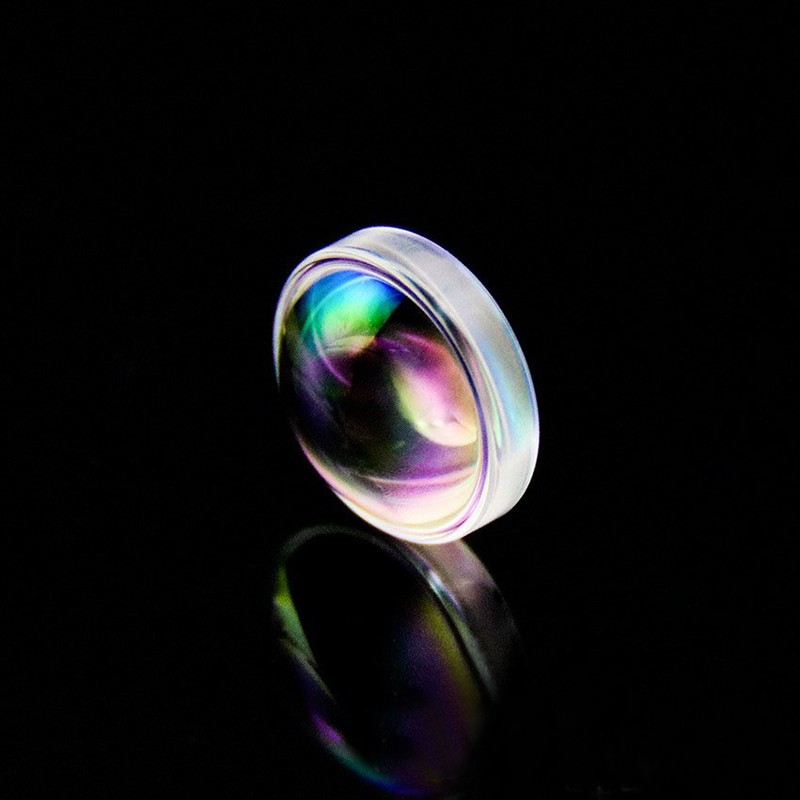

High-precision customized optical glass aspherical singlet lens with 6.325mm clear aperture and 4.5mm effective focal length, specifically designed for 1550nm near-infrared applications such as fiber optic collimation, LiDAR receiver optics, free-space optical communications, and IR sensor focusing.

The aspheric profile eliminates spherical aberration and delivers a diffraction-limited spot with high coupling efficiency.

Anti-reflection coated at 1550nm (V-coat or BBAR 1260–1620nm optional). Molded or polished from low-absorption NIR-grade glass. Ideal for compact telecom/datacom modules, coherent LiDAR, and OEM photonics assemblies.

Description

6.325mm diameter 1550nm aspherical lens manufacture custom4.5mm focal length optical lens

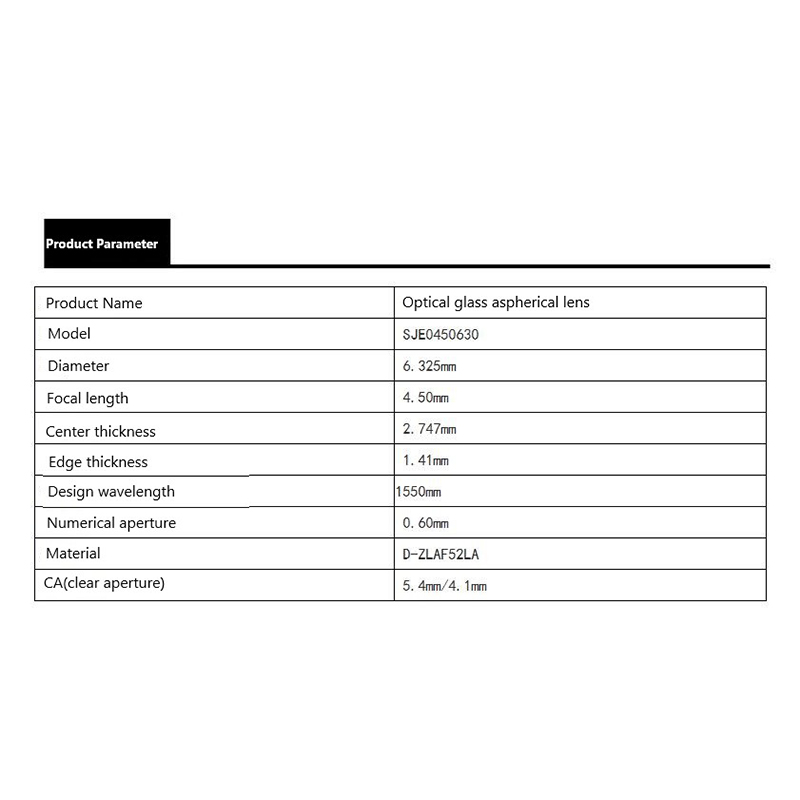

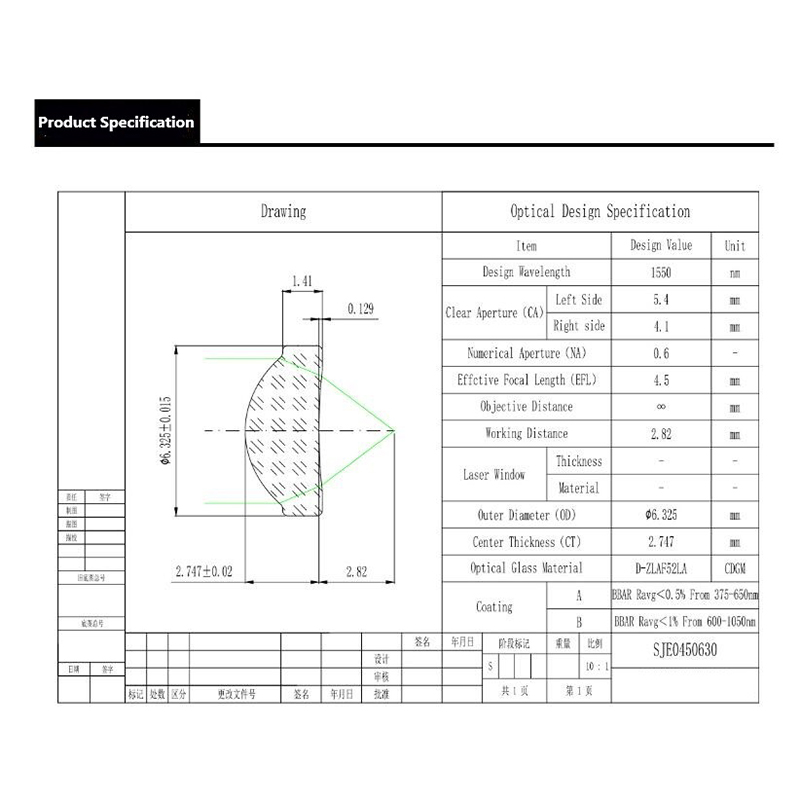

Specifications:

Lens Type: Optical Glass Aspherical Singlet Lens (Molded / Precision Polished)

Material: N-BK7 (for visible ref.), N-SF6 / N-SF11 / IG Series / NIR-Grade Low-OH⁻ Glass (Optimized for 1550nm) / Custom

Diameter (Clear Aperture): 6.325mm (Ø6.325mm) / Custom 1–50mm

Effective Focal Length (EFL): 4.5mm (Custom 2–100mm available)

Back Focal Length (BFL): Specified per design (typically ~3.5–4.2mm for EFL=4.5mm)

Numerical Aperture (NA): ~0.55–0.65 (depends on beam clearance)

Center Thickness: 1.0mm – 3.0mm (design dependent, 4.5mm EFL typical ~1.8mm)

Dimension Tolerance: ±0.02mm

Center Thickness Tolerance: ±0.02mm

Surface Figure (Base Sphere): λ/4 @ 632.8nm (Measured pre-aspheric)

Surface Roughness (RMS): <20nm (Molded) / <5nm (Polished)

Surface Quality (Scratch-Dig): 60-40 / 40-20 / 20-10

Clear Aperture: ≥90% of Ø6.325mm

Edge Treatment: Ground / Edge Blackened (Optional) / Bevel 0.05–0.1mm × 45°

Aspheric Coefficients: Optimized for 1550nm NIR band (available on request)

Coating Options:

V-Coating @ 1550nm (R<0.25% per surface)
Broadband AR 1260–1620nm / 1300–1600nm (Ravg<0.5%)
Dual-Wavelength AR 1310/1550nm (Optional)
Uncoated (Available)

Operating Wavelength: Optimized for 1550nm (Telecom / LiDAR / Sensing)

Transmission: >99% per surface with V-Coat / BBAR

Operating Temperature: -40°C to +85°C
