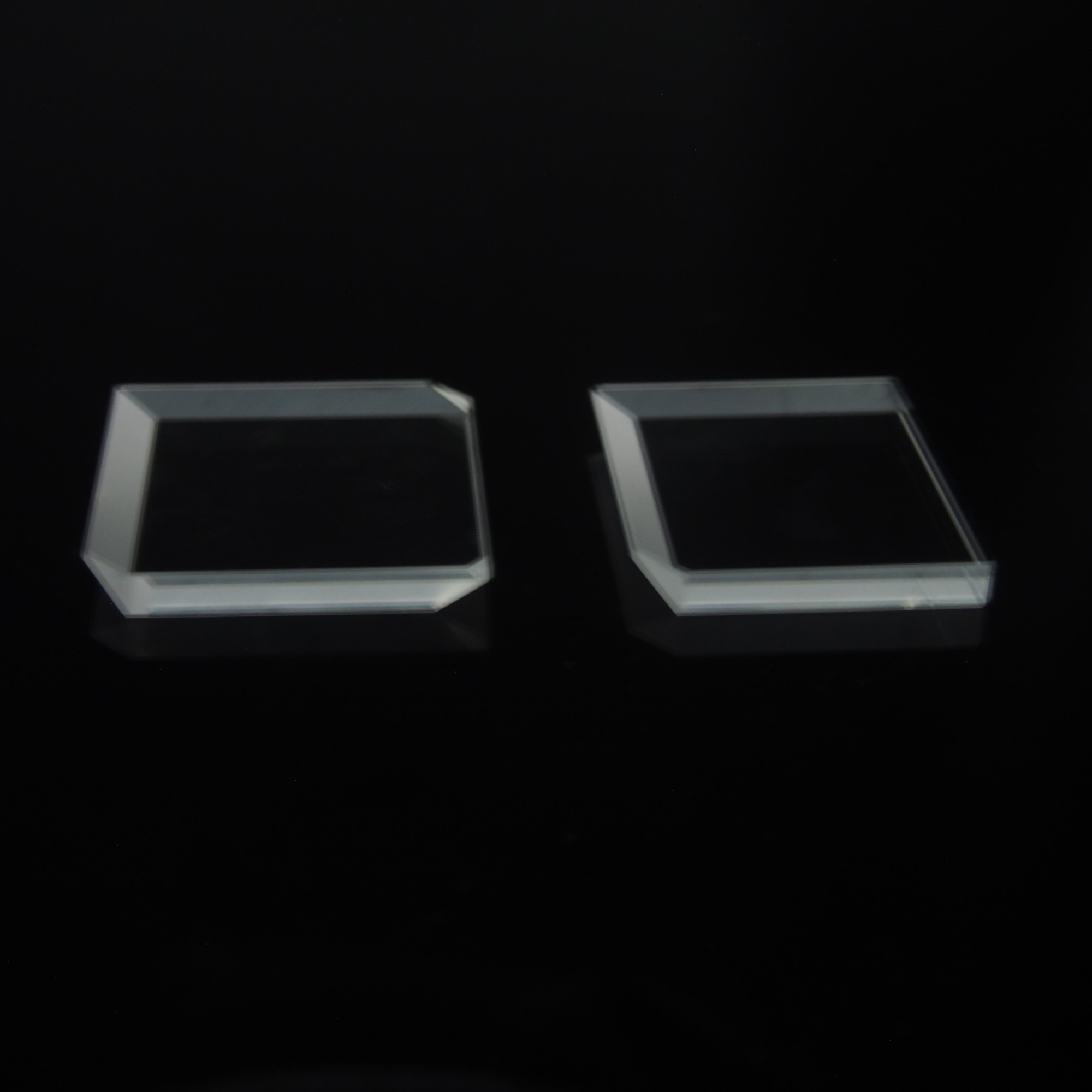

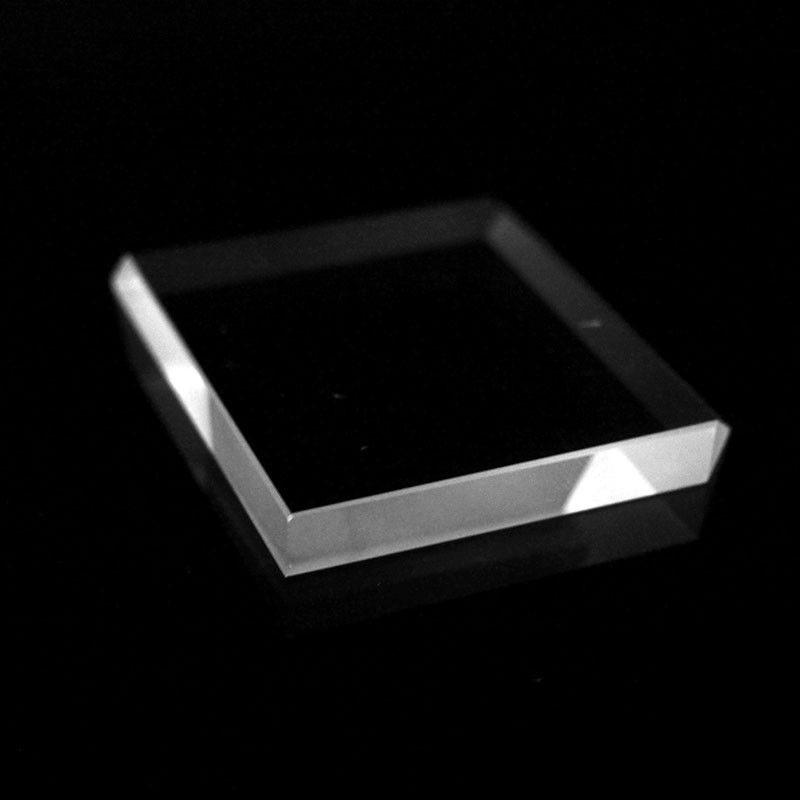

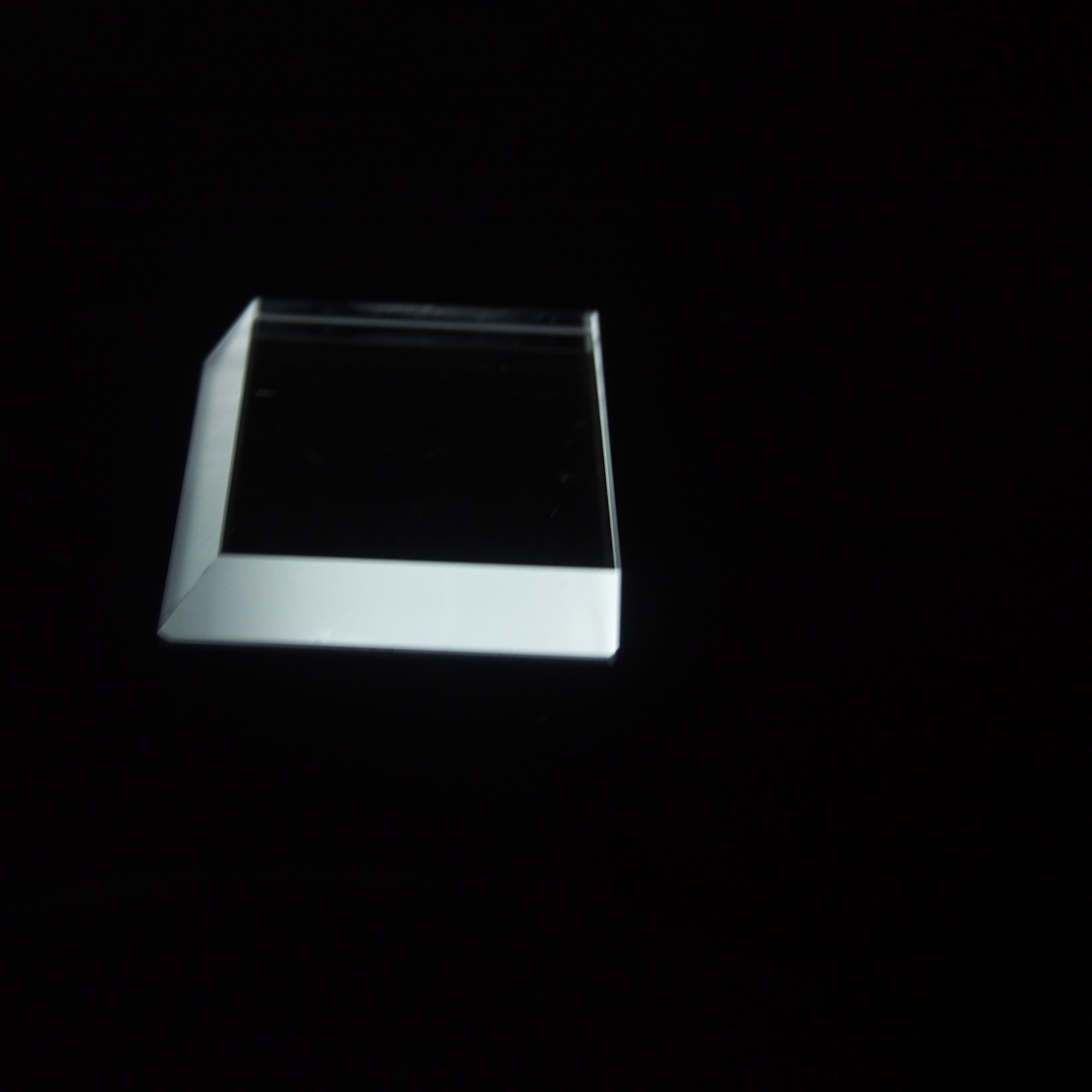

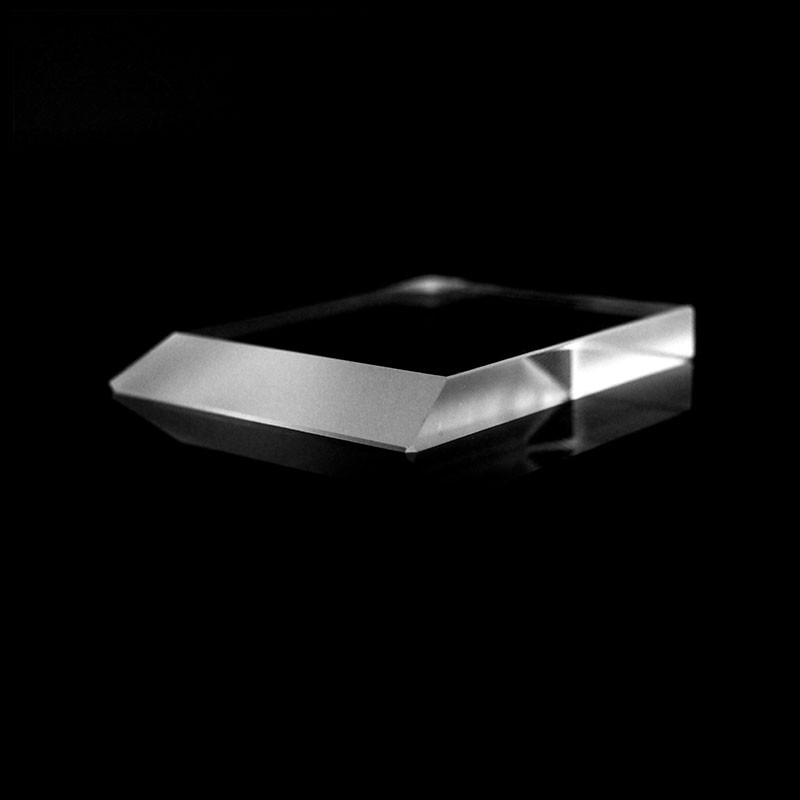

Description
Specifications:
-
Material: Optical Glass (N-BK7, H-K9L), Fused Silica
-
Dimensions: Custom sizes; typical base lengths 10–100 mm
-
Angles: Standard trapezoid angles (e.g., 45°-90°-45°) or custom geometry
-
Surface Accuracy: λ/2 – λ/8 (@ 632.8 nm)
-
Surface Quality: 40-20 or 20-10 Scratch/Dig standard
-
Coating: Uncoated, or with broadband AR/V-coat on request
Primary Applications:
-
Beam Steering & Displacement: Shift optical path without changing direction
-
Interferometry & Metrology: Create reference or probe beam offsets
-
Imaging Systems: Compact periscopes and image rotators
-
Laser Systems: Assembly of ring lasers or folded cavities
-
R&D & Prototyping: Versatile component for custom optical layouts
We provide custom fabrication of trapezoidal prisms to your exact dimensional and angular tolerances. Optional edge blackening and mounting hardware available. Contact us with your design for a prompt quotation.
