Description

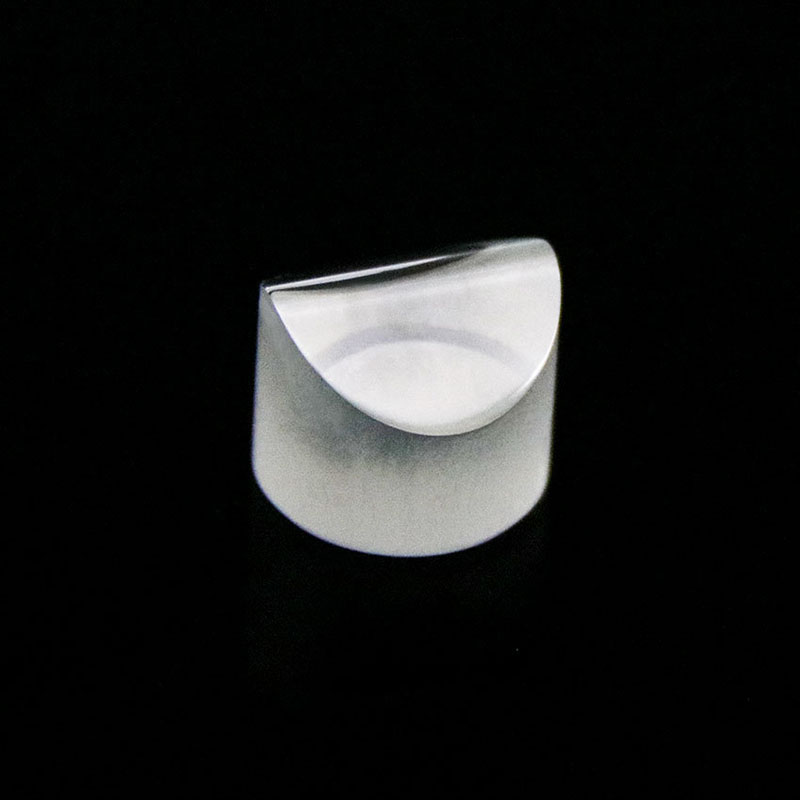

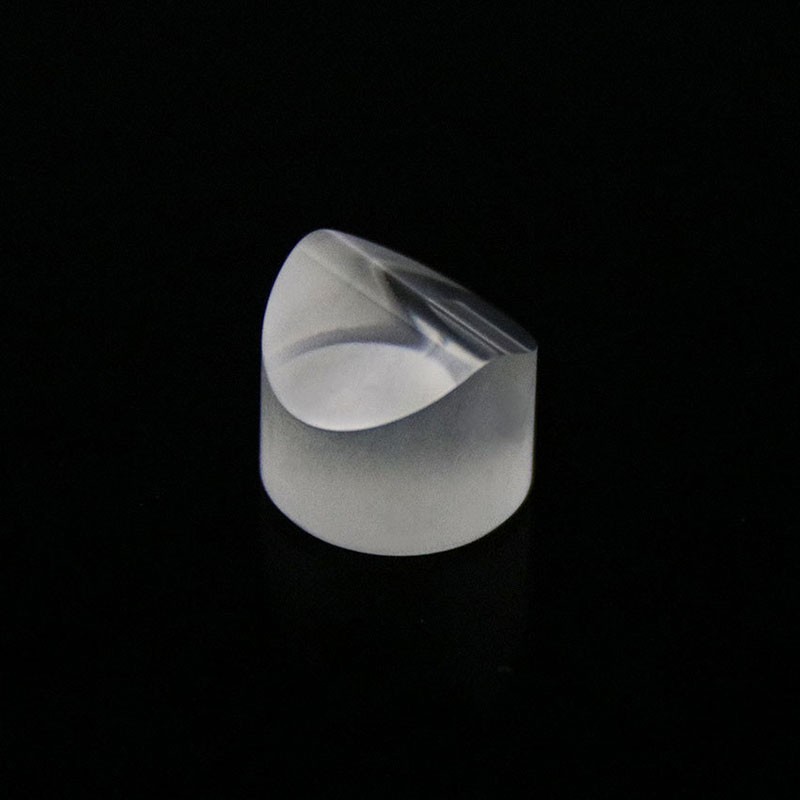

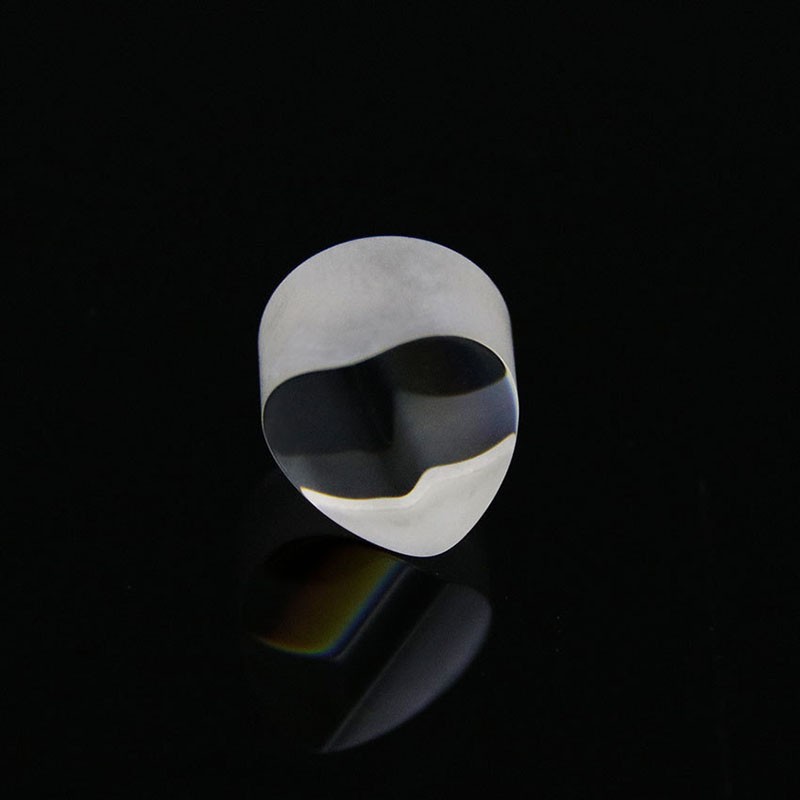

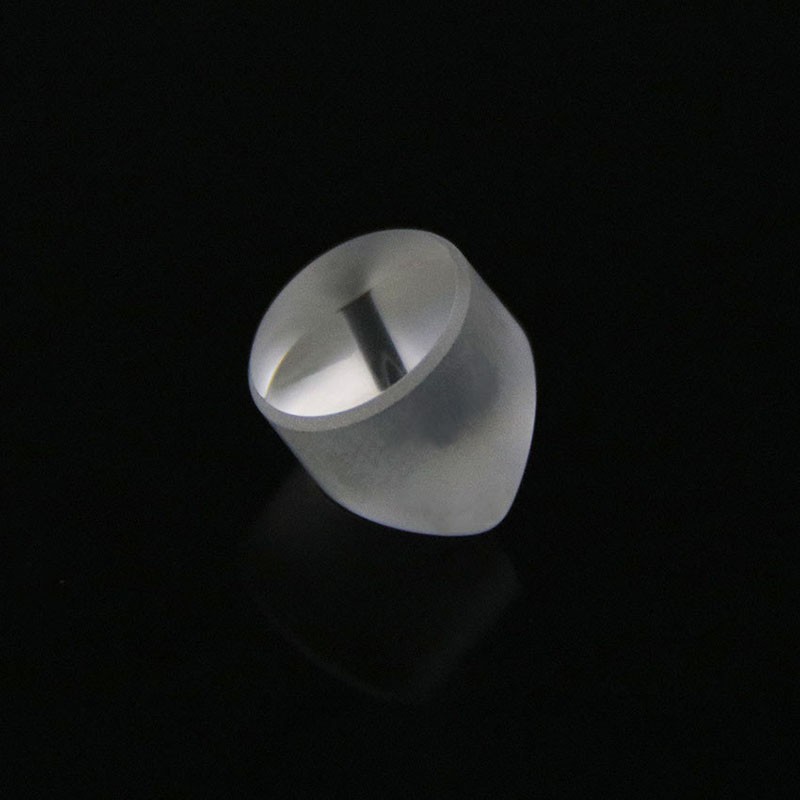

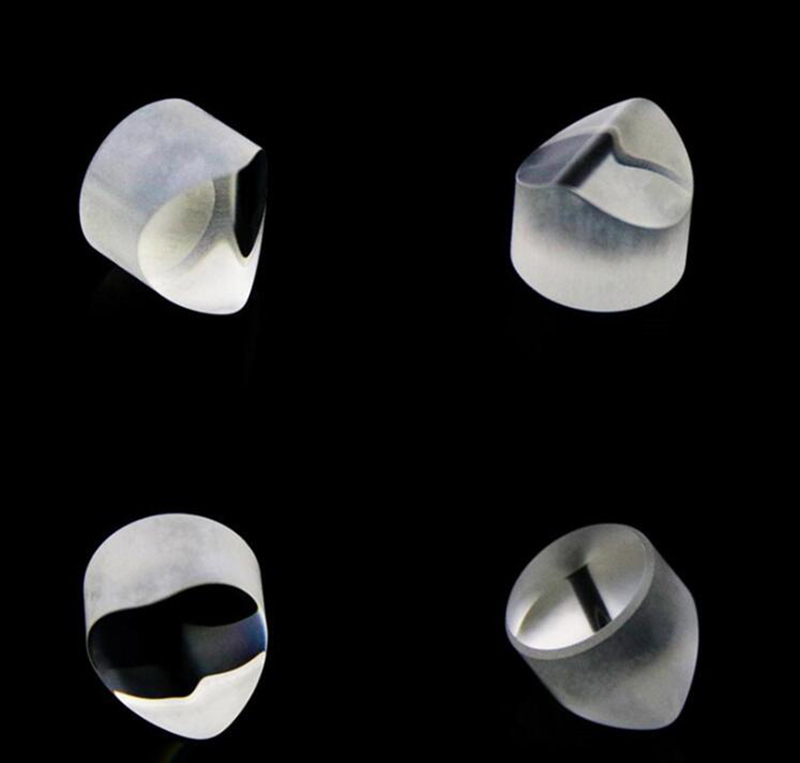

K9 Glass 400-700nm powell prism 60 degree prism for laser emitting medical devices Powell prism manufacture

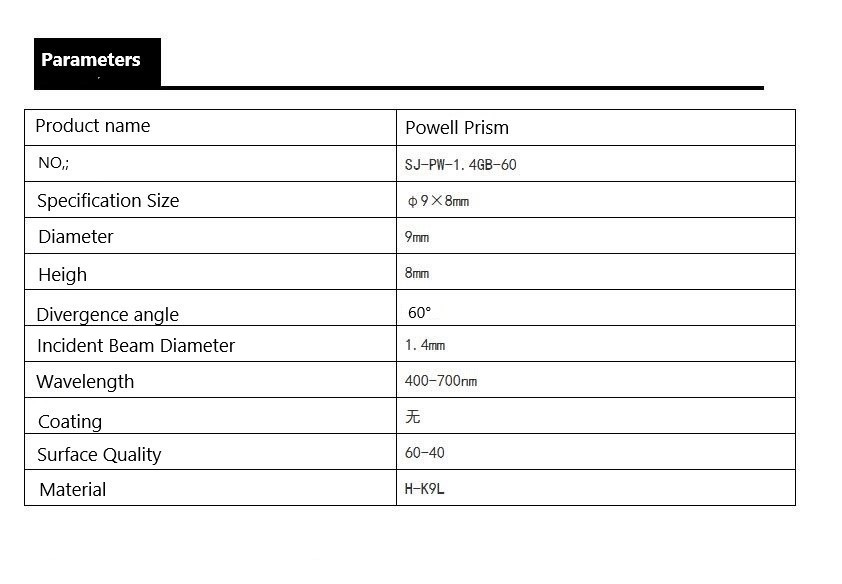

Specifications
- Material: Optical Glass (BK7, Fused Silica, or Customized Materials)
- Wavelength Range: 405nm – 1064nm (Customizable)
- Fan Angle: 5° – 120°
- Diameter: 5mm – 25mm
- Surface Quality: 60-40 Scratch-Dig or Better
- Surface Accuracy: λ/4 @ 632.8nm
- Coating Options: AR Coating, Broadband AR Coating, Custom Coatings
- Angle Tolerance: ±0.1° to ±0.5°
- Custom Designs Available
Features
- Generates highly uniform laser lines
- Excellent energy distribution across the entire line
- High optical transmission efficiency
- Compact and durable design
- Suitable for visible, UV, and infrared laser systems
- Custom fan angles and wavelengths available
Applications
Optical Powell prisms are widely used in:
- Machine Vision Systems
- 3D Laser Scanning
- Industrial Inspection Equipment
- Laser Alignment and Positioning
- Robotics and Automation
- Medical Imaging Devices
- Semiconductor Inspection
- Laser Measurement Systems
- Barcode and Logistics Scanning
- Scientific Research Instruments
To improve transmission efficiency and ensure stable laser performance, Changchun Realpoo provides customized optical coatings for different wavelength applications.
Anti-Reflection (AR) Coating
Broadband AR Coating
Custom Laser Coating
Available coating wavelengths include:
Optical Coating Options
Reduces surface reflection and improves laser transmission efficiency.
Suitable for multi-wavelength optical systems requiring wide spectral performance.
Optimized for specific laser wavelengths and high-performance applications.
