400-700nm PMMA infrared acrylic filter lens optical filter

400-700nm PMMA infrared acrylic filter lens optical filter

glass optical filter

custom optical filter

factory offer optical filter

400-700nm PMMA optical filter

High-performance infrared transmitting filter fabricated from modified PMMA (polymethyl methacrylate) acrylic resin with embedded nano-scale IR-transmissive compounds.

It appears visually opaque black to the human eye with less than 1% transmission across the 400–700 nm visible band, yet delivers greater than 85–95% transmission in the near-infrared (NIR) region (720–1100 nm, optimized at 850 nm / 940 nm).

This unique property allows the filter to conceal internal electronic components behind a black surface while efficiently passing IR signals for remote control, facial recognition, gesture sensing, and night vision illumination.

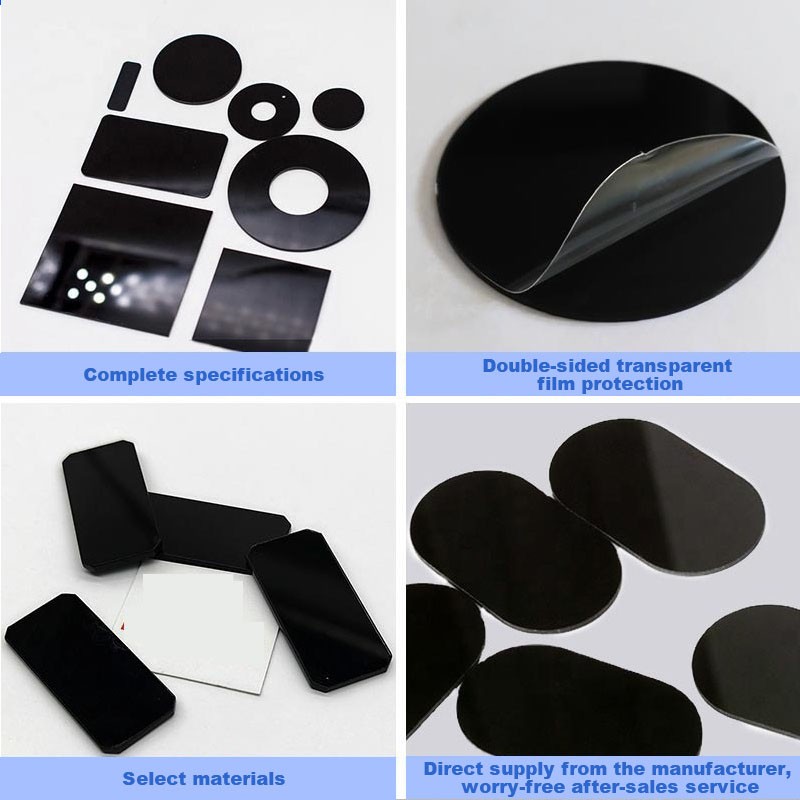

Available as injection-molded, CNC-cut, or laser-cut custom shapes (round, square, strip, complex geometry) with ±0.02 mm precision.

Description

400-700nm PMMA infrared acrylic filter lens optical filter

Applications:

Biometric Access Control — Smart lock IR window, facial recognition terminal, fingerprint scanner cover
Security & Surveillance Cameras — Night vision IR filter panel for covert monitoring
Automotive Electronics — Driver Monitoring System (DMS) IR window, gesture recognition receiver, rain/light sensor cover
Smart Home & IoT Devices — IR remote control receiver window (TV, AC, set-top box), automatic faucet sensor
Medical & Industrial Sensing — Infrared thermometer optical window, pulse oximeter sensor cover, AGV obstacle avoidance sensor
Machine Vision & Robotics — NIR illumination window, structured light transmitter/receiver cover
