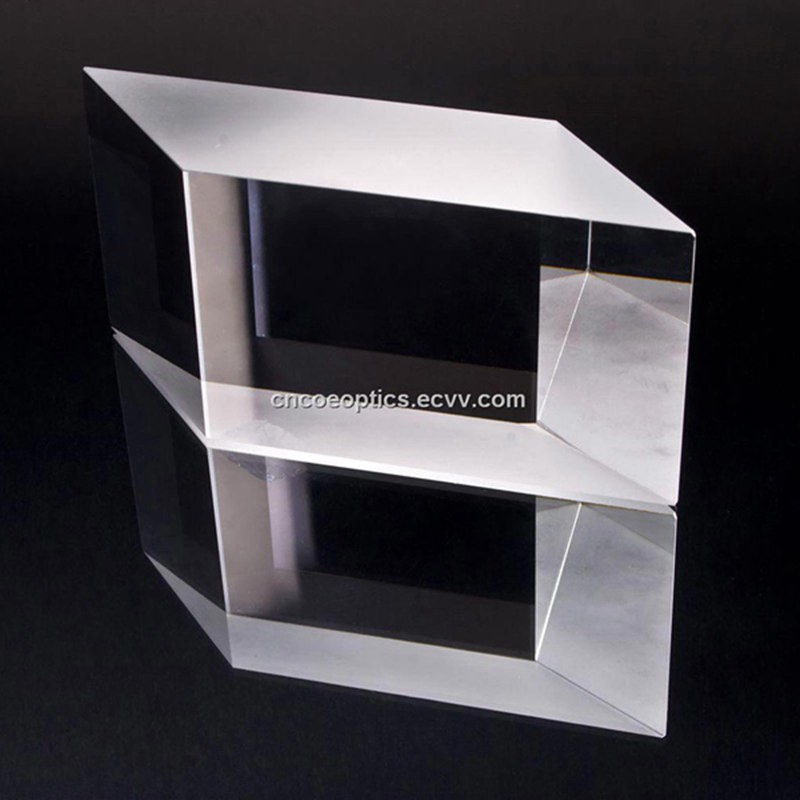

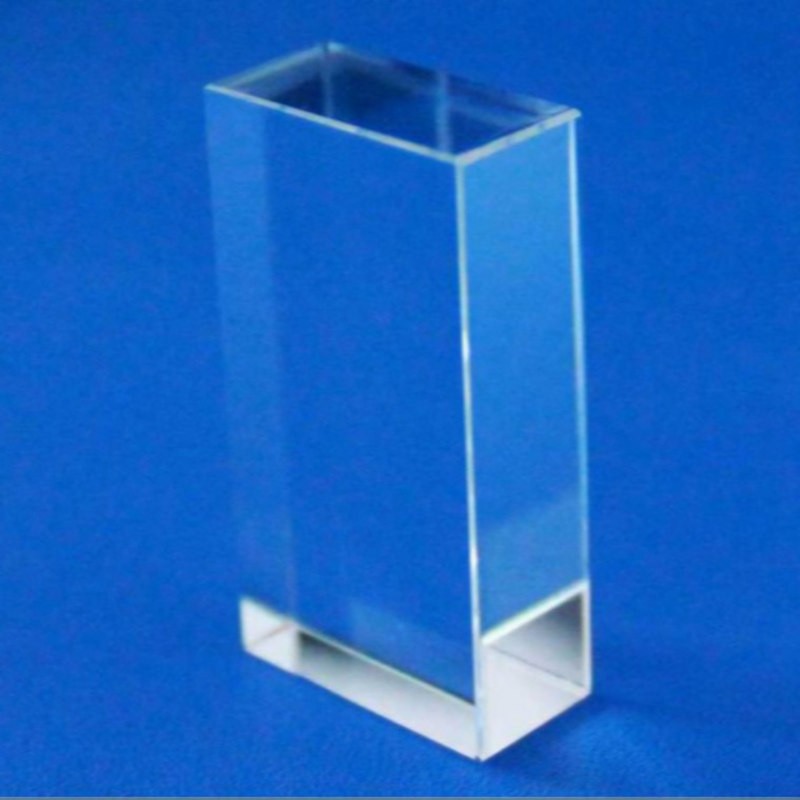

Custom Optical roof penta prism pentagonal prism

Custom Optical roof penta prism pentagonal prism

Optical glass half penta prism

custom penta prism

penta optical prism

roof penta prism

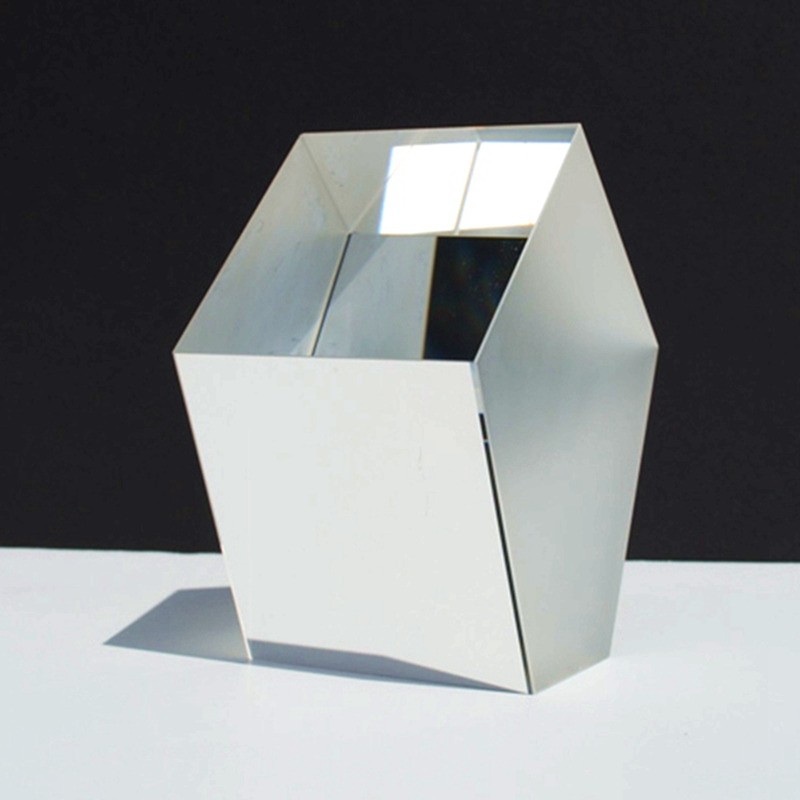

High-precision penta prism and roof penta prism manufactured from N-BK7, B270, or UV Fused Silica, designed to deviate an incident beam or image by a constant 90° without inverting or reversing (roof version provides left-right image correction for SLR viewfinders).

Internal reflecting surfaces are aluminized or dielectric coated; entrance and exit faces can be AR-coated. Widely used in SLR cameras, rangefinders, surveying levels, alignment tools, and optical viewing systems. Custom sizes, roof angle tolerances, and coatings available for OEM/ODM.

Description

Factory custom Optical glass penta prism optical prism

Specifications:

Material: N-BK7 (nd=1.5168), B270 Crown Glass, UV Fused Silica / Custom

Prism Type: Pentagonal Penta Prism / Roof (Dachkanten) Penta Prism

Beam Deviation Angle: 90° ±30 arc sec (Standard), ±3~±5 arc sec (High Precision)

Enter / Exit Face Angle: 90°, Internal Reflecting Angles 45° & 45°

Aperture Size (Face Width): 5mm / 10mm / 15mm / 20mm / 25mm / 30mm / 50mm / Custom

Dimension Tolerance: ±0.05mm / ±0.1mm

Angle Tolerance: ±30 arc sec (Standard), ±1 arc min / ±3 arc sec available

Roof Edge Angle Tolerance (Roof Type): 90° ±2~5 arc sec (Phase-corrected coating optional)

Surface Flatness: λ/4 @ 632.8nm (λ/10 available on request)

Surface Quality (Scratch-Dig): 60-40 / 40-20 / 20-10 (MIL-PRF-13830B)

Clear Aperture: >85%–90% of face area

Bevel / Chamfer: 0.1–0.3mm × 45°

Coating: Reflecting faces—Protected Al / Enhanced Al / Dielectric + Black Paint; Entrance & Exit—Uncoated / AR 400–700nm / BBAR

Transmittance: >90% with AR coating (Visible optimized)

Applications:

SLR camera viewfinders and photographic equipment (roof penta prism)

Surveying instruments, builders' levels, and alignment tools

Rangefinders and distance measurement devices

Optical tooling, beam steering, and 90° image relay systems

Binoculars and telescope viewing attachments

Custom OEM optical instrumentation requiring precise 90° deviation

We are professional manufacture on the optical lenses &lasers for over 20 years experience.
With the advanteges,we offer optical products in the fileds of University laboratory, Industry, Scientific research,Medical treatment, Mechanical equipments, lasers and Construction industry and so on.

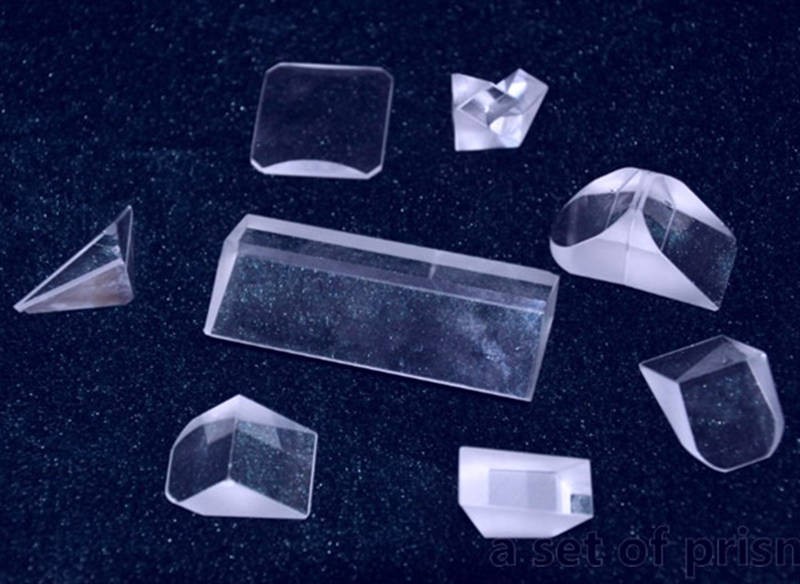

We can provide optical lenses, optical prisms, high-precision Powell prisms, right-angle prisms, laser lenses, filters, aspherical lenses, collimating lenses, optical glass lenses, optical reflectors, cylindrical lenses, laser modules, laser heads, optical glued lenses, optical rod mirrors, etc.
