20*90mm 405nm 80mw laser module

405nm 80MW laser module

20*90mm laser module for laboratory

405nm 80MW laboratory laser module

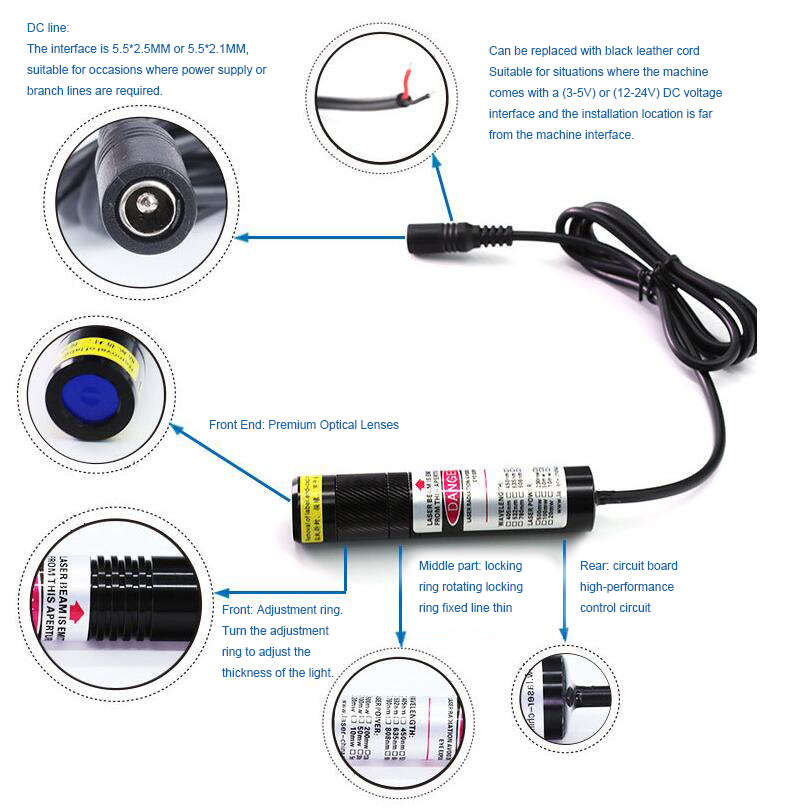

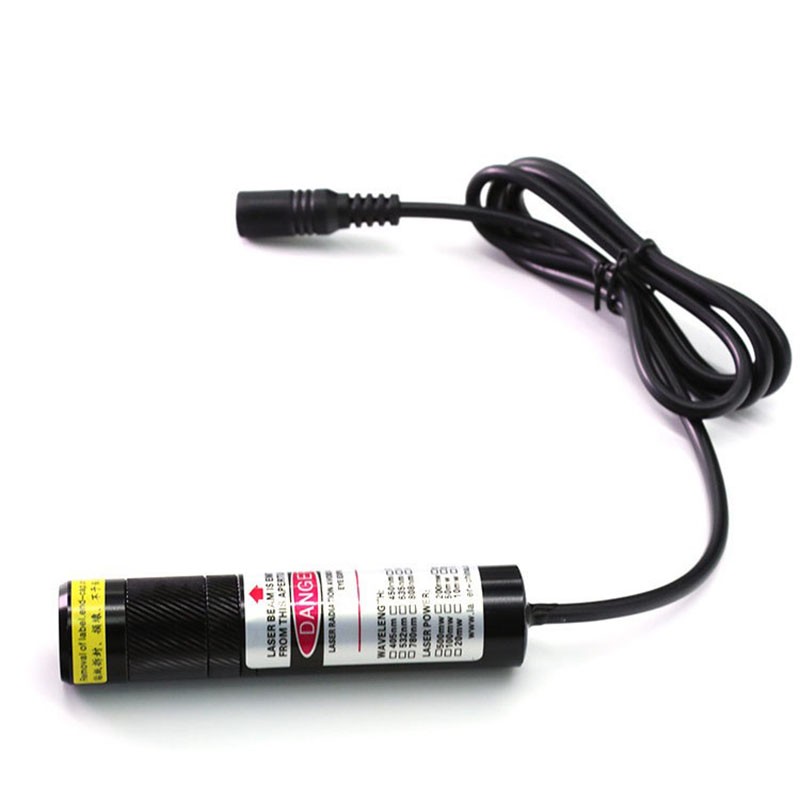

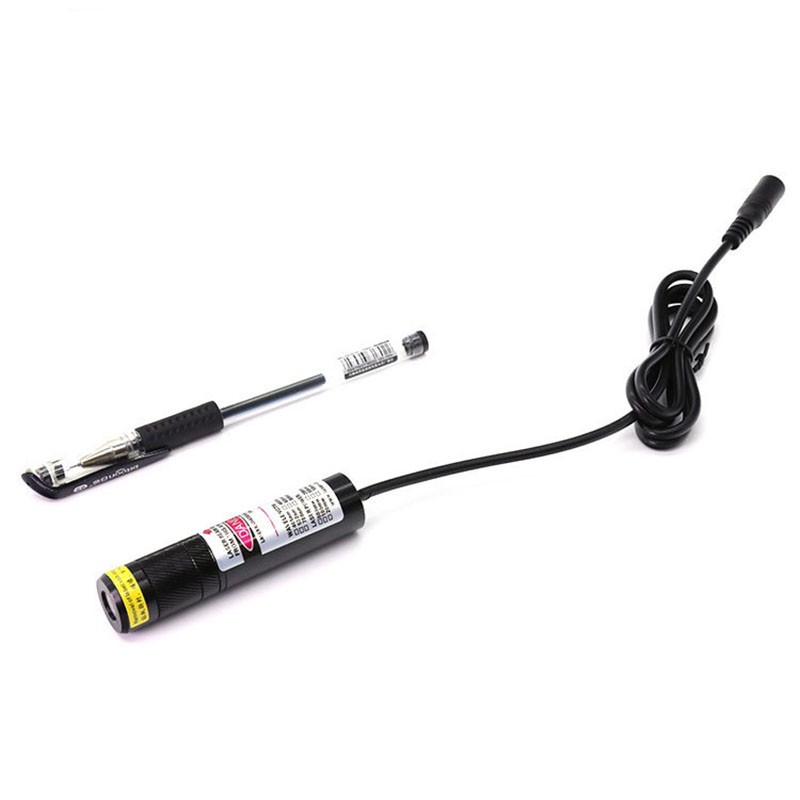

Professional-grade Φ20×90mm violet laser module with 405nm wavelength and 80mW output, featuring a high-quality glass collimating lens, built-in APC (Auto Power Control) constant current driver, and an externally adjustable focus mechanism.

The 405nm violet beam produces a tight, low-divergence spot with superior short-wavelength resolution—ideal for fluorescence excitation, UV curing, 3D printing (SLA/DLP), PCB exposure, machine vision, and scientific instrumentation requiring precise, stable violet light output.

Description

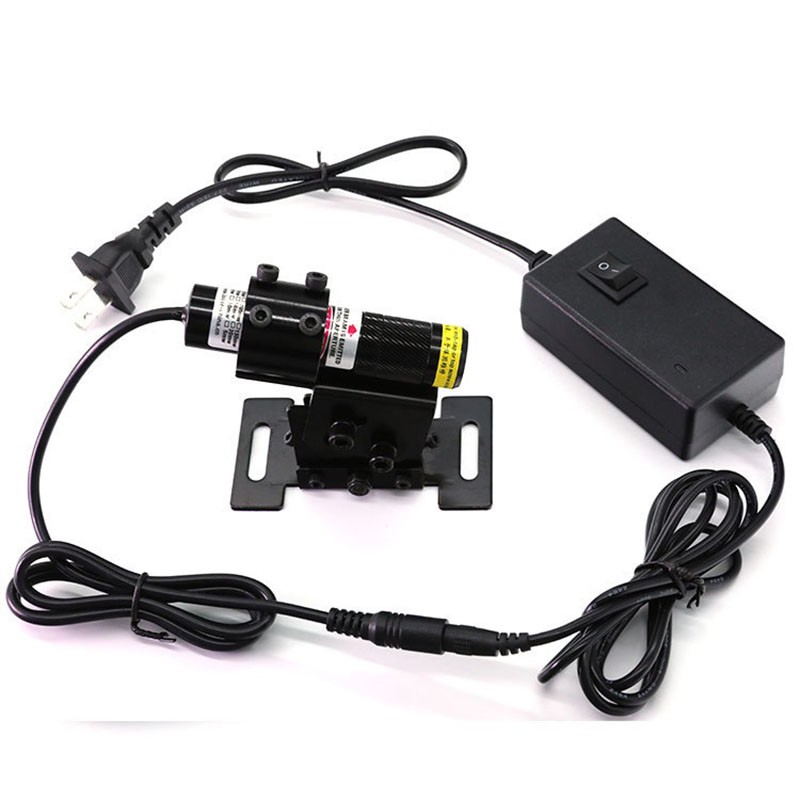

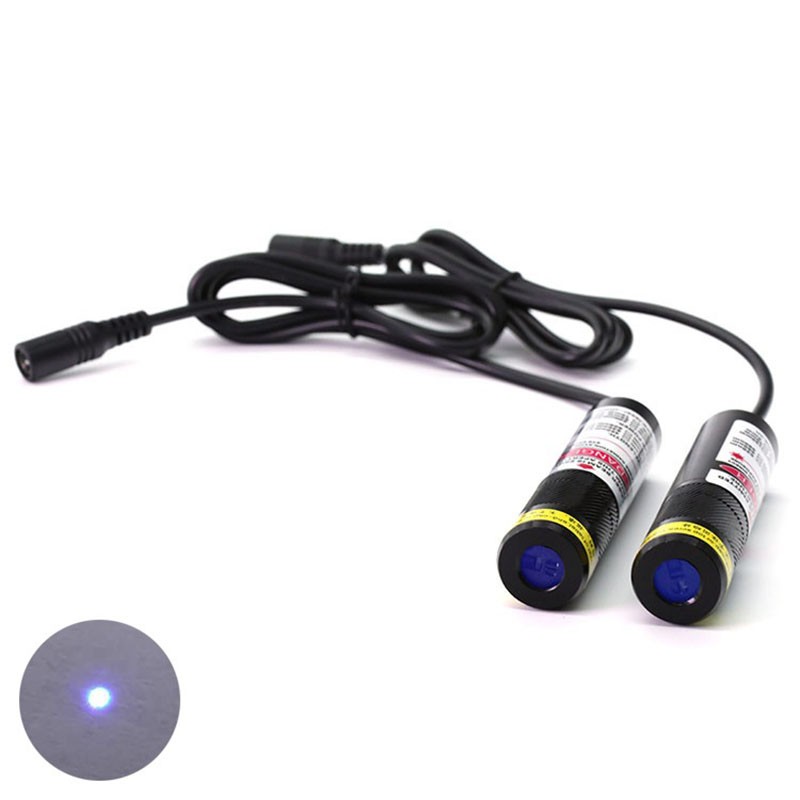

20*90mm 405nm80MW laboratory laser module collimated beam adjustable point laser transmitter

Specifications

Wavelength: 405nm ±5nm (Violet / Near-UV)
Output Power: 80mW (CW, Class 3B)
Beam Pattern: Dot (Spot) — Line / Cross optional
Lens: Multi-coated Optical Glass Collimating Lens (external focus adjustable without tools)
Operating Voltage: DC 3V–30V (wide voltage range; typical 5V/12V/24V)
Operating Current: <250mA
Spot Size: ≤1.0mm @ 1m (adjustable via focus ring)
Beam Divergence: <1.0 mrad
Transverse Mode: TEM₀₀
Modulation: Up to 400kHz (TTL/Analog, optional)
Housing: Φ20×90mm Black Anodized Aluminum (IP67 sealed, heavy-duty heatsink, shock resistant)
Lead Wire: Red(+)/Black(−) 150–200mm or terminal connector (customizable)
Working Temp.: -10°C to +50°C
Storage Temp.: -40°C to +80°C
Protection: ESD, Reverse Polarity, Overcurrent Protection
Lifetime: >8,000–10,000 hrs
