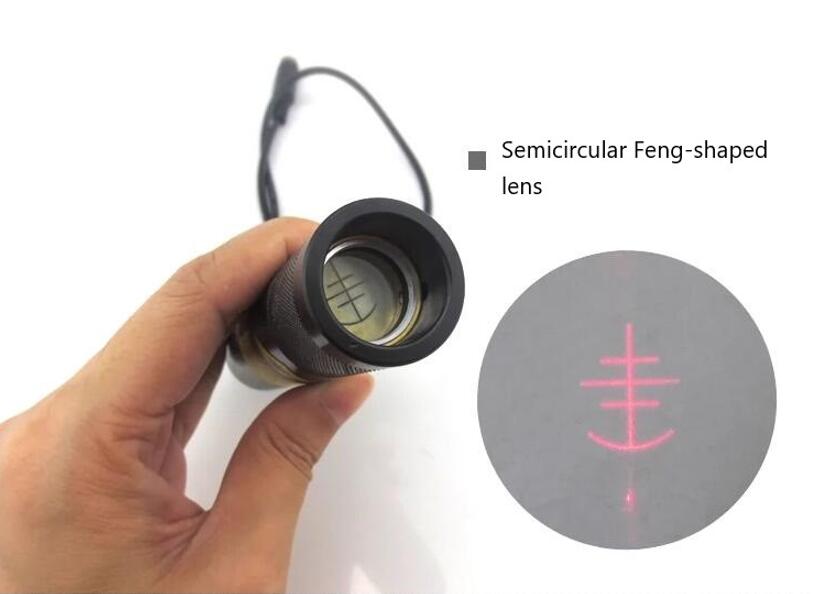

Three-Horizontal & One-Vertical Laser Positioning Module, Laser Module for Shoe Factories
Specifications
- Product Type: Multi-Line Positioning Laser Module (3 Horizontal + 1 Vertical)
- Wavelength: 520 nm / 635 nm / 650 nm (custom)
- Output Power: 1–50 mW (custom)
- Beam Pattern: 3 Horizontal Lines + 1 Vertical Line (custom)
- Fan Angle (Line): 10°–110° per line
- Line Width @ 1 m: < 1.0 mm
- Luminance Uniformity: > 85%
- Focus: Adjustable / fixed
- Operating Voltage: 3.3 V / 5 V / 12 V / 24 V DC
- Driver: Built-in APC (Auto Power Control), TTL modulation optional
- Working Distance: 100–2000 mm (adjustable)
- Expected Lifetime: > 10,000 hours
